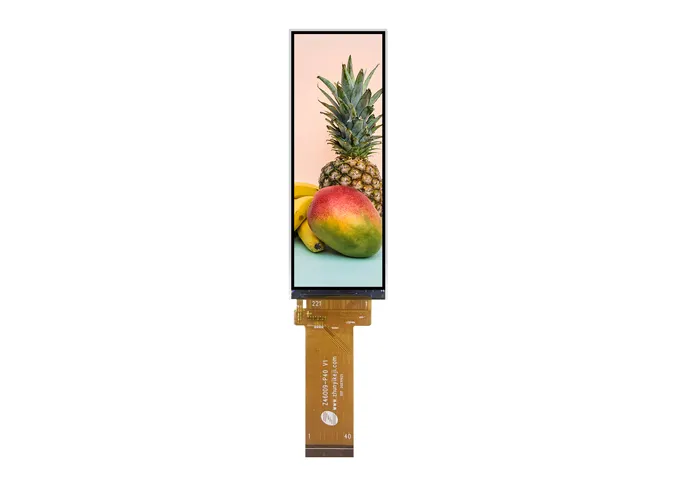

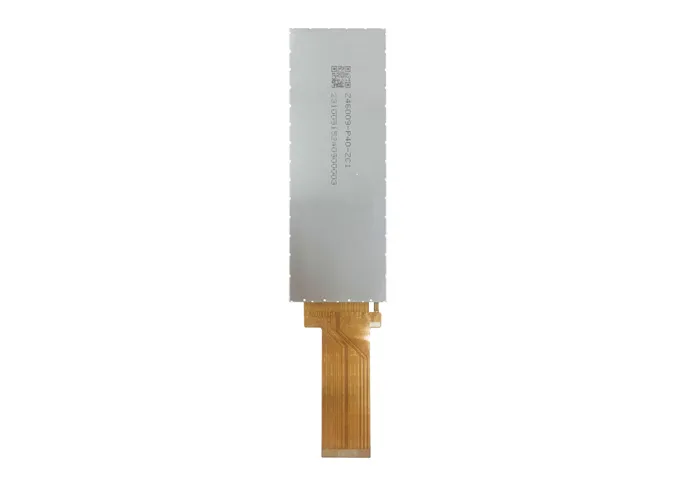

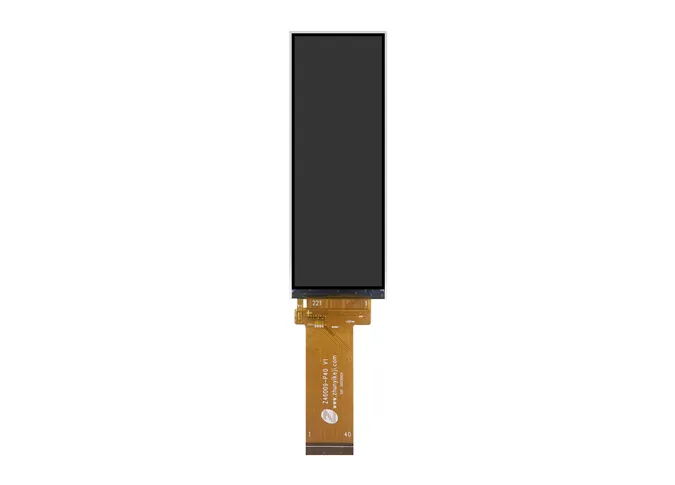

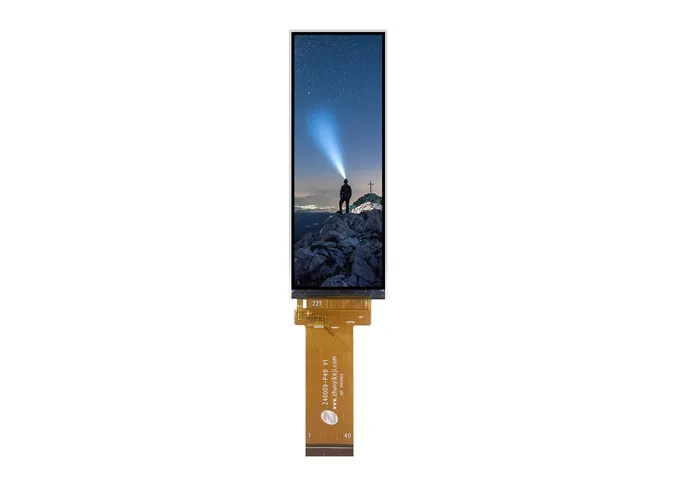

Z52011 5.19 Inch 416×1280 Stretched Bar LCD Display MIPI Interface JD9161Z Controller Screen

1

Display Size (Diagonal)

5.19

inch

2

Display Resolution

416(H） × RGB × 1280（V）

pixels

3

Pixel Pitch

---

um

4

LCD Module Dimension

(Without FPC）

44.8(W) × 132.2(H) × 2. 15 (T)

mm

5

Touch Display Dimension

(Without FPC）

---

mm

6

LCD Active Area

40.7472(H)  ×125.376 (V)

mm

7

View Direction (Gray Inversion)

FULL VIEW

-

8

LCM Driver IC

JD9161Z

-

9

Pixel Arrangement

RGB-Stripe

-

10

Display Mode

Normal Black

-

11

FPC Version

Z52011-P30 V1

-

12

TFT Display Interface

MIPI

-

13

TP Interface

---

-

14

PCAP Multi Touch

---

point

15

Touch Screen Report Rate

---

Hz

16

Operating Temperature

-30°C~ 85°C

-

17

Storage Temperature

-30°C~ 85°C

-

18

Backlight Arrangement

LED/5 Series 2 Parallel (10 lights in total)

-

19

Display    Luminance

Typ.: 330

nit

20

Weight

TBD

kg

1

LEDA

POWER SUPPLY- FOR BACKLIGHT ANODE

2

LED-K1

POWER SUPPLY- FOR BACKLIGHT CATHODE

3

LED-K2

POWER SUPPLY- FOR BACKLIGHT CATHODE

4

VCI

POWER SUPPLY

5

IOVCC

I/O    POWER SUPPLY

6

RESET

LCM    RESET    PIN

7

TE

Tearing    Effect    PIN

8

PWM

BL PWM output

9

GND

Ground

10

D0P

Positive MIPI differential data input

11

D0N

Negative MIPI differential data input

12

GND

Ground

13

D1P

Positive MIPI differential data inpu

14

D1N

Negative MIPI differential data inputt

15

GND

Ground

16

TCP

Positive MIPI differential CLOCK input

17

TCN

Negative MIPI differential CLOCK input

18

GND

Ground

19

D2P

Positive MIPI differential data input

20

D2N

Negative MIPI differential data input

21

GND

Ground

22

D3P

Positive MIPI differential data input

23

D3N

Negative MIPI differential data input

24

GND

Ground

25

TP-INT

Not use

26

TP-SDA

Not use

27

TP-SCL

Not use

28

TP-RESET

Not use

29

TP-VCI

Not use

30

GND

Ground

REST voltage should be consistent with IOVCC voltage, or there probably is black screen fault when power on.
