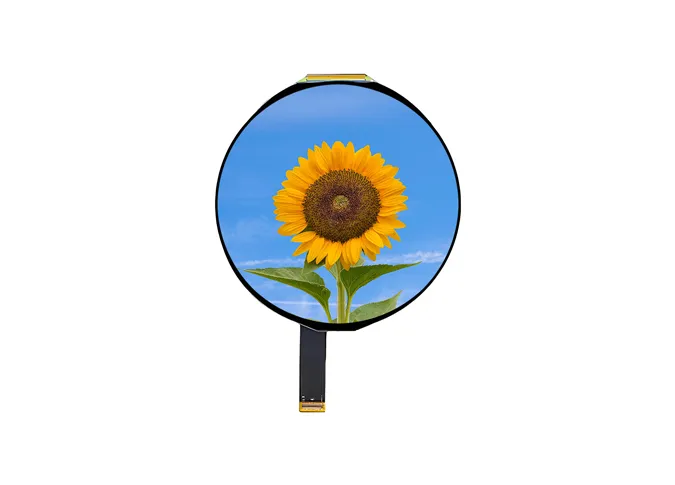

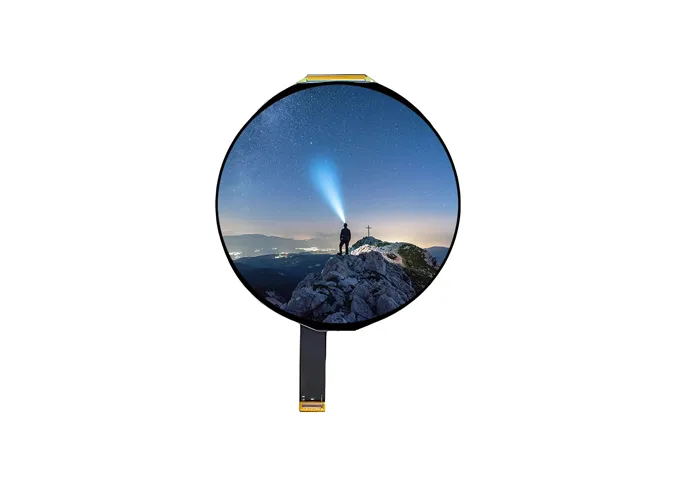

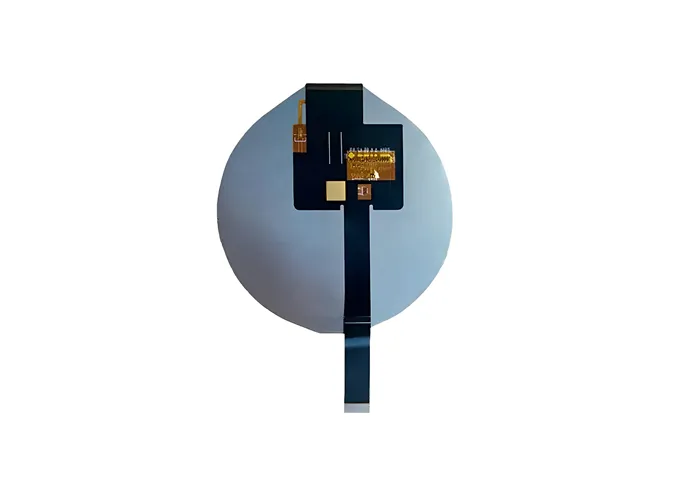

Z50006 High Brightness 5 Inch 1080×1080 Circular LCD Module MIPI Interface HX8399 Controller

  • Display Size: 5 inch

  • Resolution: 1080 × 1080 pixels

  • Display Shape: Circular

  • Display Type: TFT LCD

  • Interface: MIPI DSI

  • Driver IC: HX8399

  • Brightness: High brightness design

  • Color Depth: 16.7M colors

  • Viewing Angle: Wide viewing angle

  • Backlight: High-efficiency LED


Request A Quote

Overview of Z50006 High Brightness 5 Inch 1080×1080 Circular LCD Module MIPI Interface HX8399 Controller

1

1. Z50006 is a color active matrix thin film transistor (TFT) liquid crystal display (LCD). This 5 inch circular LCD module features a high-definition 1080×1080 resolution, delivering sharp image quality and excellent detail in a compact round form factor. Driven by the HX8399 controller and using a MIPI DSI interface, the display supports high-speed data transmission and stable performance. The high-brightness backlight ensures clear visibility under strong ambient light, making the module suitable for demanding industrial and professional applications. Its wide viewing angle and accurate color reproduction support modern circular UI designs and reliable long-term operation.

2

If you have special requirement,like driver IC,interface,FPC,touch panel,backlight etc, we can customize for you.

3

Our factory carry out ISO 9001:2015 and IATF16949: 2016 quality standard system strictly, all the lcd display passed ROHS, REACH Certification

4

The 5" circular LCD display is widely used on Industrial HMIs, medical devices, smart control panels, professional embedded systems,Luxury consumer electronics, digital dials, creative UI displays, modern instrumentation etc

General Specifications of Z50006 High Brightness 5 Inch 1080×1080 Circular LCD Module MIPI Interface HX8399 Controller


General Specifications


General   Information Items

Specification

UniSt

Note

Main Panel

Display area(AA)

127.008(H)*127.008(V)

mm

-

Driver element

TFT active matrix

-

-

Display colors

16.7M

colors

-

Number of pixels

1080(RGB)*1080

dots

-

TFT Pixel arrangement

RGB vertical stripe

-

-

Pixel pitch

0. 1176(H)*0. 1176(V)

mm

-

Viewing angle

ALL

o'clock

-

Controller IC

HX8399

-

-

LCM Interface

1/2/3/4-LANE MIPI

-

-

Display mode

Transmissive/Normally Black

-

-

Operating temperature

-20~+ 60

C

-

Storage temperature

-30~+75

C

-


Mechanical Information


Item

Min.

Typ.

Max.

Unit

Note


Module

size

Horizontal(H)


136.531


mm

-

Vertical(V)


132.208


mm

-

Depth(D)


1 98


mm

-

Weight


70


g

-




2.   Interface Definition Description


NO.

SYMBOL

DISCRIPTION

I/O

1

GND

Ground.

P

2

GND

Ground.

P

3

LAN2  P

_

Disp    MIPI    lane2+.

I

4

LEDK

LED cathode.

P

5

LAN2  N

_

Disp    MIPI    lane2-.

I

6

LEDK

LED cathode.

P

7.

GND

Ground.

P

8

GND

Ground.

P

9

LAN1  P

_

Disp    MIPI    Blane    1+.

I

10

LEDA

LED Anode.

P

11

LAN1  N

_

Disp    MIPI    lane    1-.

I

12

LEDA

LED Anode.

P

13

GND

Ground.

P

14

GND

Ground.

P

15

CLK  P

_

Disp    MIPICLK+.

I

16

ID  PIN2

_

ID     pu to1. 8V(LCM).     If not    used open.

P

17

CLK  N

_

Disp    MIPICLK-.

I

18

ID  PIN1

_

ID     pd to GND(LCM) .     If not     used open.

P

19

GND

Ground.

P

20

GND

Ground.

P

21

LAN0  P

_

Disp    MIPI    lane 0+.

I

22

IOVCC

Disp digital    power( 1.8V).

P

23

LAN0  N

_

Disp    MIPI    lane0-.

I

24

IOVCC

Disp digital    power( 1.8V).

P


25

GND

Ground.

P

26

GND

Ground.

P

27

LAN3  P

_

Disp    MIPI    lane 3+.

I

28

NC

NC


29

LAN3  N

_

Disp    MIPI    lane 3-.

I

30

VSN/VDD-

Display -5V analog     rail.

P

31

GND

Ground.

P

32

VSN/VDD-

Display -5V analog     rail.

P

33

NC

NC


34

NC

NC


35

NC

NC


36

VSP/VDD+

Disp +5V analog     rail.

P

37

GND

Ground.

P

38

VSP/VDD+

Disp +5V analog    rail     .

P

39

NC

NC


40

NC

NC


41

NC

NC


42

GND

Ground.

P

43

NC



44

LEDPWM

Backlight     pwm output,     If not     used open.

O

45

NC

NC


46

TE

Disp tearing effect out,      If not     used open.

O

47

GND

Ground.

P

48

RESET

Disp    reset.

I

49

GND

Ground.

P

50

GND

Ground.

P




Products
Contact Us

Zhunyi Technology pays attention to the quality and service. Welcome to visit us and join hands for a prosperous future.

Contact Info
Email Us
sales@zhunyikeji.com
Call us
+86-0755-2790-3035
Address
2nd, 3rd and 8th Floor, Dongshan plant, Huafeng First Science Park, Sanwei, Bao'an District, Shenzhen, China
Request A Quote

RELATED Round TFT LCD Display

Z40054 Sunlight Readable 4 Inch Round LCD Module 720x720 MIPI Interface 500 cd/m2 Z40054 Sunlight Readable 4 Inch Round LCD Module 720x720 MIPI Interface 500 cd/m2
Z18003 OEM Support 1.8 Inch Round LCD Module 360x360 SPI Interface with ST77916 Driver Z18003 OEM Support 1.8 Inch Round LCD Module 360x360 SPI Interface with ST77916 Driver
Z13005 SPI Interface 1.3 Inch Circular LCD Display Module 360x360 JD5858A Controller Z13005 SPI Interface 1.3 Inch Circular LCD Display Module 360x360 JD5858A Controller

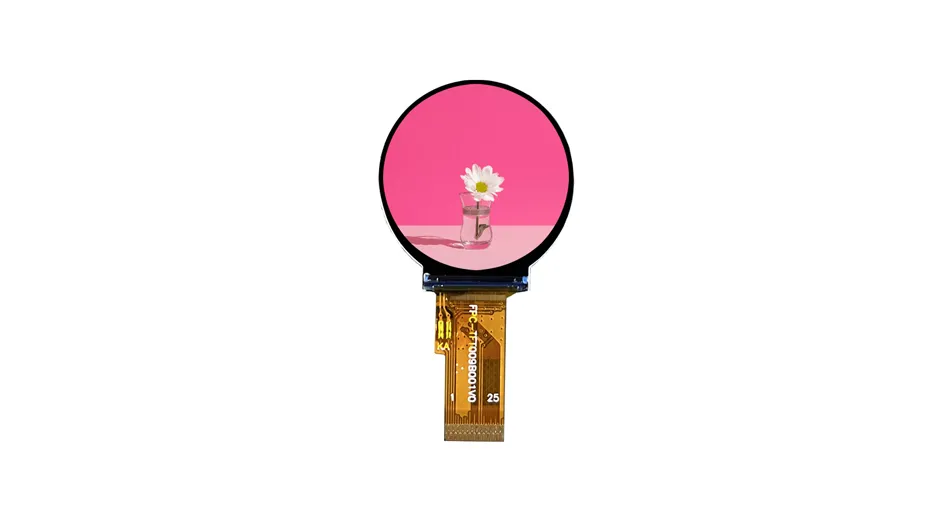

Z07101 Mini 0.71 inch Round TFT LCD Display 160×160 SPI MCU for Wearables IoT Device Z07101 Mini 0.71 inch Round TFT LCD Display 160×160 SPI MCU for Wearables IoT Device
