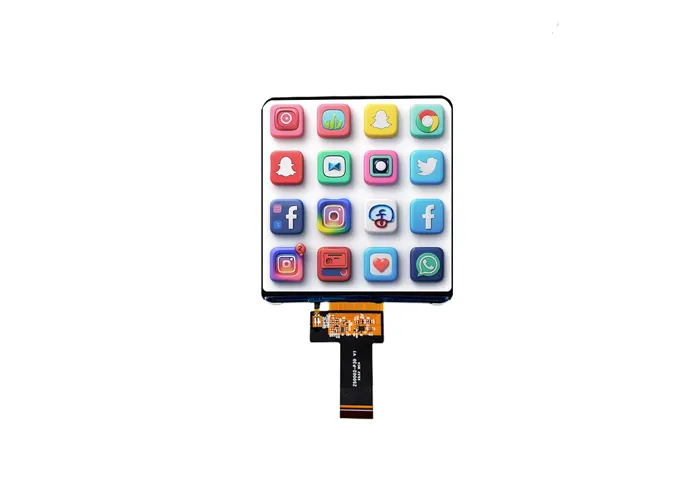

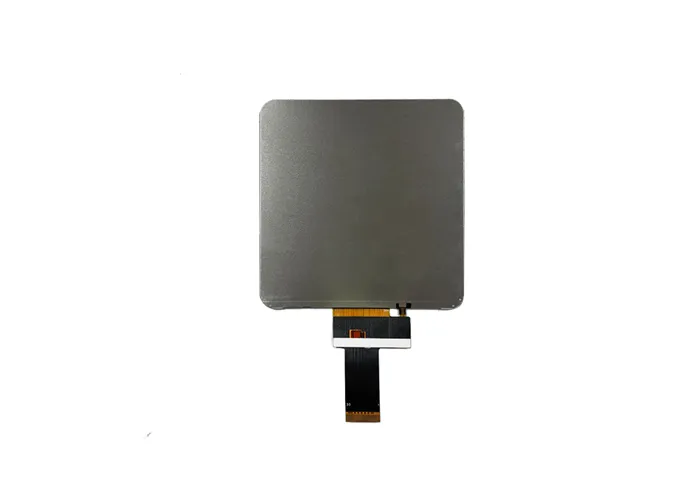

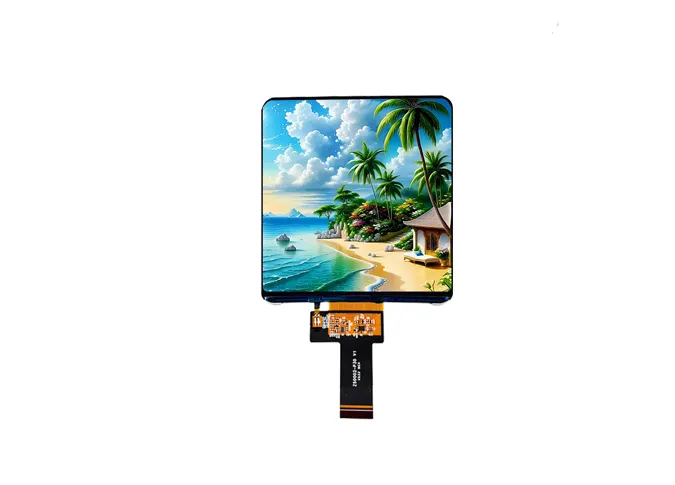

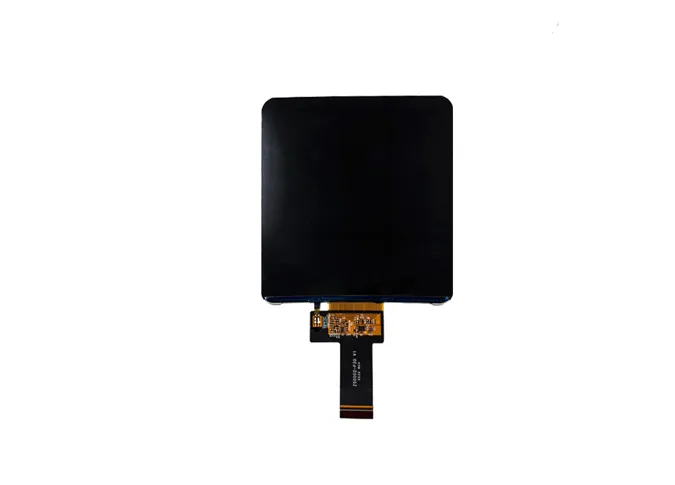

Z50004 New Design 5 inch square LCD Display 720x720 resolution MIPI DSI interface

1

Display Size (Diagonal)

5.08

inch

2

Display Resolution

720(H） × RGB × 720（V）

pixels

3

Pixel Pitch

126.9×126.9

um

4

LCD Module Dimension

(Without FPC）

93.67(W) × 96.87(H) × 2.15 (T)

mm

5

Touch Display Dimension

(Without FPC）

-

mm

6

LCD Active Area

91.37（W） ×91.37（H）

mm

7

View Direction (Gray Inversion)

FULL VIEW

-

8

LCM Driver IC

JD9365TX

-

9

Pixel Arrangement

RGB-Stripe

-

10

Display Mode

Normal Black

-

11

FPC Version

Z50004-P30 V1

-

12

TFT Display Interface

MIPI

-

13

TP Interface

I2C

-

14

PCAP Multi Touch

10

point

15

Touch Screen Report Rate

120

Hz

16

Operating Temperature

-30°C~ 85°C

-

17

Storage Temperature

-40°C~ 90°C

-

18

Backlight Arrangement

LED/5 Series 4 Parallel (20 lights in total)

-

19

Display  Luminance

Typ.: 450

nit

20

Weight

TBD

kg

1

LEDA

POWER SUPPLY- FOR BACKLIGHT ANODE

2

LED-K1

POWER SUPPLY- FOR BACKLIGHT CATHODE

3

LED-K2

POWER SUPPLY- FOR BACKLIGHT CATHODE

4

VCI

POWER SUPPLY    (2.8V)

5

IOVCC

I/O  POWER SUPPLY （1.8V）

6

RESET

LCM  RESET  PIN

7

TE

Tearing  Effect  PIN

8

PWM

BL PWM output

9

GND

Ground

10

D0P

Positive MIPI differential data input

11

D0N

Negative MIPI differential data input

12

GND

Ground

13

D1P

Positive MIPI differential data inpu

14

D1N

Negative MIPI differential data inputt

15

GND

Ground

16

TCP

Positive MIPI differential CLOCK input

17

TCN

Negative MIPI differential CLOCK input

18

GND

Ground

19

D2P

Positive MIPI differential data input

20

D2N

Negative MIPI differential data input

21

GND

Ground

22

D3P

Positive MIPI differential data input

23

D3N

Negative MIPI differential data input

24

GND

Ground

25

TP-INT

TP  Interrupt  PIN(1.8V)

26

TP-SDA

TP  I2C data (SDA) data input (1.8V)

27

TP-SCL

TP  I2C clock (SCL) clock (1.8V)

28

TP-RESET

TP  Reset  PIN(1.8V)

29

TP-VCI

NC

30

GND

Ground
