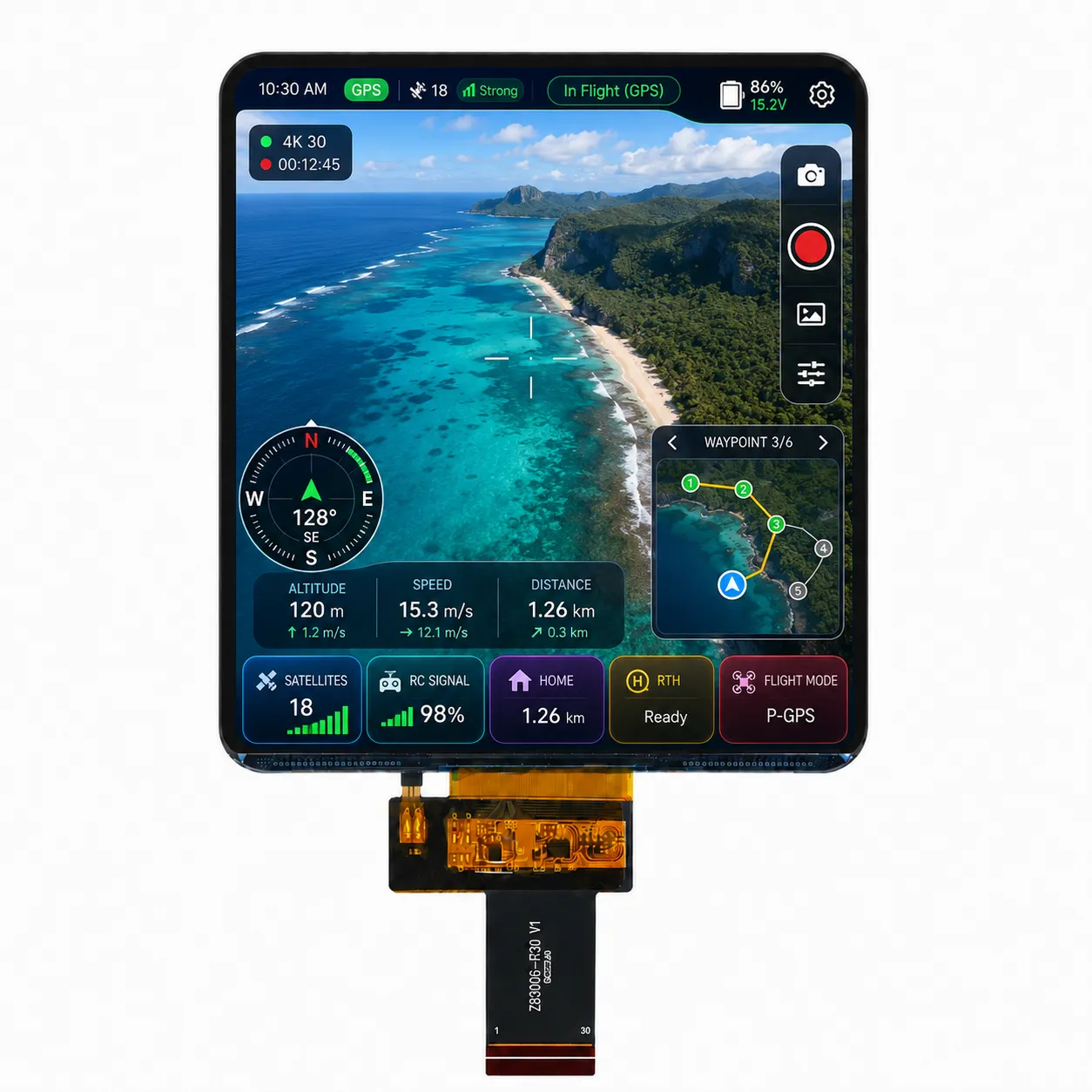

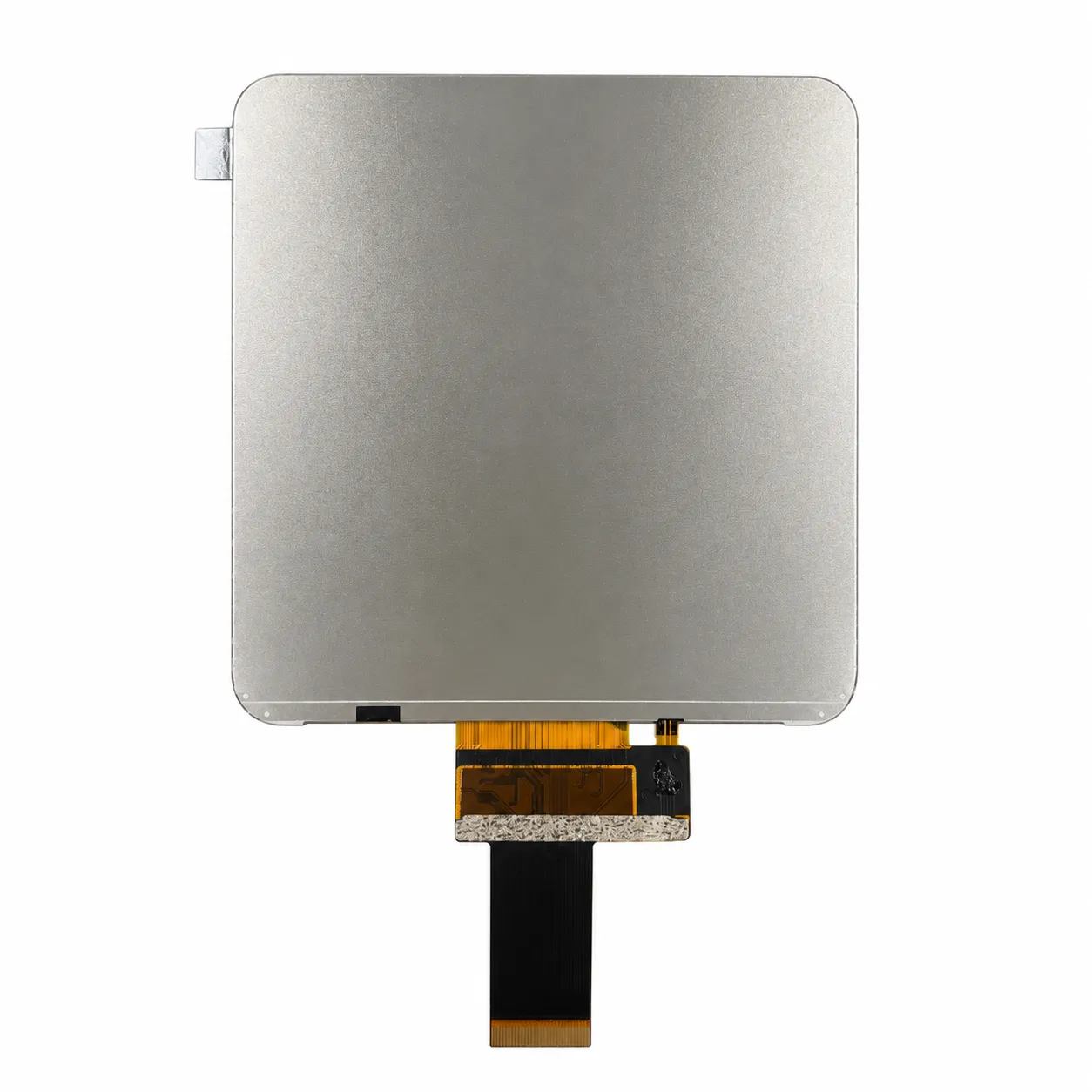

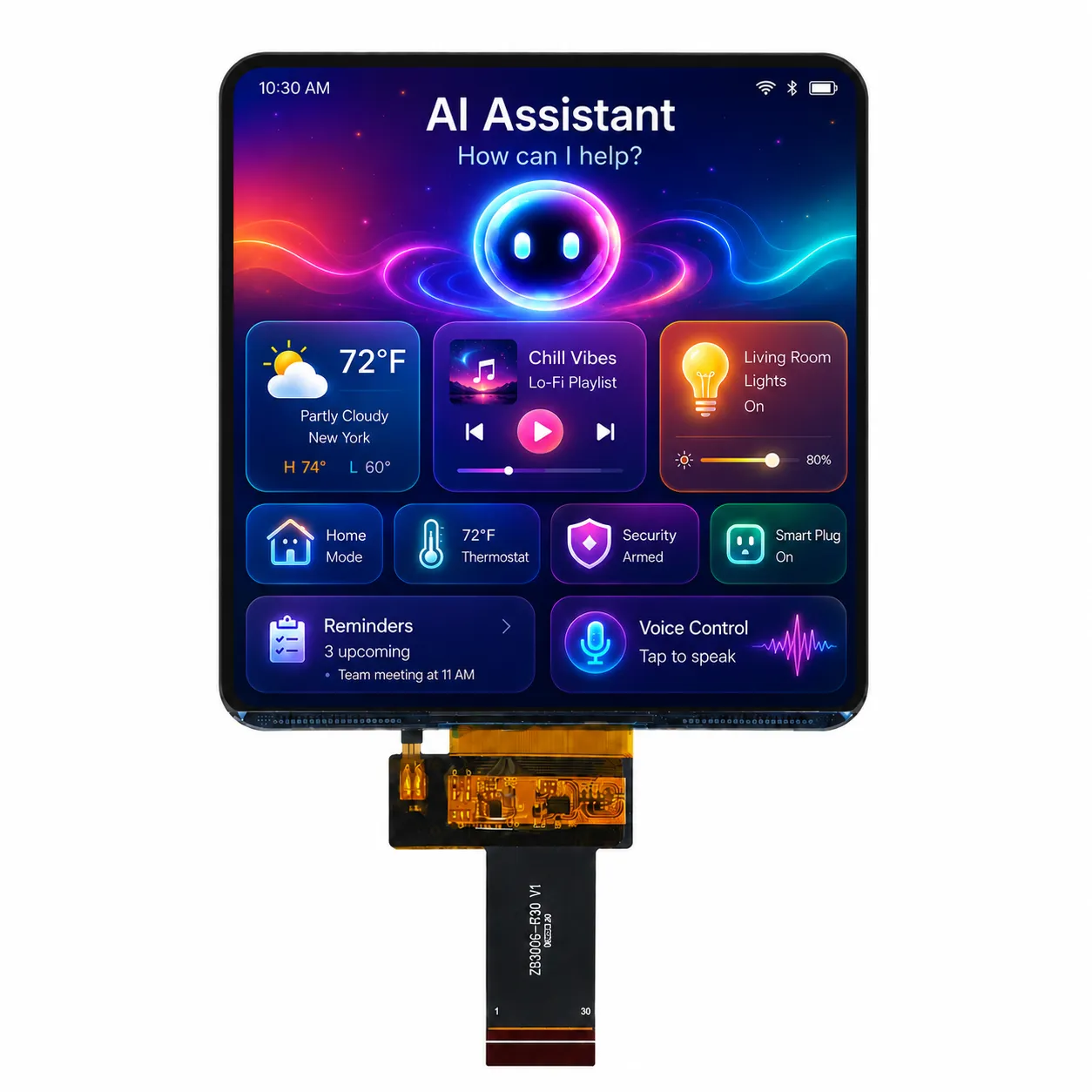

Z50001 Slim Touch Module 5 inch Incell LCD Display 720x720 Square Shape MIPI I2C Interface Rounded Corner

  • Size:5.0" diagonal, square shape

  • Resolution: 720x720,1:1 aspect ratio

  • Interface: MIPI DSI (display), I2C (touch)

  • View angle:IPS,full viewing

  • Touch Panel: Integrated in-cell capacitive touch–no additional layer

  • Driver IC:JD9365TN, high integration for space-limited devices

  • Advantages: Integrated touch, slim profile, excellent image clarity

  • Custom Services: FPC design, brightness adjustment, cover glass,interface, logo silk print

  • ISO9001,IATF16949,ROHS,REACH certified factory


Request A Quote
z50075 2
z50075 2
z50075 3

Overview of Z50001 Slim Touch Module 5 inch Incell LCD Display 720x720 Square Shape MIPI I2C Interface Rounded Corner

1

Z50001 is a color active matrix thin film transistor (TFT) liquid crystal display (LCD).A stylish square display solution for your next-gen product. This 5” TFT LCD features a vivid 720x720 resolution and in-cell touch for a seamless, ultra-thin design. Its rounded corners make it visually perfect for circular or bezel-less interfaces.

2

This 5 inch square incell display compatible with Qualcomm Snapdragon series,NXP i.MX 8M Mini / Nano,Rockchip RK3566/RK3399,MediaTek MT8516,STM32MP157 / MP1,Raspberry Pi Compute Module 4,Custom Linux/Android embedded boards etc

3

This 5 inch square incell module is perfect for smart thermostats,smart mirrors,audio players,control knobs,streaming device touchpads,Retail scanner,Smart vending,facial recognition,biometric scanners,smart locks,wine fridges, espresso machines,smart rower controllers,digital information tiles and other applications.

4

If you have special requirement, like interface(pin definition), FPC, cover glass, backlight(brightness),logo, silk print etc, we can customize for you.Our factory carry out ISO 9001: 2015 and IATF16949: 2016 quality standard system strictly, all the LCD display passed ROHS, REACH Certification.

General Specifications of Z50001 Slim Touch Module 5 inch Incell LCD Display 720x720 Square Shape MIPI I2C Interface Rounded Corner


No.ItemSpecificationUnit
1Display Size (Diagonal)5.08inch
2Display Resolution720(H） × RGB × 720（V）pixels
3Pixel Pitch87.5(H） × 87.5（V）
um

LCD Module Dimension

4(Without FPC）93.67 (W) ×96.72 (H) ×2. 15 (T)mm

Touch Display Dimension

5(Without FPC）-mm
6LCD Active Area91.37（W） ×91.37（H）mm
7View Direction (Gray Inversion)FULL VIEW
-
8LCM Driver ICJD9365TN
-
9Pixel ArrangementRGB-Stripe
-
10Display ModeNormal Black
-
11FPC VersionZ50001-P30 V1
-
12TFT Display InterfaceMIPI
-
13TP Interface

--
14PCAP Multi Touch
point
-
15Touch Screen Report Rate
Hz
-
16Operating Temperature-20°C~ 70°C
-
17Storage Temperature-30°C~ 80°C
-
18Backlight ArrangementLED/5 Series 4 Parallel (20 lights in total)
-
19Display    LuminanceTyp: 350nit
20Weight
g
--




Interface Definition Description of Z50001 Slim Touch Module 5 inch Incell LCD Display 720x720 Square Shape MIPI I2C Interface Rounded Corner


PIN NO.PIN SYMBOLFUNCTION DESC.
1LEDAPOWER SUPPLY- FOR BACKLIGHT ANODE
2LEDKPOWER SUPPLY- FOR BACKLIGHT CATHODE
3LEDKPOWER SUPPLY- FOR BACKLIGHT CATHODE
4VCCPOWER SUPPLY(2.8V)
5IOVCCI/O    POWER SUPPLY(1.8V)
6RESETLCM RESET PIN
7TETearing Effect PIN
8PWMBLPWM output
9GNDGround
10D0PPositive MIPI differential data input
11D0NNegative MIPI differential data input
12GNDGround
13D1PPositive MIPI differential data input
14D1NNegative MIPI differential data input
15GNDGround
16CLKPPositive MIPI differential CLOCK input
17CLKNNegative MIPI differential CLOCK input
18GNDGround
19D2PPositive MIPI differential data input
20D2NNegative MIPI differential data input
21GNDGround
22D3PPositive MIPI differential data input
23D3NNegative MIPI differential data input
24GNDGround
25TP_INTTP    Interrupt    PIN
26TP_SDATP I2C data (SDA) data input
27TP_SCLTP I2C CLOCK (SCL) input
28TP_RESETTP    Reset    PIN
29TP_VCITP_POWER SUPPLY(2.8V)
30LCM_IDLCM    ID    PIN
RESET voltage should be consistent with VDDI voltage, or there probably is black screen fault when power on.
