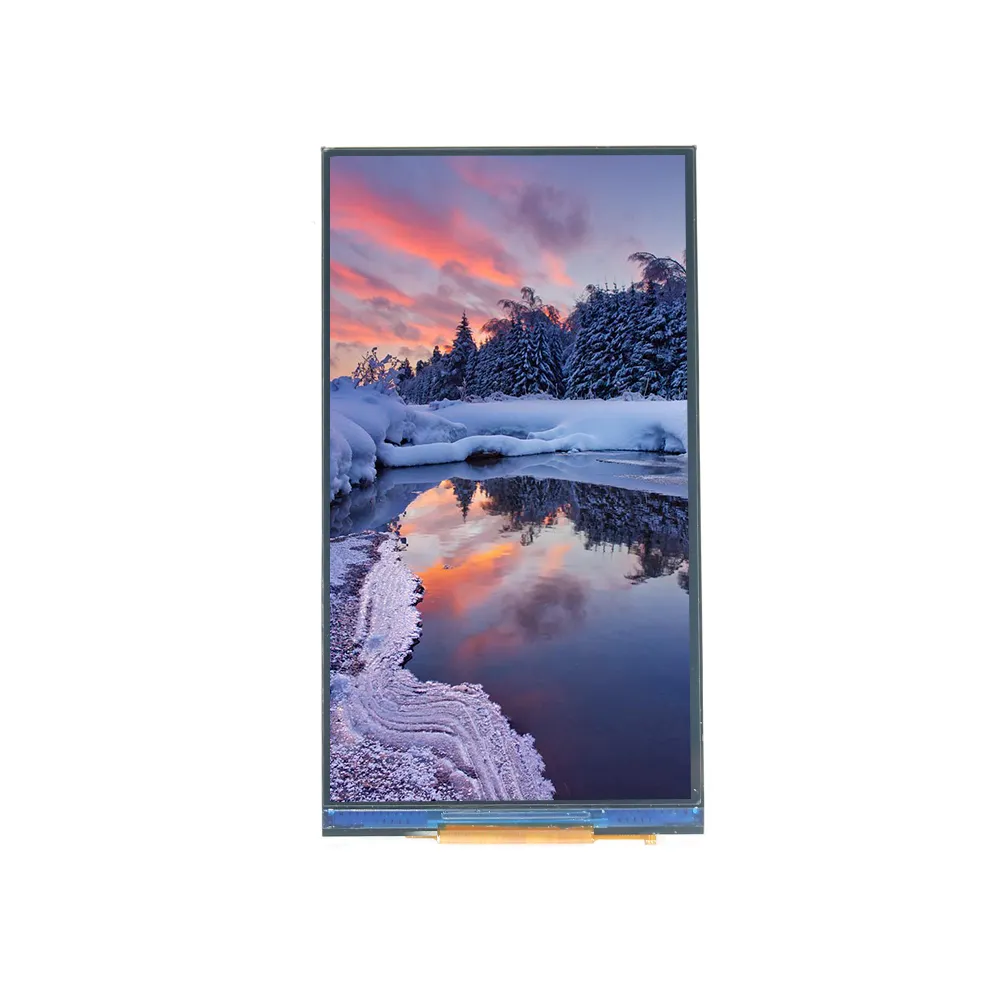

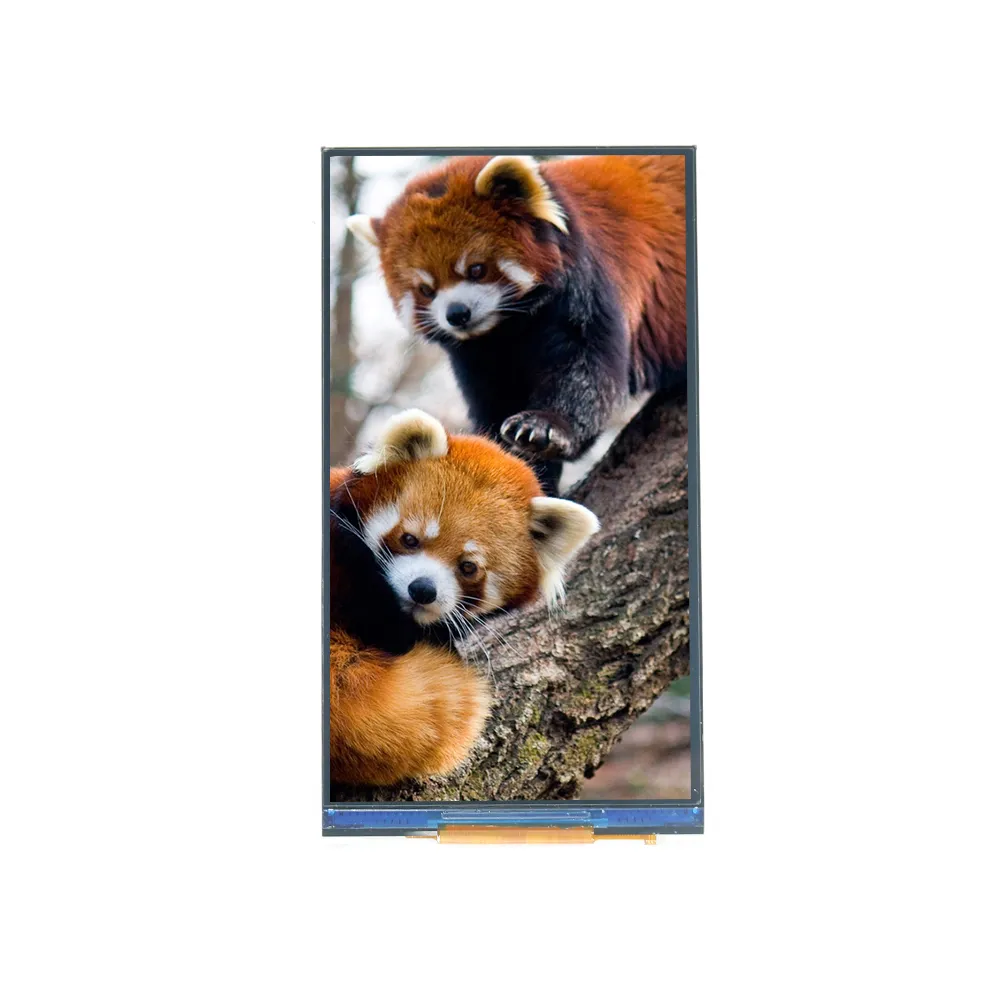

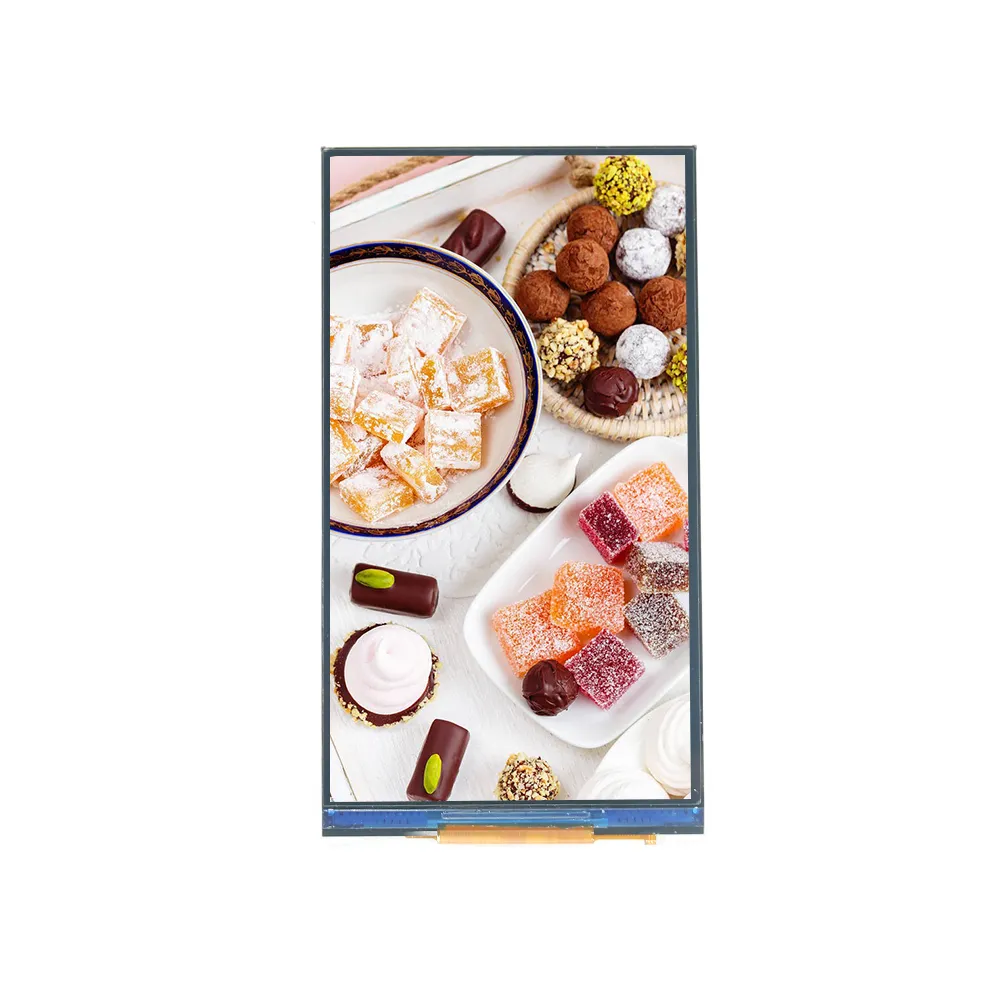

Z49459 5 inch Capacitive Touch Screen 480x854 Incell LCD Panel MIPI DSI I2C Interface 16:9 Aspect Ratio

  • Size:5.0" diagonal, widescreen

  • Resolution: 480x854,16:9 aspect ratio

  • Interface: MIPI DSI (display), I2C (touch)

  • View angle:IPS,full viewing

  • Touch Panel: Integrated in-cell capacitive touch – no additional layer

  • Advantages: Integrated touch, slim profile, excellent image clarity

  • Custom Services: FPC design, brightness adjustment, cover glass,interface, logo silk print

  • ISO9001,IATF16949,ROHS,REACH certified factory


Request A Quote

Overview of Z49459 5 inch Capacitive Touch Screen 480x854 Incell LCD Panel MIPI DSI I2C Interface 16:9 Aspect Ratio

1

Z49459 is a color active matrix thin film transistor (TFT) liquid crystal display (LCD).This 5-inch TFT LCD panel integrates capacitive touch into the display layer using in-cell technology for a slimmer profile and improved optical clarity. With a resolution of 480x854 and MIPI DSI video interface.

2

This 5 inch incell LCD compatible with Qualcomm Snapdragon SoCs,ESP32-S3,MTK IoT chips,Raspberry Pi CM4,NXP i.MX 6ULL/8M Mini,Allwinner A-series boards,Rockchip RK3568/RK3326 etc.

3

 This 5 inch incell touch screen is perfect for HVAC controllers,Wi-Fi-enabled wall panels,smart ovens, coffee machines,smart speaker,smart media players,ticket scanners, POS terminals,Medical screening devices,digital signage,smart parcel station,Video doorbell, self-ordering screen,HMI, electric scooter and other applications.

4

If you have special requirement, like interface(pin definition), FPC, cover glass, backlight(brightness) etc, we can customize for you.Our factory carry out ISO 9001: 2015 and IATF16949: 2016 quality standard system strictly, all the LCD display passed ROHS, REACH Certification.

General Specifications of Z49459 5 inch Capacitive Touch Screen 480x854 Incell LCD Panel MIPI DSI I2C Interface 16:9 Aspect Ratio


No.ItemSpecificationUnit
1Display Size (Diagonal)5inch
2Display Resolution720(H）× RGB × 1280（V）pixels
3Pixel Pitch85.05(H）× 85.05（V）um
4CTP Outline Dimension83.59 (W) ×135.00 (H) ×7.05(T)mm
(Without FPC）
5LCD Outline Dimension63.20 (W) ×114.80(H) × 0.8 (T)mm
6LCD Active Area61.24（W）×108.86（H）mm
7View Direction (Gray Inversion)FULL VIEW-
8Driver ICFL7707N-
9Pixel ArrangementRGB-Stripe-
10Display ModeNormal Black-
11Pixel driving Elementa-Si TFT-
12LCD TransmittanceTyp.: 3.7%-
13LCD Contrast RatioTyp.: 1200-
14FPC VersionZ49433-K10H V3-
15InterfaceMIPI-
16Operating Temperature-10°C~ 60°C-
17Storage Temperature-20°C~ 70°C-
18Backlight ArrangementLED/6 Series 2 Parallel (12 lights in total)-
19Luminance500 mincd/m2




Interface Definition Description of Z49459 5 inch Capacitive Touch Screen 480x854 Incell LCD Panel MIPI DSI I2C Interface 16:9 Aspect Ratio


PIN NO.PIN SYMBOLFUNCTION DESC.
1月2日LEDAPower supply-for backlight anode
3VLCM3V3Power supply(3.3V)
4VIOLCM1V8I/O power supply(1.8V)
5REST(LCM)LCM reset PIN
6DSI_TETearing effect PIN
7GNDGround
8MIPICPPositive MIPI differential CLOCK input
9MIPICNNegative MIPI differential CLOCK input
10GNDGround
11MIPI0PPositive MIPI differential data input
12MIPI0NNegative MIPI differential data input
13GNDGround
14MIPI1PPositive MIPI differential data input
15MIPI1NNegative MIPI differential data input
16GNDGround
17MIPI2PPositive MIPI differential data input
18MIPI2NNegative MIPI differential data input
19GNDGround
20MIPI3PPositive MIPI differential data input
21MIPI3NNegative MIPI differential data input
22GNDGround
23INT(TP)TP interrupt PIN(1.8V)
24LCM_EXTS32EXTS32
25SDA(TP)TP I2C data(SDA)data input MOSI(1.8V)
26SCL(TP)TP I2C clock(SCL)clock SCLK(1.8V)
27LCM_EXTS23EXTS23
28REST(TP)TP reset(1.8V)
29VDD3V3(TP)TP power supply(3.3V)
30IDLCM ID PIN
31-33GNDGround
34-36LEDKPower supply-for backlight cathode
RESET voltage should be consistent with VDDI voltage, or there probably is black screen fault when power on.
