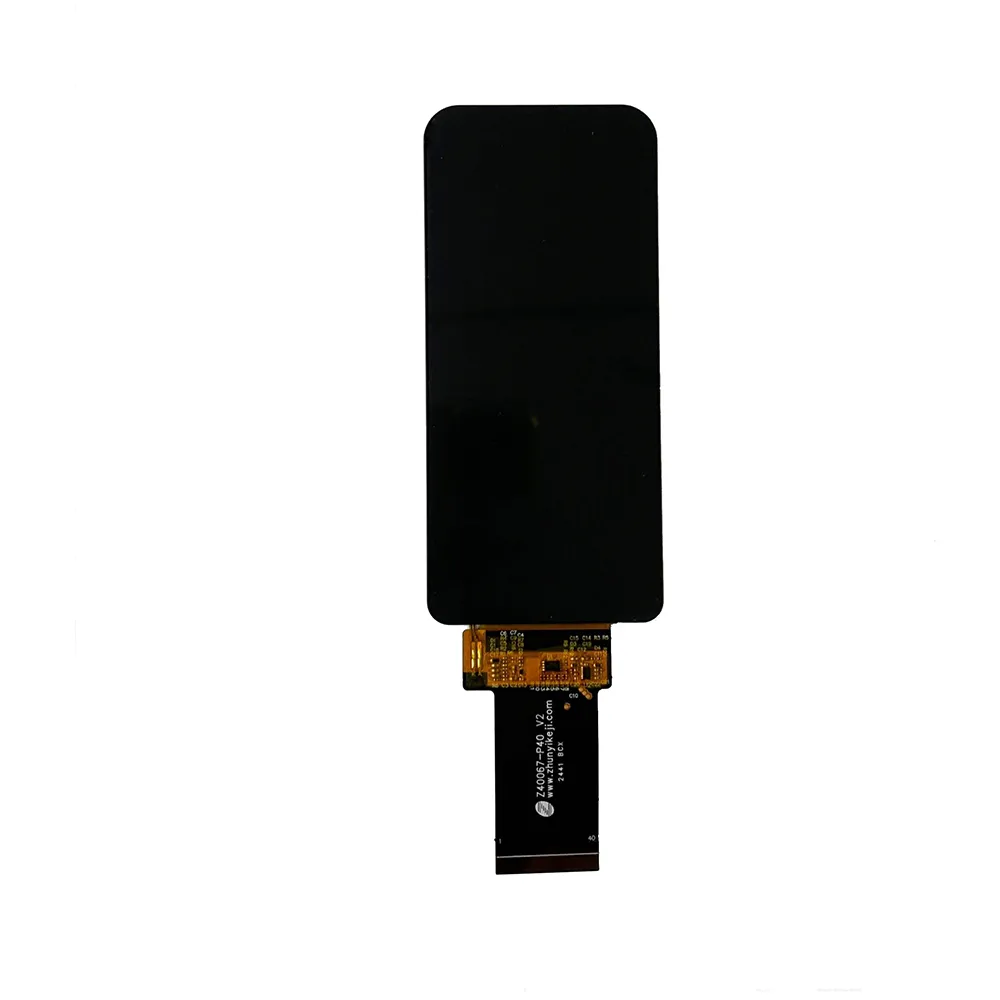

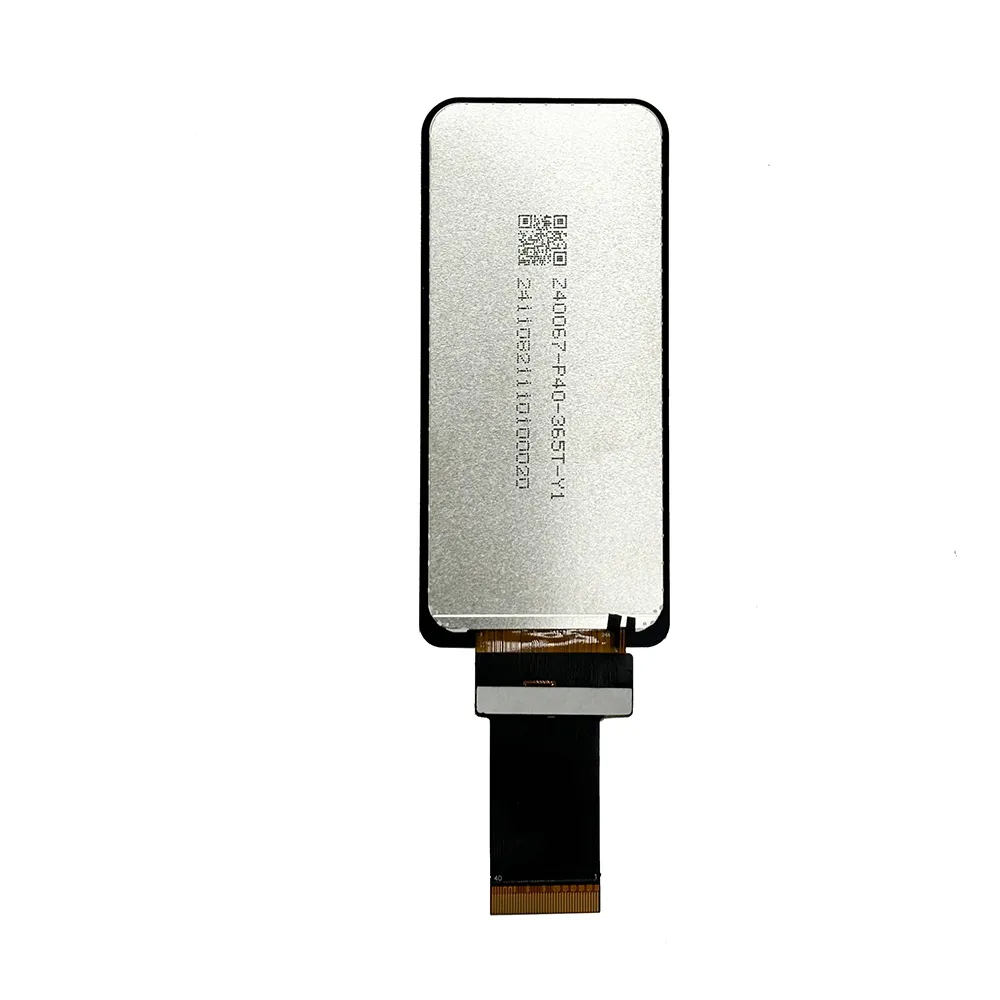

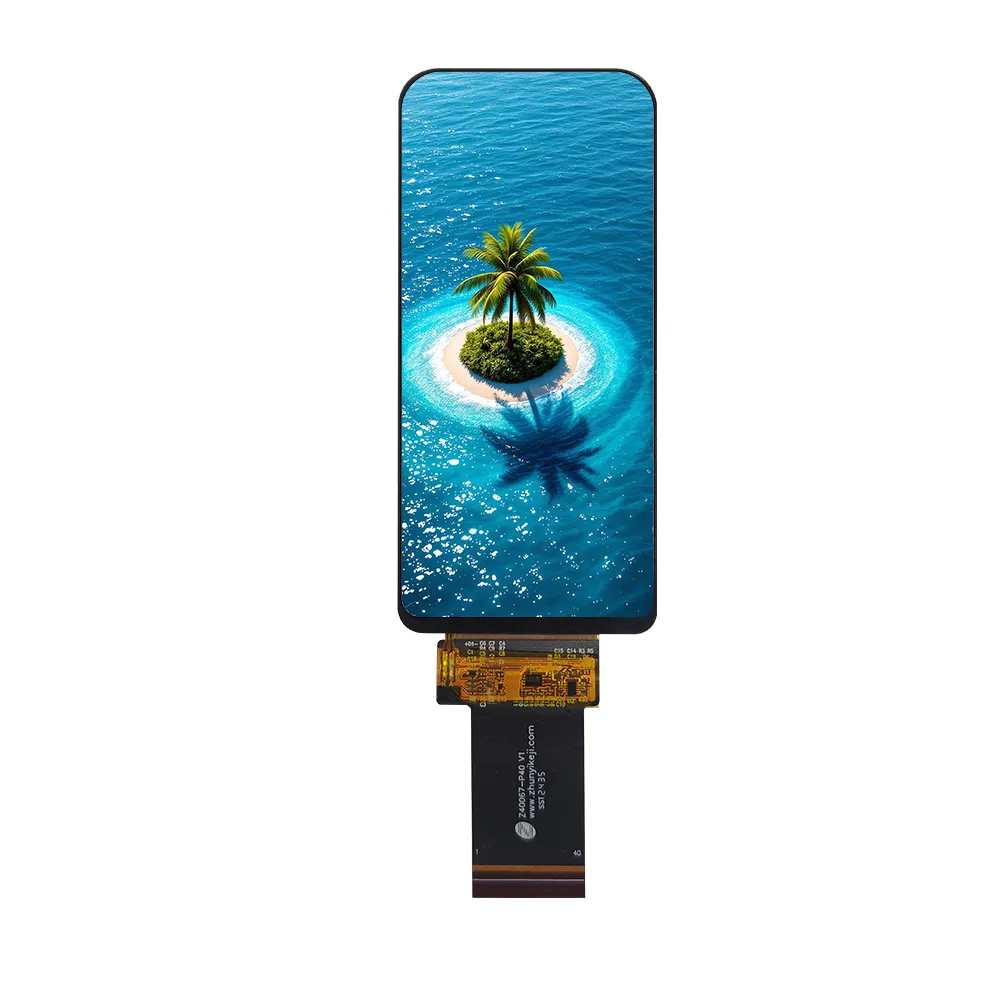

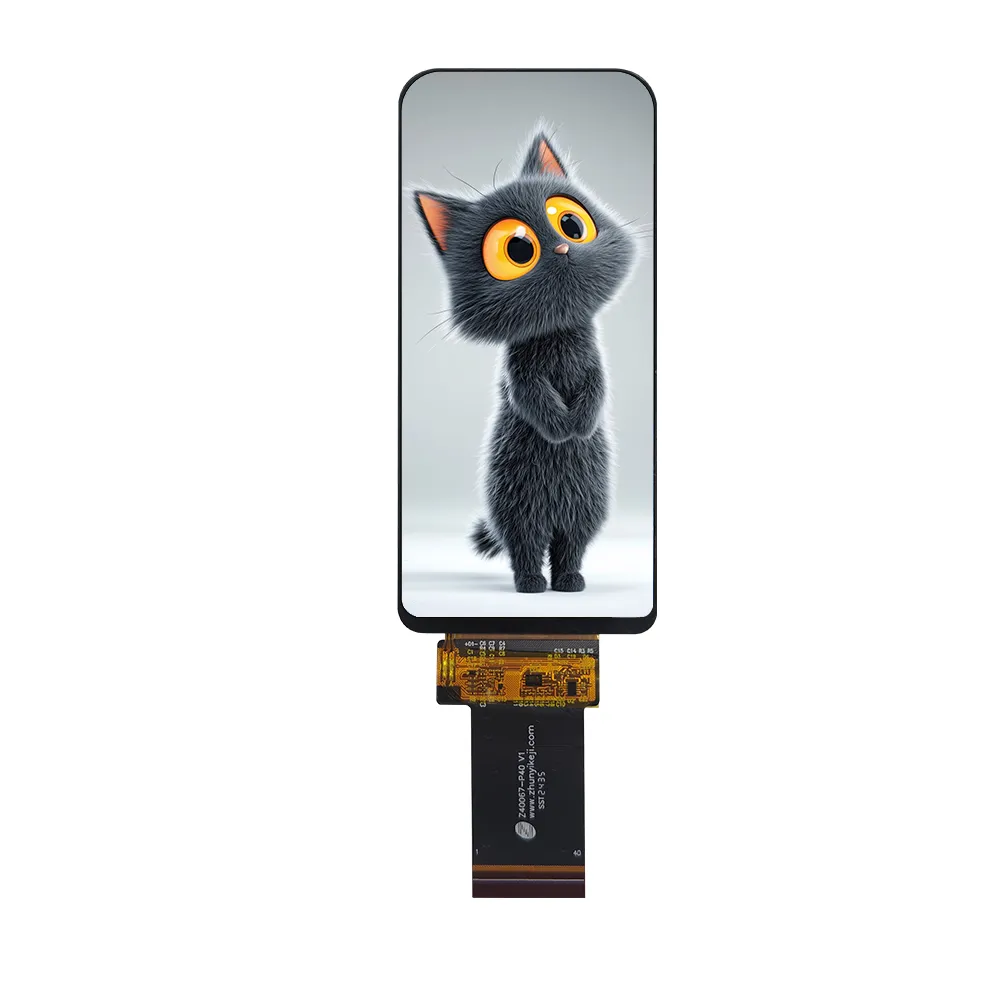

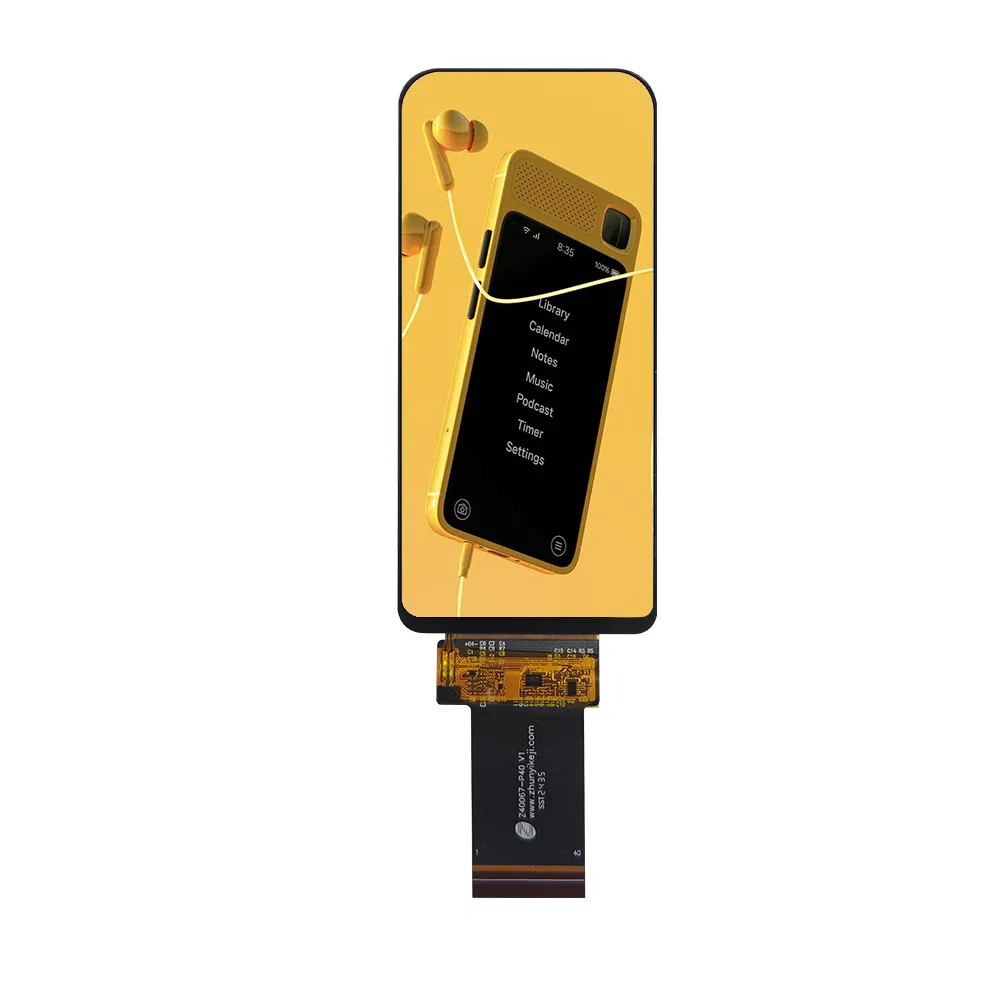

Z40083 Intergrated Touch Screen 4.1 inch 480x1080 Incell TFT LCD Module JD9365TN Controller MIPI DSI I2C Interface

  • Size:4.1" diagonal, portrait orientation

  • Resolution: 480x1080,9:2 aspect ratio

  • Interface:MIPI DSI for display; I²C for touch

  • View angle:IPS,full viewing

  • Driver IC:JD9365TN – supports rich color rendering and touch stability

  • Touch Panel: Integrated in-cell capacitive touch – no additional layer

  • Advantages: Integrated touch, slim profile, excellent image clarity

  • Custom Services: FPC design, brightness adjustment, cover glass,interface, logo silk print

  • ISO9001,IATF16949,ROHS,REACH certified factory


Request A Quote
6
6
4
5
2
1

Overview of Z40083 Intergrated Touch Screen 4.1 inch 480x1080 Incell TFT LCD Module JD9365TN Controller MIPI DSI I2C Interface

1

Z40083 is a color active matrix thin film transistor (TFT) liquid crystal display (LCD).This ultra-slim 4.1" TFT LCD module features an in-cell touch panel and high vertical resolution (480×1080), making it ideal for narrow UI environments. The JD9365TN IC ensures fast refresh and consistent performance across temperature ranges. Supporting MIPI video + I2C touch interfaces.

2

This 4.1 inch incell touch display is perfect for POS mini towers, smart vending machines,wall-mounted smart thermostats, lighting controls, elevator status panel,handheld medical devices,exercise equipment, hand-held diagnostic tools, modern kitchen,bathroom appliances, electric vehicle,smart door Lock,scooter dashboards, QR scanning and other devices

3

This 4.1 inch incell LCD module compatible with MediaTek MT6762/MT8167/MT8695 platforms,Rockchip RK3566/RK3588M,Qualcomm Snapdragon 450/660 SoMs,NXP i.MX 8M Mini / i.MX 7 series,Custom Android/Linux SBCs,Raspberry Pi CM4 with MIPI DSI bridge etc.

4

If you have special requirement, like interface(pin definition), FPC, cover glass, backlight(brightness) etc, we can customize for you.Our factory carry out ISO 9001: 2015 and IATF16949: 2016 quality standard system strictly, all the LCD display passed ROHS, REACH Certification.

General Specifications of Z40083 Intergrated Touch Screen 4.1 inch 480x1080 Incell TFT LCD Module JD9365TN Controller MIPI DSI I2C Interface


No.ItemSpecificationUnit
1Display Size (Diagonal)4. 1inch
2Display Resolution480(H） × RGB × 1080（V）pixels
3Pixel Pitch87.5(H） × 87.5（V）
um

LCD Module Dimension

4(Without FPC）44.1 (W) ×99.45 (H) ×2.06 (T)mm

Touch Display Dimension

5(Without FPC）47. 1 (W) ×103.9 (H) ×2.94 (T)mm
6LCD Active Area42.0（W） ×94.5（H）mm
7View Direction (Gray Inversion)FULL VIEW
-
8LCM Driver ICJD9365TN
-
9Pixel ArrangementRGB-Stripe
-
10Display ModeNormal Black
-
11FPC VersionZ40083-P30 V1
-
12TFT Display InterfaceMIPI
-
13TP InterfaceI2C
-
14PCAP Multi Touch-10point
15Touch Screen Report Rate-120Hz
16Operating Temperature-20°C~ 80°C
-
17Storage Temperature-30°C~ 80°C
-
18Backlight ArrangementLED/5 Series 2 Parallel (10 lights in total)
-
19Display    LuminanceTyp: ---nit
20Weight
g
--




Interface Definition Description of Z40083 Intergrated Touch Screen 4.1 inch 480x1080 Incell TFT LCD Module JD9365TN Controller MIPI DSI I2C Interface


PIN NO.PIN SYMBOLFUNCTION DESC.
1LEDAPOWER SUPPLY- FOR BACKLIGHT ANODE
2LEDKPOWER SUPPLY- FOR BACKLIGHT CATHODE
3LEDKPOWER SUPPLY- FOR BACKLIGHT CATHODE
4VCCPOWER SUPPLY(2.8V)
5IOVCCI/O    POWER SUPPLY(1.8V)
6RESETLCM RESET PIN
7TETearing Effect PIN
8PWMBLPWM output
9GNDGround
10D0PPositive MIPI differential data input
11D0NNegative MIPI differential data input
12GNDGround
13D1PPositive MIPI differential data input
14D1NNegative MIPI differential data input
15GNDGround
16CLKPPositive MIPI differential CLOCK input
17CLKNNegative MIPI differential CLOCK input
18GNDGround
19D2PPositive MIPI differential data input
20D2NNegative MIPI differential data input
21GNDGround
22D3PPositive MIPI differential data input
23D3NNegative MIPI differential data input
24GNDGround
25TP_INTTP    Interrupt    PIN
26TP_SDATP I2C data (SDA) data input
27TP_SCLTP I2C CLOCK (SCL) input
28TP_RESETTP    Reset    PIN
29TP_VCITP_POWER SUPPLY(2.8V)
30LCM_IDLCM    ID    PIN
RESET voltage should be consistent with VDDI voltage, or there probably is black screen fault when power on.
