Z35026 High Resolution 3.5 inch 640×960 TFT LCD Screen MIPI Interface FL7707N Driver

  • Size:3.5 inch, vertical layout

  • Resolution:640×960 high resolution

  • Interface: High-speed MIPI DSI

  • View angle:IPS full-view

  • Driver IC: FL7707N

  • Custom Services: Touch panel , FPC, brightness ,backlight, cover glass, logo etc

  • ISO9001,IATF16949,ROHS,REACH certified factory

Request A Quote

Overview of Z35026 High Resolution 3.5 inch 640×960 TFT LCD Screen MIPI Interface FL7707N Driver

1

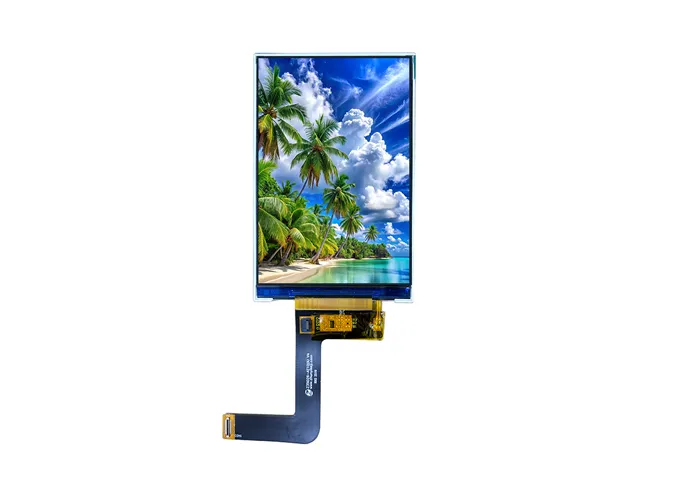

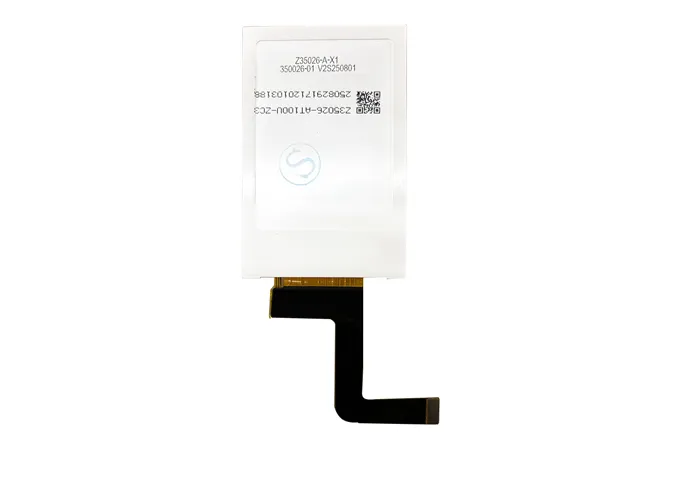

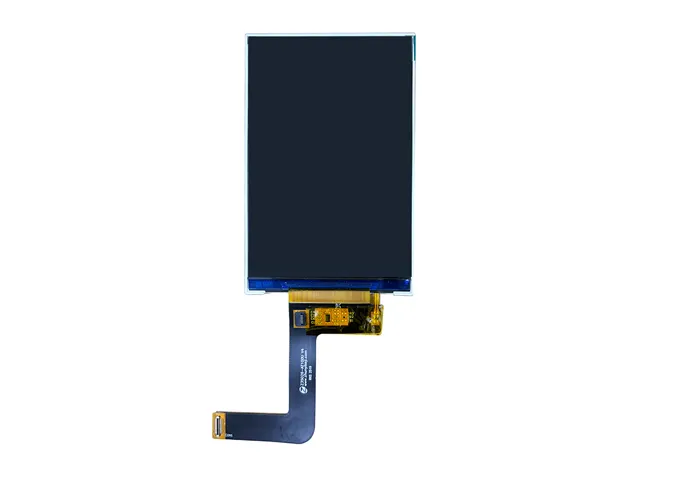

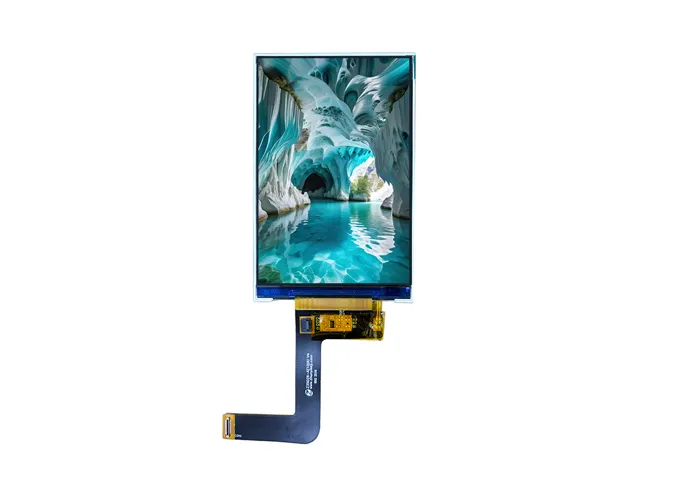

Z350262 is a color active matrix thin film transistor (TFT) liquid crystal display (LCD) .This 3.5 inch TFT LCD display features a high-resolution 640×960 pixel panel and a MIPI DSI interface, delivering sharp image quality and smooth data transmission. Driven by the FL7707N controller, the display ensures stable performance, fast refresh rates, and excellent color consistency. Its compact size combined with high pixel density.


2

If you have special requirement,like driver IC,interface,FPC,touch panel,backlight etc, we can also customize for you.


3

Our factory carry out ISO 9001:2015 and IATF16949: 2016 quality standard system strictly, all the lcd display passed ROHS, REACH Certification

4

The 3.5" LCD Screen is widely used on Industrial HMIs, medical equipment, smart handheld devices, diagnostic tools, customized embedded products ect

General Specifications of Z35026 High Resolution 3.5 inch 640×960 TFT LCD Screen MIPI Interface FL7707N Driver


1. General Specifications

No.

Item

Specification

Unit

1

Display Size (Diagonal)

3.54

inch

2

Display Resolution

640（H）× RGB × 960（V）

pixels

3

Pixel Pitch

26(H)×3×78(V)

um

4

LCD Module Dimension

(Without FPC）

54.22（W）×83.58（H）×2.2（T）

mm

5

Touch Display Dimension

(Without FPC）

69.7（W）×101.96（H）×6.63（T）

mm

6

LCD Active Area

49.92（W）×74.88（H）

mm

7

View Direction (Gray Inversion)

FULL VIEW

-

8

LCM Driver IC

FL7707N-G5-D

-

9

Pixel Arrangement

RGB-Stripe

-

10

Display Mode

Normal Black

-

11

FPC Version

Z35026-AT100U V4

-

12

TFT Display Interface

MIPI

-

13

TP Interface

I2C

-

14

PCAP Multi Touch

(10)

point

15

Touch Screen Report Rate

(120)

Hz

16

Operating Temperature

-30°C~ 70°C

-

17

Storage Temperature

-30°C~ 80°C

-

18

Backlight Arrangement

LED/6 Series 2 Parallel (12 lights in total)

-

19

Display+Touch  Luminance

Typ.: 470

nit

20

Weight

TBD

kg

Interface Definition Description

PIN NO.

PIN SYMBOL

FUNCTION DESC.

1-2

LEDA

POWER SUPPLY- FOR BACKLIGHT ANODE

3

VLCM3V3

POWER SUPPLY(3.3V)

4

VIOLCM1V8

I/O  POWER SUPPLY(1.8V)

5

REST(LCM)

LCM  RESET  PIN

6

DSI_TE

Tearing  Effect  PIN

7

GND

Ground

8

MIPI1N

Negative MIPI differential data input

9

MIPI1P

Positive MIPI differential data input

10

GND

Ground

11

MIPI0N

Negative MIPI differential data input

12

MIPI0P

Positive MIPI differential data input

13

GND

Ground

14

MIPICN

Negative MIPI differential CLOCK input

15

MIPICP

Positive MIPI differential CLOCK input

16

GND

Ground

17

MIPI2P

Negative MIPI differential data input

18

MIPI2N

Positive MIPI differential data input

19

LCM EXTS12

EXTS12

20

MIPI3P

Positive MIPI differential data input

21

MIPI3N

Negative MIPI differential data input

22

LCM EXTS11

EXTS11

23

INT(TP)

TP  Interrupt  PIN(1.8V)

24

LCM_EXTS32

EXTS32

25

SDA(TP)

TP  I2C data (SDA) data input (MOSI)(1.8V)

26

SCL(TP)

TP  I2C clock (SCL) clock (SCLK)(1.8V)

27

LCM_EXTS23

EXTS23

28

REST(TP)

TP  Reset  PIN(1.8V)

29

VDD3V3(TP)

TP  POWER SUPPLY(3.3V)

30

ID

LCM  ID  PIN

31-33

GND

Ground

34-36

LEDK

POWER SUPPLY- FOR BACKLIGHT CATHODE
