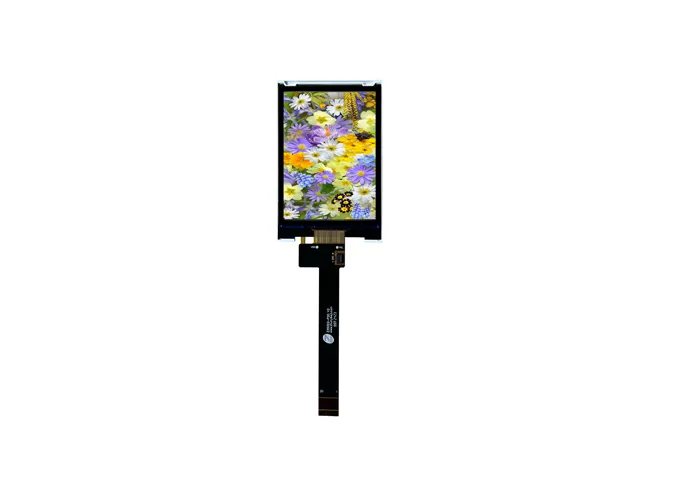

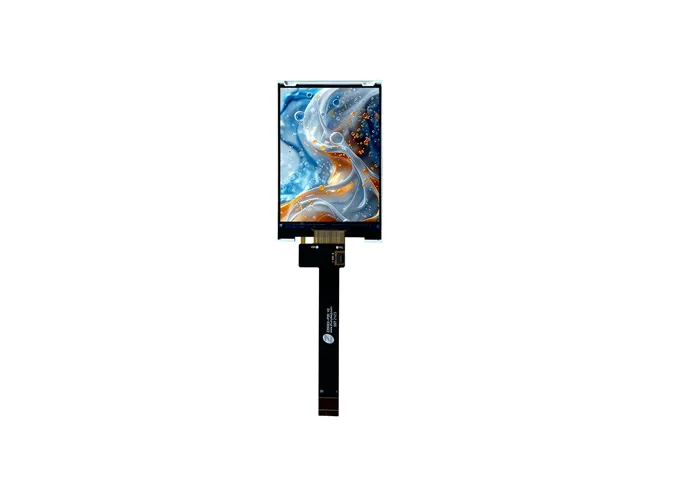

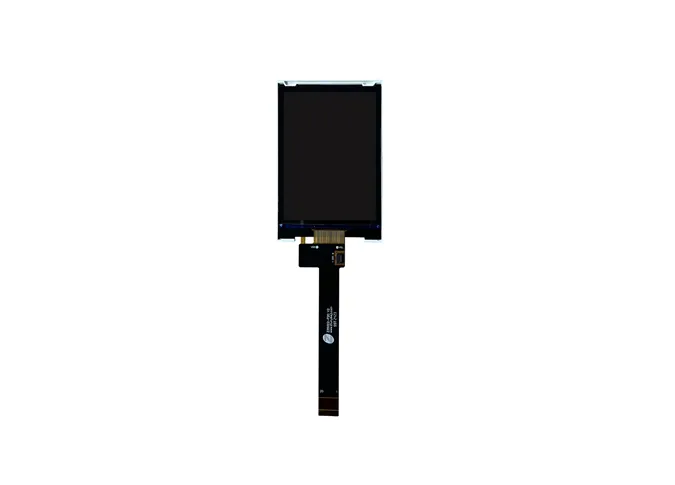

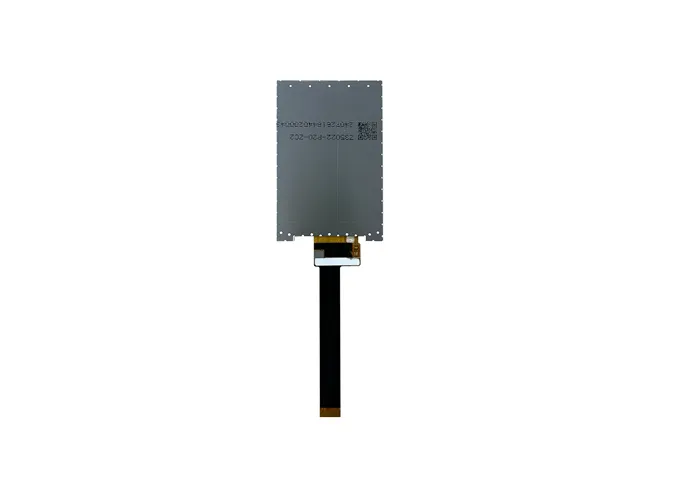

Z35022 3.5 Inch 240×320 SPI TFT LCD Display Module with ST7789P3 Driver IC Compatible with ESP32 STM32

1

Display Size (Diagonal)

3.36

inch

2

Display Resolution

240(H）× RGB × 320（V）

pixels

3

Pixel Pitch

71.21（H）×3× 213.63（V）

um

4

LCD Module Dimension

(Without FPC）

54.5 (W) ×83(H) × 2.19 (T)

mm

5

Touch Display Dimension

(Without FPC）

59.2 (W) ×90.8 (H) ×3.815(T)

mm

6

LCD Active Area

51.27（W）×68.36（H）

mm

7

View Direction (Gray Inversion)

FULL VIEW

-

8

LCM Driver IC

ST7789P3-G6

-

9

Pixel Arrangement

RGB-Stripe

-

10

Display Mode

Normal Black

-

11

FPC Version

Z35022-P20 V2

-

12

TFT Display Interface

SPI

-

13

TP Interface

I2C

-

14

PCAP Multi Touch

5

point

15

Touch Screen Report Rate

100

Hz

16

Operating Temperature

-20°C~ 70°C

-

17

Storage Temperature

-30°C~ 80°C

-

18

Backlight Arrangement

LED/1 Series 6 Parallel (6 lights in total)

-

19

Display+Touch  Luminance

TBD

nit

20

Weight

TBD

kg

1

TE

Power supply-for backlight anode

2-3

LEDK

Power supply-for backlight cathode

4-5

LEDA

Power supply-for backlight anode

6

GND

Ground

7

RESET

LCM RESET PIN

8

CS

Chip selection pin

9

SCL

SPI clock (SCL) clock (SCLK)

10

RS

Display data/command selection pin

11

SDA

SPI data(SDA) data input(MOSI)

12

GND

Ground

13

VCC

Power supply

14

GND

Ground

15

TP-VDD

Power supply

16

TP-SCL

TP I2C clock(SCL) clock(SCLK)

17

TP-SDA

TP I2C data (SDA) data input (MOSI)

18

TP-INT

TP interrupt PIN

19

TP-RST

TP reset PIN

20

GND

Ground

RESET voltage should be consistent with VDDI voltage, or there probably is black screen fault when power on.
