Z34014 Touch Integrated Screen 3.4 inch 540x960 Incell LCD Display with MIPI I2C Interface JD9365TN Driver

  • Size:3.4" diagonal, vertical layout

  • Resolution:540x960 qHD,high PPI

  • Interface:MIPI DSI for display + I²C for touch control

  • View angle:IPS,ultra-wide 178° viewing angle

  • Driver IC:JD9365TN with built-in display & touch management

  • Touch Panel: Integrated in-cell capacitive touch – no additional layer

  • Advantages: Integrated touch, slim profile, excellent image clarity

  • Custom Services: FPC design, brightness adjustment, cover glass,interface, logo silk print

  • ISO9001,IATF16949,ROHS,REACH certified factory


Request A Quote
z34014 1
z34014 1

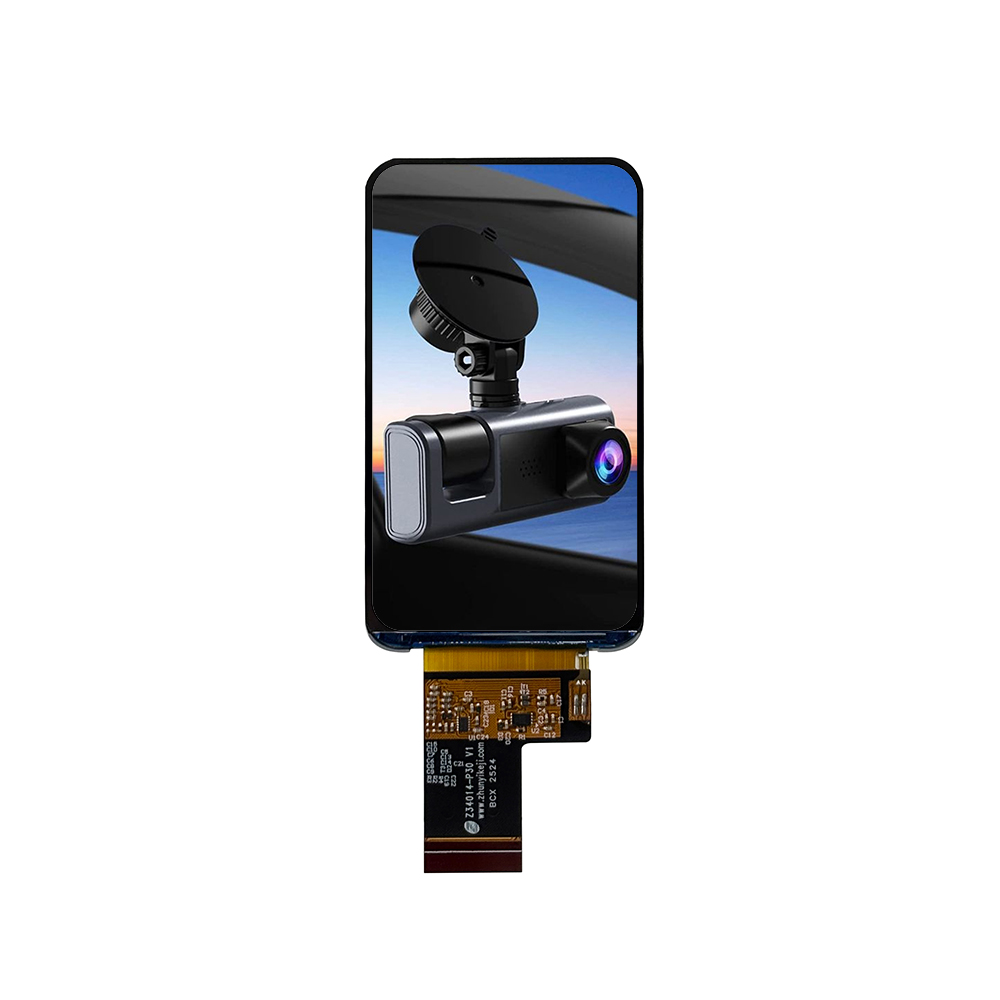

z34014 3

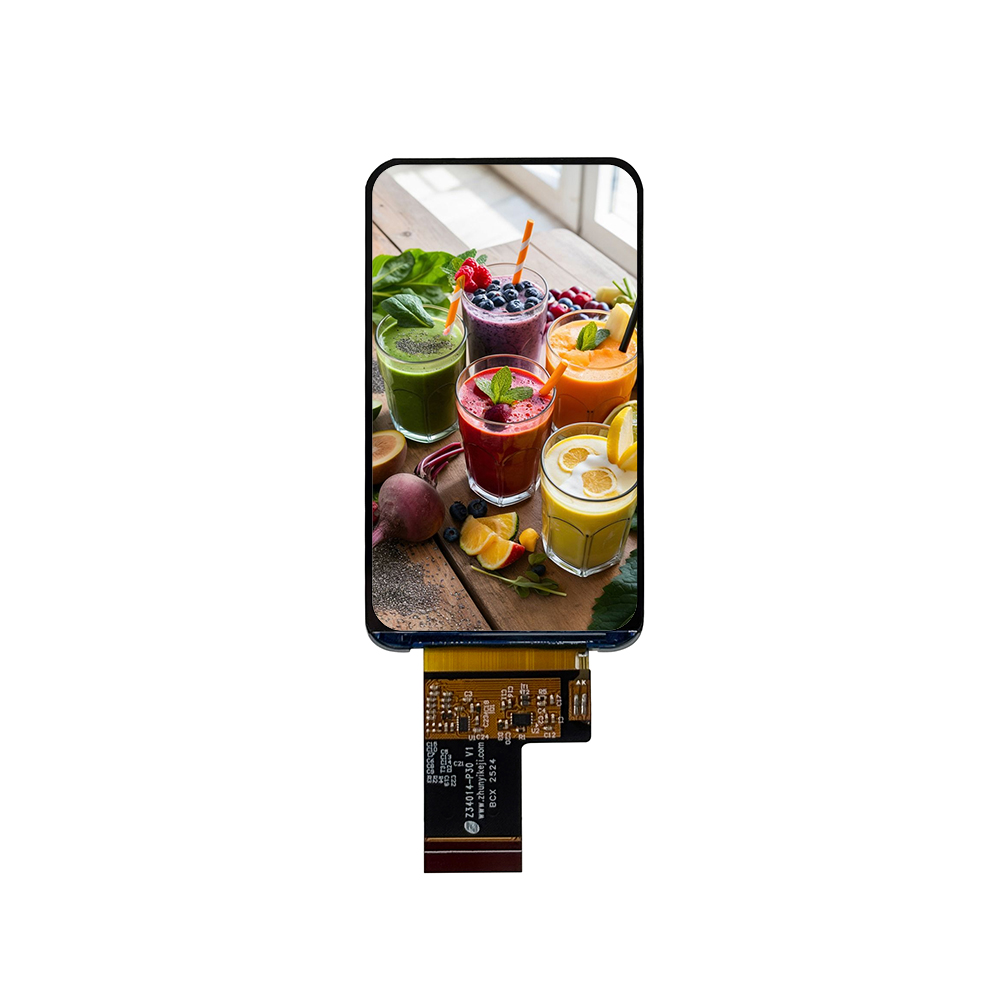

z34014 2

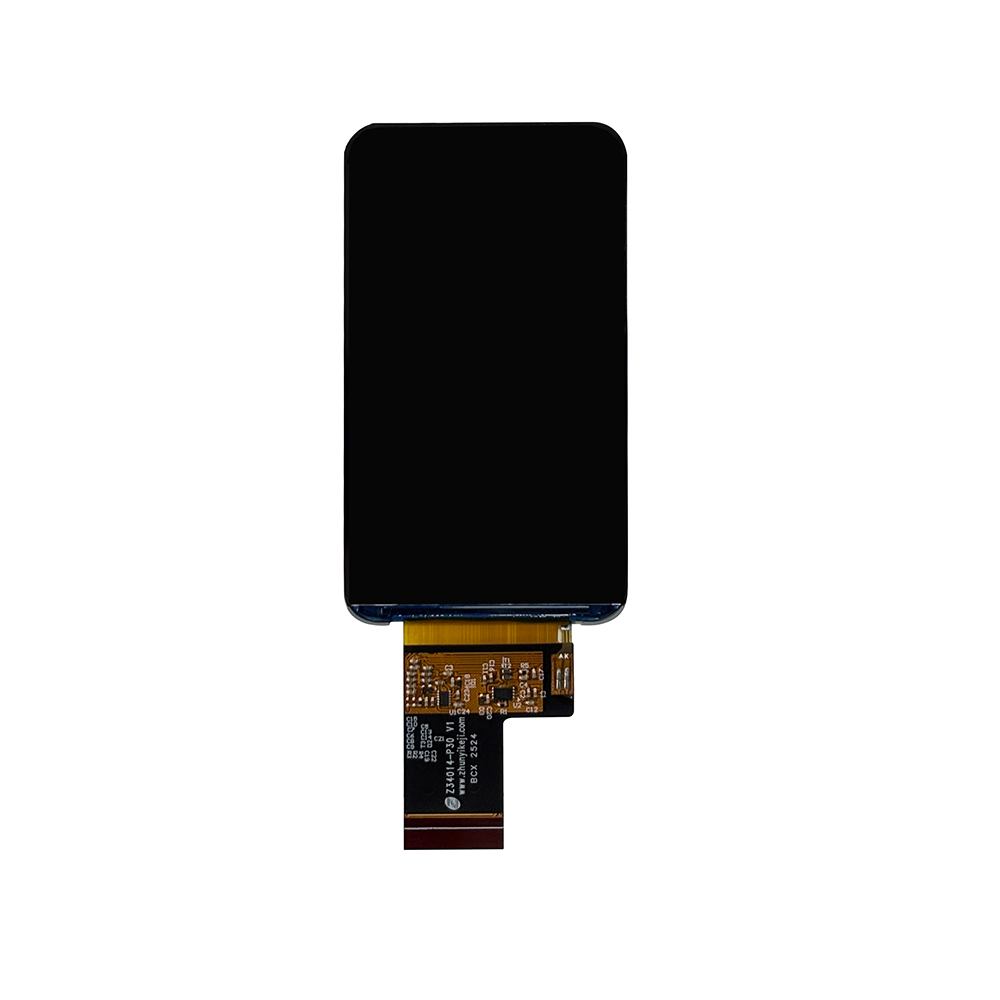

z34014 5

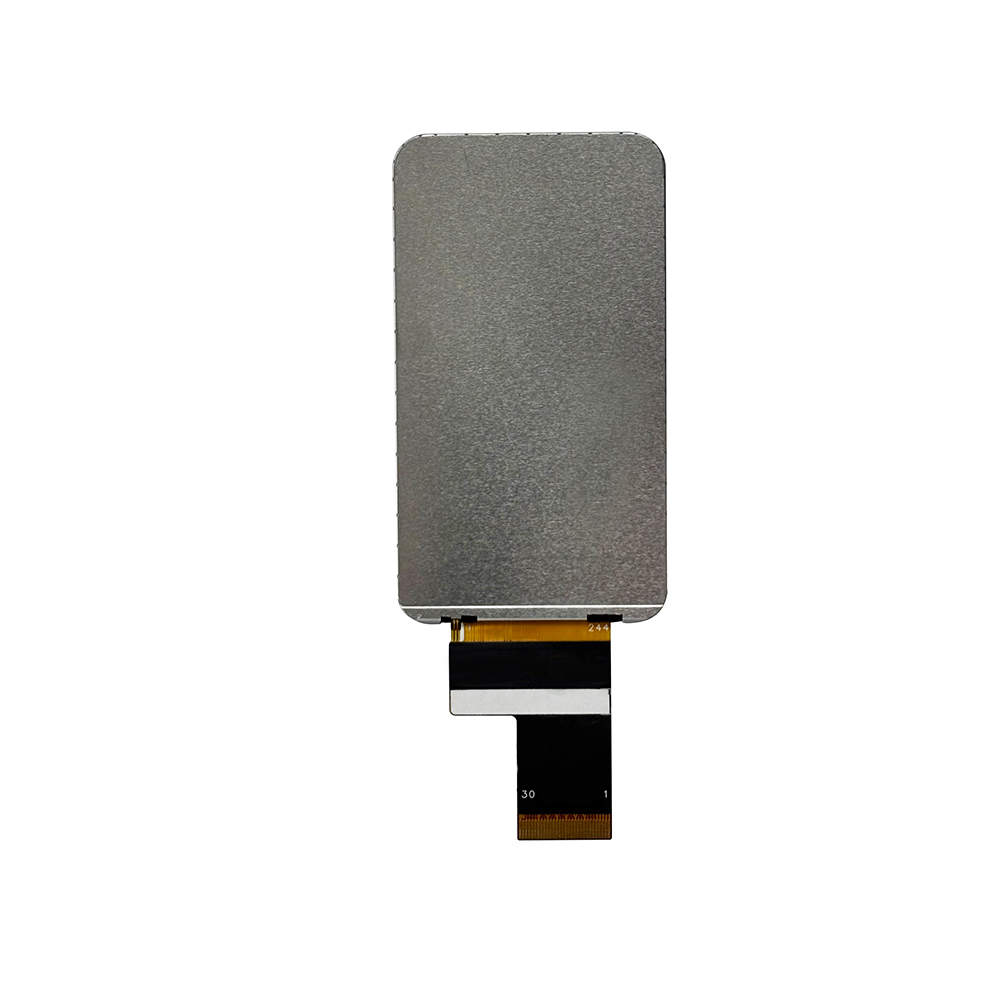

z34014 6

Overview of Z34014 Touch Integrated Screen 3.4 inch 540x960 Incell LCD Display with MIPI I2C Interface JD9365TN Driver

1

Z34014 is a color active matrix thin film transistor (TFT) liquid crystal display (LCD).This 3.4-inch In-cell LCD module combines display and capacitive touch in one layer, offering a slim, high-performance solution for modern smart devices. With a 540×960 high-resolution panel and JD9365TN controller, it supports MIPI video signals and I2C touch communication.

2

This 3.4 inch incell display compatible with Rockchip RK3566/RK3399-based boards,MediaTek MT6761/MT6572 SoCs,Qualcomm Snapdragon 410/450/625 platforms,NXP i.MX8M Mini and i.MX7 platforms,STM32MP1 series,Custom-designed Android/Linux SoMs etc.

3

This 3.4 inch incell touch screen is perfect for smart remote controllers,smart intercom,touch thermostats,digital thermometers,Handheld data terminals,RFID scanner,QR code readers,face recognition terminals,EV battery management,digital thermometers,skin scanners ,hair analysis devices,drone controller,learning aids etc.

4

If you have special requirement, like interface(pin definition), FPC, cover glass, backlight(brightness) etc, we can customize for you.Our factory carry out ISO 9001: 2015 and IATF16949: 2016 quality standard system strictly, all the LCD display passed ROHS, REACH Certification.

General Specifications of Z34014 Touch Integrated Screen 3.4 inch 540x960 Incell LCD Display with MIPI I2C Interface JD9365TN Driver


No.ItemSpecificationUnit
1Display Size (Diagonal)3.37inch
2Display Resolution540（H） × RGB ×960（V）pixels
3Pixel Pitch77.7（H） ×77.7（V）
um

LCD Module Dimension

4(Without FPC）44.16（W） ×79.84（H） ×2. 12（T）mm

Touch Display Dimension

5(Without FPC）46.56（W） ×85.29（H） ×3.0（T）mm
6LCD Active Area41.96（W） ×74.59（H）mm
7View Direction (Gray Inversion)FULL VIEW
-
8LCM Driver ICJD9365TN
-
9Pixel ArrangementRGB-Stripe
-
10Display ModeNormal Black
-
11FPC VersionZ34014-P30 V1
-
12TFT Display InterfaceMIPI
-
13TP InterfaceI2C
-
14PCAP Multi Touch-10point
15Touch Screen Report Rate-100Hz
16Operating Temperature-20°C~ 70°C
-
17Storage Temperature-30°C~ 80°C
-
18Backlight ArrangementLED/5 Series 2 Parallel (10 lights in total)
-
19Display+Touch    LuminanceTyp.: 350nit
20WeightTBDkg



Interface Definition Description of Z34014 Touch Integrated Screen 3.4 inch 540x960 Incell LCD Display with MIPI I2C Interface JD9365TN Driver


PIN NO.PIN SYMBOLFUNCTION DESC.
1LEDAPOWER SUPPLY- FOR BACKLIGHT ANODE
2LEDKPOWER SUPPLY- FOR BACKLIGHT CATHODE
3LEDKPOWER SUPPLY- FOR BACKLIGHT CATHODE
4VCCPOWER SUPPLY(2.8V)
5IOVCCI/O    POWER SUPPLY(1.8V)
6RESETLCM RESET PIN（1.8V）
7TETearing Effect PIN
8PWMBLPWM output
9GNDGround
10D0PPositive MIPI differential data input
11D0NNegative MIPI differential data input
12GNDGround
13D1PPositive MIPI differential data input
14D1NNegative MIPI differential data input
15GNDGround
16CLKPPositive MIPI differential CLOCK input
17CLKNNegative MIPI differential CLOCK input
18GNDGround
19D2PPositive MIPI differential data input
20D2NNegative MIPI differential data input
21GNDGround
22D3PPositive MIPI differential data input
23D3NNegative MIPI differential data input
24GNDGround
25TP_INTTP    Interrupt    PIN
26TP_SDATP I2C data (SDA) data input
27TP_SCLTP I2C CLOCK (SCL) input
28TP_RESETTP   Reset    PIN
29TP-VCI(NC)No Connection
30LCM_IDLCM    ID    PIN
RESET voltage should be consistent with VDDI voltage, or there probably is black screen fault when power on.
