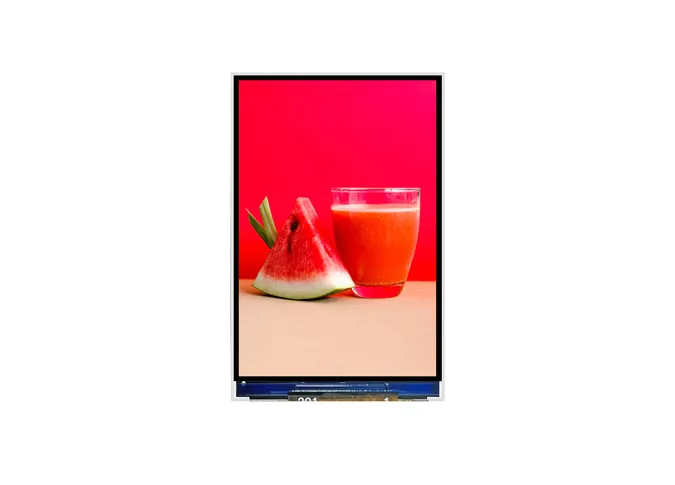

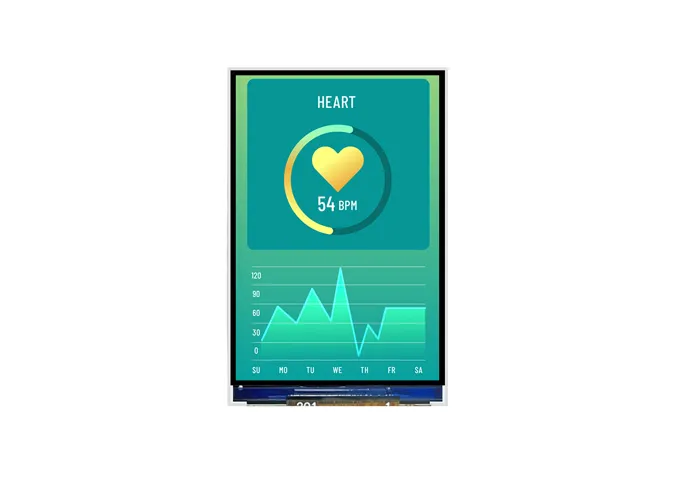

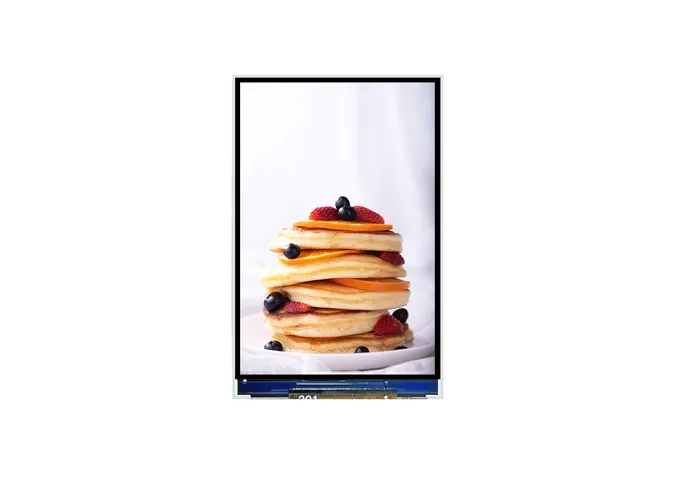

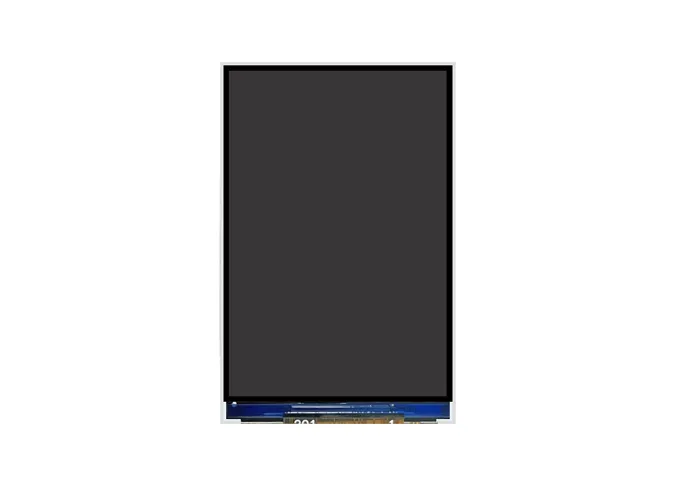

Z32002 OEM Display Solution 3.2 Inch 240×320 TFT LCD Module MCU Interface ST7789 Series Driver

  • Display Size:3.2 inch

  • Resolution:240×320 pixels(QVGA)

  • Display Type:TFTLCD

  • Interface:MCU(Parallel)

  • Color Display with stable brightness

  • Designed for microcontroller-based systems

Overview of Z32002 OEM Display Solution 3.2 Inch 240×320 TFT LCD Module MCU Interface ST7789 Series Driver

1

Z32002 is a color active matrix thin fim transistor (TFT)liquid crystal display(LCD). The 3.2 inch 240×320 TFTLCD module is designed for embedded applications that require a reliable and easy-to-integrate display sohution Using an MCU interface,this LCDmodule connects directly to microcontrollers,making it ideal for development boards and custom embedded systems.The screen size offers a comfortable viewing area while maintaining a compact footprint suitable for handheld and panel-mounted devices.


2

If you have special requirement,like dniver IC,interface. FPC,touch panelbacklight etc we can also customize for you.


3

Our factory cany out ISO 90012015 and IATF16949:2016 quality standard system stictly,allthe lcd display passed ROHS,REACH Certification


4

The 3.2"LCD Screen is perfect for Embedded development kits, microcontoller projects, evaluation boards, control interfaces etc.

Specifications of Z32002 OEM Display Solution 3.2 Inch 240×320 TFT LCD Module MCU Interface ST7789 Series Driver

No.

Item

Specification

Unit

1

Display Size (Diagonal)

3.2

inch

2

Display Resolution

240(H) × RGB × 320(V)

pixels

3

Pixel Pitch

153(H) × 153(V)

um


4

LCM+CTP Outline Dimension

(Without FPC)

-

mm


5

LCM Outline Dimension

(Without FPC)

55.05 (W) ×75.2 (H) ×2.5(T)

mm

6

LCD Active Area

48.6(W) ×64.8(H)

mm

7

View Direction (Gray Inversion)

FULL VIEW

-

8

Driver IC

ST7789P3

-

9

Pixel Arrangement

RGB-Stripe

-

10

Display Mode

Normal Black

-

11

Pixel driving Element

a-Si TFT

-

12

LCD Transmittance

Typ.:4. 1

-

13

LCD Contrast Ratio

Typ.: 1200:1 Min:900:1

-

14

FPC Version

Z32002-P27 V1

-

15

Interface

SPI

-

16

Operating Temperature

-20°C~ 70°C

-

17

Storage Temperature

-30°C~ 80°C

-

18

Backlight Arrangement

LED

-

19

Luminance

Typ.400

nit

20

Weight

TBD

kg
