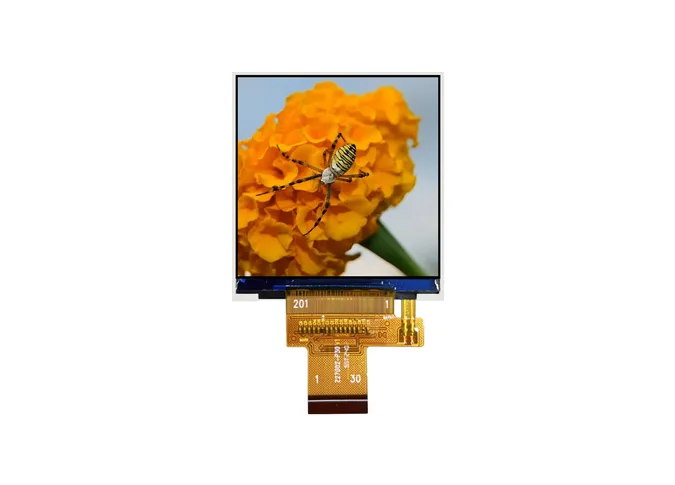

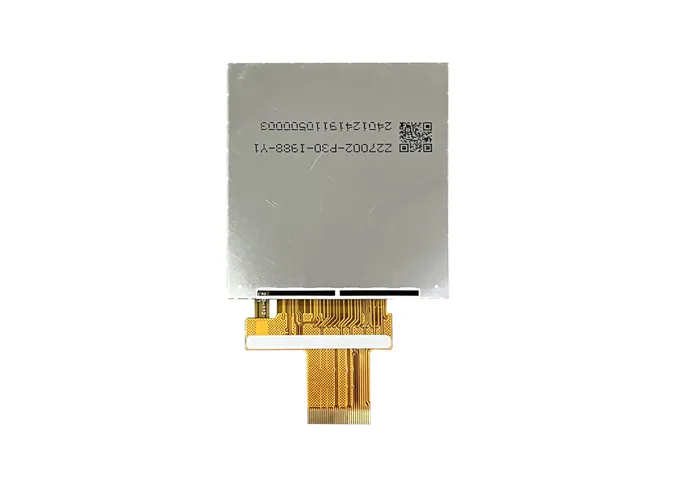

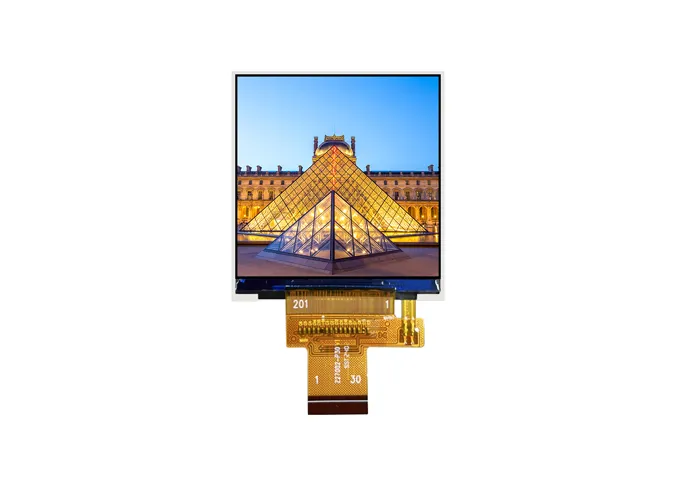

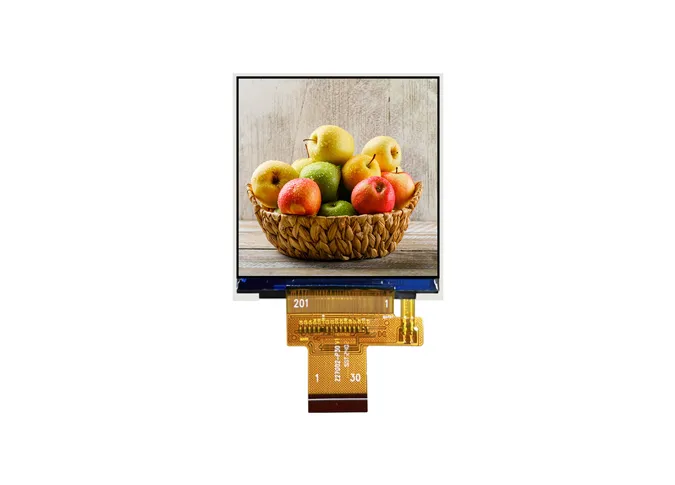

Z27002 MIPI/SPI Interface 2.7 inch Square LCD Screen 320×320 with ILI9488 Controller

  • Display Size: 2.7 inch

  • Resolution: 320×320 pixels

  • Display Type: TFT LCD

  • Aspect Ratio: Square

  • Interface: MIPI / SPI

  • Driver IC: ILI9488

  • Color Depth: Up to 262K colors

  • Low power consumption design

Request A Quote

Overview of Z27002 MIPI/SPI Interface 2.7 inch Square LCD Screen 320×320 with ILI9488 Controller

1

Z27002 is a color active matrix thin film transistor (TFT) liquid crystal display (LCD). The 2.7 inch square TFT LCD display offers a balanced screen size with a sharp 320×320 resolution, ideal for embedded systems that require a compact yet visually rich user interface. Powered by the ILI9488 controller, this display supports both MIPI and SPI interfaces, providing flexible integration options for different hardware architectures.

2

If you have special requirement,like driver IC,interface,FPC,touch panel,backlight etc, we can also customize for you.

3

Our factory carry out ISO 9001:2015 and IATF16949: 2016 quality standard system strictly, all the lcd display passed ROHS, REACH Certification


4

The 2.7" square LCD Screen is widely used on Smart home panels, handheld electronics, portable controllers, digital meters etc

General Specifications of Z27002 MIPI/SPI Interface 2.7 inch Square LCD Screen 320×320 with ILI9488 Controller


No.

Item

Specification

Unit

1

Display Size (Diagonal)

2.73

inch

2

Display Resolution

320(H） × RGB × 320（V）

pixels

3

Pixel Pitch

153(H） × 153（V）

um


4

LCM Outline Dimension

(Without FPC）


53.54 (W) ×58.74 (H) ×2.54 (T)


mm

5

LCD Outline Dimension

51.96 (W) × 55.74 (H) × 0.8 (T)

mm

6

LCD Active Area

48.96（W） ×48.96（H）

mm

7

View Direction (Gray Inversion)

FULL VIEW

-

8

Driver IC

ILI9488

-

9

Pixel Arrangement

RGB-Stripe

-

10

Display Mode

Normal Black

-

11

Pixel driving Element

a-Si TFT

-

12

LCD Transmittance

Typ.: 5.0%    Min:1.25%

-

13

LCD Contrast Ratio

Typ.: 1200    Min:1000

-

14

FPC Version

Z27002-P30 V1

-

15

Interface

MIPI

-

16

Operating Temperature

-20°C~ 70°C

-

17

Storage Temperature

-30°C~ 80°C

-

18

Backlight Arrangement

LED/1 Series 6 Parallel (6 lights in total)

-

19

Luminance

TBD

nit

20

Weight

TBD

kg
