Z21001 Round 2.1 inch LCD Module Display 480*480 MIPI/SPI+RGB Interface IPS Screen Panel

  • Size: 2.1 inch round shape

  • Resolution: 480x480 pixels

  • Interface: MIPI DSI or SPI+RGB

  • View angle: IPS, full viewing

  • Driver IC:ST7701S

  • Full OEM support: Logo, touch, backlight, interface customization

  • ISO9001,IATF16949,ROHS,REACH certified factory


Request A Quote
2
2
china custom lcd display
tft lcd panel manufacturer
china lcd display module
china display lcd tft
china display tft lcd
tft lcd panel supplier
tft lcd supplier
tft lcd panel suppliers
tft lcd screen factory
tft module factory
tft panel manufacturer
tft panel suppliers
china lcd display panel

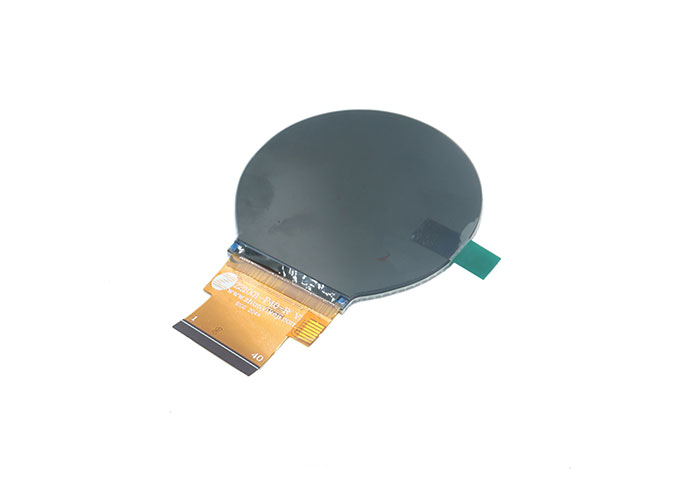

Overview of Z21001 480*480 2.1 Inch LCD Module Display MIPI Interface 30PIN IPS View

1

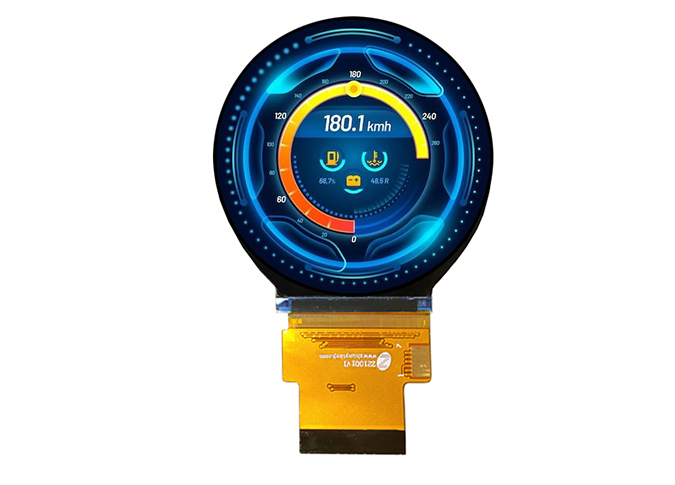

Z21001 is a color active matrix thin film transistor (TFT) liquid crystal display (LCD) This 2.1-inch circular LCD module delivers a crisp 480x480 resolution with vibrant IPS visuals and wide viewing angles. Equipped with the ST7701S controller and offering versatile MIPI and SPI+RGB interfaces, it is an excellent choice for modern smart devices requiring a stylish, compact round display. This Round TFT  Display is 350nits.

2

If you have special requirement, like drive IC interface, FPC, touch panel, backlight, etc, the round LCD module manufacturer can also customize for you.

3

Our round LCD panel factory carry out ISO 9001: 2015 and IATF16949: 2016 quality standard system strictly, all the LCD display passed ROHS, REACH Certification.

4

The 2.1 inch round wholesale LCD display module is perfect for Dashboard gauges,EV charging station interfaces, motorcycle or e-bike instrument clusters,data loggers,Custom media players, rotary knobs,Smart thermostats, HMI Panel,Portable ECG monitors,Digital thermometers, hybrid digital watches,router etc

Specifications of 480*480 2.1 Inch LCD Module Display MIPI Interface 30PIN IPS View


No.

Item

Specification

Unit

1

Display Size (Diagonal)

2.1

inch

2

Display Resolution

480 (H) × RGB × 480 (V）

pixels

3

Pixel Pitch

111 (H) × 111 (V）

um

4

LCM Outline Dimension

(Without FPC）

56.18 (W) × 59.71 (H) × 2.3 (T)

mm

5

LCD Outline Dimension

55.88 (W) × 59.36 (H) × 0.8 (T)

mm

6

LCD Active Area

53.28 (W) × 53.28 (H）

mm

7

View Direction (Gray Inversion)

FULL VIEW

-

8

Driver IC

ST7701S-G5

-

9

Pixel Arrangement

RGB-Stripe

-

10

Display Mode

Normal Black

-

11

Pixel driving Element

a-Si TFT

-

12

LCD Transmittance

Typ.: 4.0% Min: 3.6%

-

13

LCD Contrast Ratio

Typ.: 100  Min: 800

-

14

FPC Version

Z21001-P40-R V2

-

15

Interface

RGB+SPI

-

16

Operating Temperature

-20°C~ 70°C

-

17

Storage Temperature

-30°C~ 80°C

-

18

Backlight Arrangement

LED/1 Series 4 Parallel (4 lights in total)

-

19

Luminance

330

nit

20

Weight

0.012

kg


Interface Definition Description of 480*480 2.1 Inch LCD Module Display MIPI Interface 30PIN IPS View


PIN NO.

PIN DEF.

FUNCTION DESC.

1

LEDA

POWER SUPPLY- FOR BACKLIGHT ANODE

2-3

LEDK

POWER SUPPLY- FOR BACKLIGHT CATHODE

4

GND

Ground

5

VCI

POWER SUPPLY

6

RESET

LCM RESET PIN

7-8

NC

No Connection

9

SDA

LCM SPI data (SDA) data input (MOSI)

10

SCK

LCM SPI clock (SCL) clock (SCLK)

11

CS

Chip Select PIN

12

PCLK

Pixel clock signal in RGB I/F

13

DE

Data enable signal in RGB I/F DE mode.

14

VSYNC

Vertical sync. Signal in RGB I/F.

15

HSYNC

Horizontal sync. Signal in RGB I/F.

16-21

B0-B5

DATA BUS

22-27

G0-G5

DATA BUS

28-33

R0-R5

DATA BUS

34

GND

Ground

35

TP_INT

TP Interrupt PIN

36

TP_SDA

TP I2C data (SDA) data input (MOSI)

37

TP_SCL

TP I2C clock (SCL) clock (SCLK)

38

TP_RESET

TP RESET PIN

39

TP_VCI

TP POWER SUPPLY

40

GND

Ground

RESET voltage should be consistent with VDDI voltage, or there probably is black screen fault when power on.


Mechanical Drawing of 480*480 2.1 Inch LCD Module Display MIPI Interface 30PIN IPS View


Mechanical Drawing of 480*480 2.1 Inch LCD Module Display MIPI Interface 30PIN IPS View
