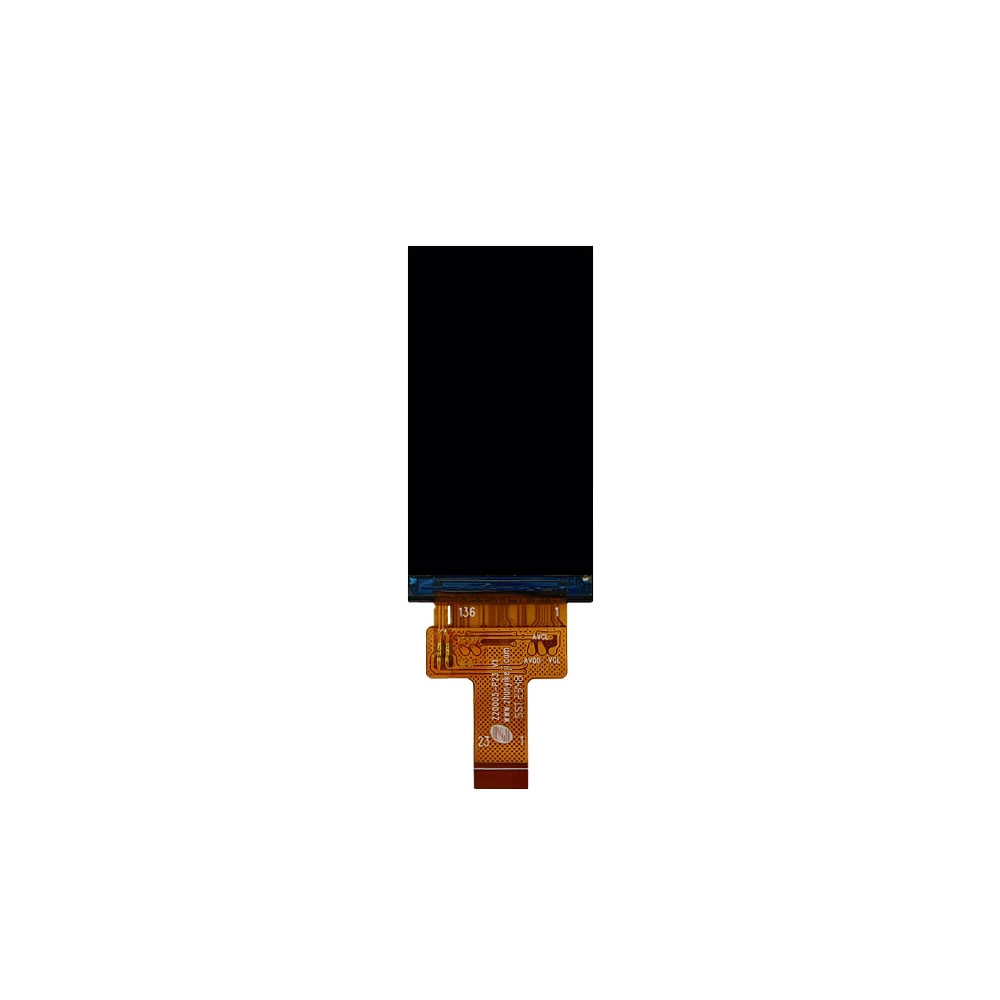

Z20005 Automotive Grade 1.99 inch 170*320 LCD Display Module MCU SPI Interface IPS Full-Color Display

  • Size:1.99 inch bar type

  • Resolution: 170*320 pixels

  • Interface: MCU/SPI

  • View Angle: IPS full view

  • Driver IC: ST7789P3

  • Full OEM support: Logo, touch, backlight, interface customization

  • ISO9001,IATF16949,ROHS,REACH certified factory


Request A Quote
z20005 1
z20005 1
z20005 2
z20005 3
z20005 4

Overview of Z20005 High Temperature Automative Grade 2 inch 170x320 LCD Display MCU Interface 600 cd/m2

1

Z20005 is a color active matrix thin film transistor (TFT) liquid crystal display (LCD) .This 1.99-inch TFT LCD packs a tall 170x320 resolution into a slim form factor. Powered by the ST7789P3 controller, it works great over SPI or 8-bit parallel (MCU) interface. Full-angle IPS ensures visibility from any direction.

2

If you have special requirement, like driver IC, interface, FPC, touch panel,backlight etc, we can also customize for you.

3

Our factory carry out ISO 9001:2015 and IATF16949: 2016 quality standard system strictly, all the lcd display passed ROHS, REACH Certification

4

The 1.99" Bar LCD Screen is widely used on digital thermometer,fitness trackers,smart wristbands,sleep tracking devices,smart device, bluetooth speaker, digital invoice recorder,mini media player,IOT status, enviromental sensor, mini game console ect

Specifications of Z20005 High Temperature Automative Grade 2 inch 170x320 LCD Display MCU Interface 600 cd/m2


No.

Item

Specification

Unit

1

Display Size (Diagonal)

1.99

inch

2

Display Resolution

170(H）× RGB × 320（V）

pixels

3

Pixel Pitch

133.5(H）× 133.5（V）

um

4

LCM Outline Dimension

(Without FPC）

25.10 (W) ×49.47 (H) ×1.90 (T)

mm

5

LCD Outline Dimension

24.80 (W) × 48.52 (H) × 0.4 (T)

mm

6

LCD Active Area

22.695（W）×42.72（H）

mm

7

View Direction (Gray Inversion)

ALL

-

8

Driver IC

ST7789P3

-

9

Pixel Arrangement

RGB-Stripe

-

10

Display Mode

Normal Black

-

11

Pixel driving Element

a-Si TFT

-

12

LCD Transmittance

Typ.: 5.0%

-

13

LCD Contrast Ratio

Typ.: 1200

-

14

FPC Version

Z20005-P23 V1

-

15

Interface

MCU

-

16

Operating Temperature

-30°C~ 85°C

-

17

Storage Temperature

-30°C~ 85°C

-

18

Backlight Arrangement

LED/1 Series 4 Parallel (4 lights in total)

-

19

Luminance

Typ.: 600

nit

20

Weight

0.011

kg


Interface Definition Description of Z20005 High Temperature Automative Grade 2 inch 170x320 LCD Display MCU Interface 600 cd/m2


PIN NO.

PIN DEF.

FUNCTION DESC.

1

BL_A

POWER SUPPLY+ FOR BACKLIGHT

2-3

BL_K

POWER SUPPLY- FOR BACKLIGHT CATHODE

4

GND

Ground

5

VDD

POWER  SUPPLY

6

IOVCC

POWER  SUPPLY

7

TE

Tearing  Effect  PIN

8

RSTB

LCM  RESET  PIN

9

CS

Chip  selection  signal  PIN

10

RS

Display  data/command  selection  pin

11

WR

Write enable in 8080 MCU parallel interface

12

RD

Read enable in 8080 MCU parallel interface

13

ID0

ID  PIN

14

ID1

ID  PIN

15-22

DATA0-DATA7

DATA  BUS

23

GND

Ground

RSTB voltage should be consistent with IOVCC voltage, or there probably is black screen fault when power on.
