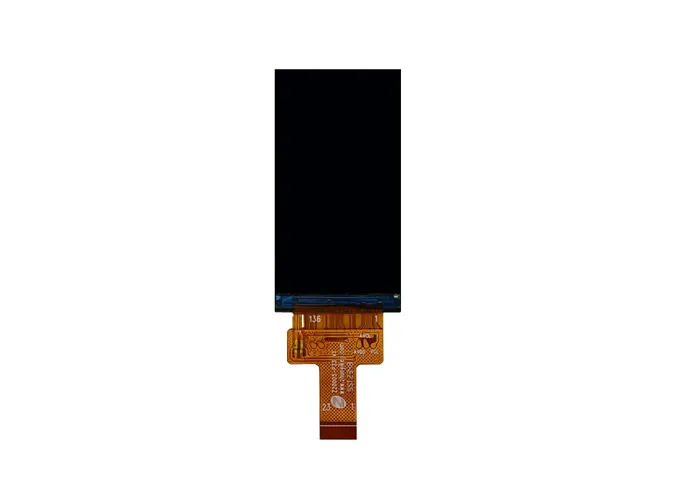

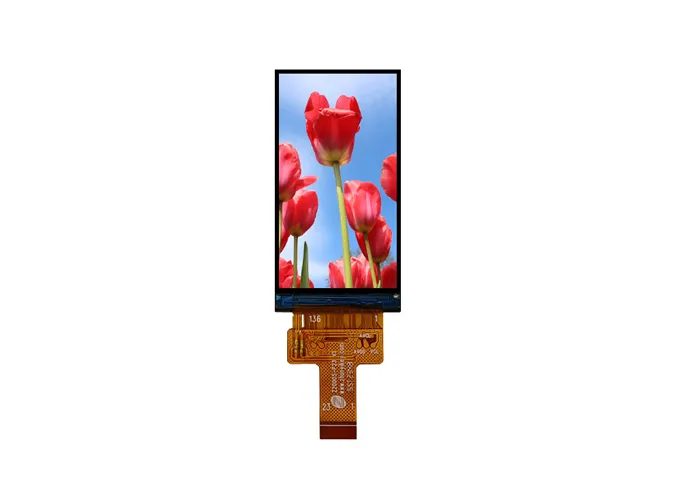

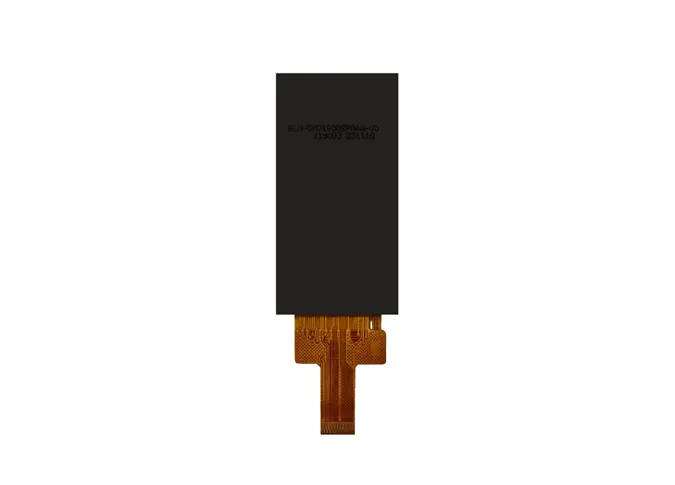

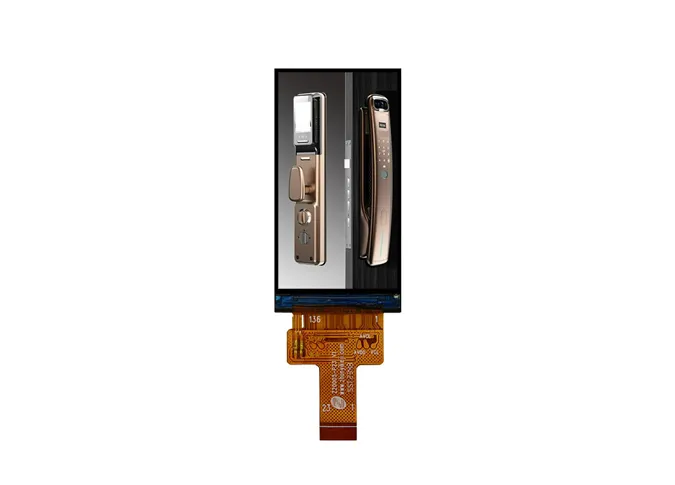

Z20005 1.9”Stretched Bar TFT LCD Screen 170×320 with SPI/MCU Interface

  • Display Size: 1.9 inch

  • Resolution: 170×320 pixels

  • Display Type: TFT LCD

  • Form Factor: Stretched bar / vertical display

  • Interface: SPI / MCU

  • Color Support: Up to 262K colors

  • Low power consumption design


Overview of Z20005 1.9”Stretched Bar TFT LCD Screen 170×320 with SPI/MCU Interface

1

Z20005 is a color active matrix thin film transistor (TFT) liquid crystal display (LCD) .The 1.9 inch stretched bar LCD module is a reliable TFT display solution developed for OEM and B2B applications. With a 170×320 resolution and support for SPI and MCU interfaces, this module offers flexible system integration and stable visual performance. The elongated bar design enables efficient information presentation in limited spaces and supports customization for industrial and commercial projects.

2

If you have special requirement,like drive IC,interface,FPC,touch panel,backlight etc, we can also customize for you.

3

This LCD Display compatible with Arduino, Raspberry Pi, ESP32, STM32 etc

4

The 1.47" LCD Screen is widely used on Wearable electronics, smart accessories, handheld devices, portable UI modules ect

General Specifications of Z20005 1.9”Stretched Bar TFT LCD Screen 170×320 with SPI/MCU Interface

1. General Specifications

No.

Item

Specification

Unit

1

Display Size (Diagonal)

1.99

inch

2

Display Resolution

170(H)× RGB × 320(V)

pixels

3

Pixel Pitch

133.5(H)× 133.5(V)

um

4

LCD Module Dimension

(Without FPC)

25.10 (W) ×49.47 (H) ×1.50 (T)

mm

5

Touch Display Dimension

(Without FPC)

-

mm

6

LCD Active Area

22.695(W)×42.72(H)

mm

7

View Direction (Gray Inversion)

ALL

-

8

LCM Driver IC

ST7789P3

-

9

Pixel Arrangement

RGB-Stripe

-

10

Display Mode

Normal Black

-

11

FPC Version

Z20005-P23 V1

-

12

TFT Display Interface

MCU/SPI

-

13

TP Interface

-

-

14

PCAP Multi Touch

-

point

15

Touch Screen Report Rate

-

Hz

16

Operating Temperature

-20°C~ 70°C

-

17

Storage Temperature

-30°C~ 80°C

-

18

Backlight Arrangement

LED/1 Series 4 Parallel (4 lights in total)

-

19

Display Luminance

Typ.: 640

nit

20

Weight

0.011

kg


2. Interface Definition Description

PIN NO.

PIN SYMBOL

FUNCTION DESC.

1

BL_A

POWER SUPPLY+ FOR BACKLIGHT

2-3

BL_K

POWER SUPPLY- FOR BACKLIGHT CATHODE

4

GND

Ground

5

VDD

POWER  SUPPLY

6

IOVCC

IO  POWER  SUPPLY

7

TE

Tearing  Effect  PIN

8

RSTB

LCM  RESET  PIN

9

CS

Chip  selection  signal  PIN

10

RS

Display  data/command  selection  pin

11

WR

Write enable in 8080 MCU parallel interface

12

RD

Read enable in 8080 MCU parallel interface

13

ID0

ID  PIN

14

ID1

ID  PIN

15-22

DATA0-DATA7

DATA  BUS

23

GND

Ground

RESET voltage should be consistent with VDDI voltage, or there probably is black screen fault when power on.
