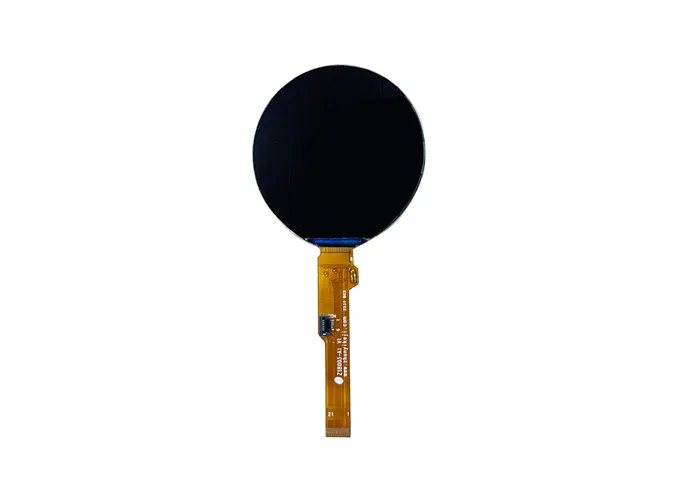

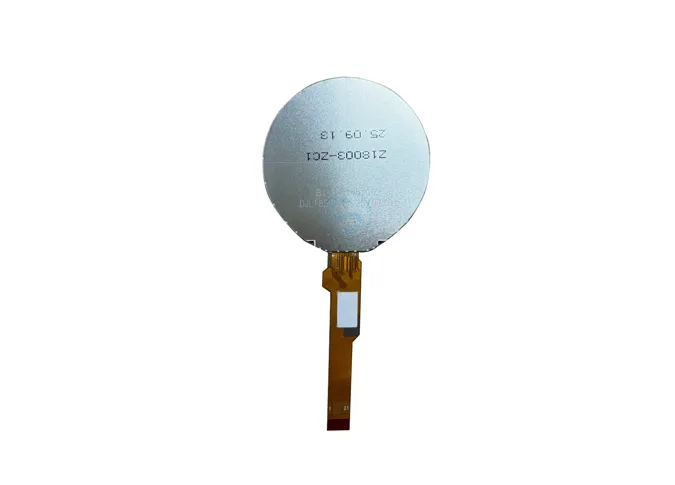

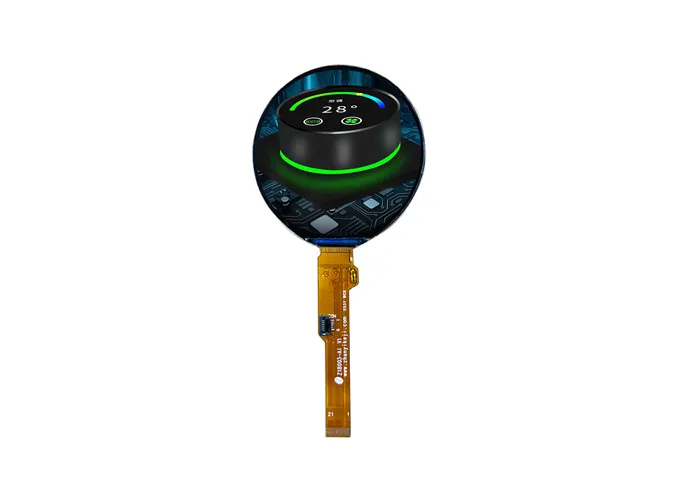

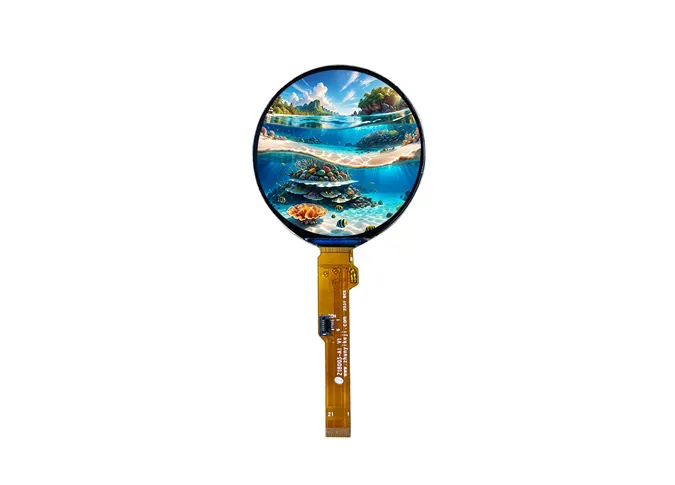

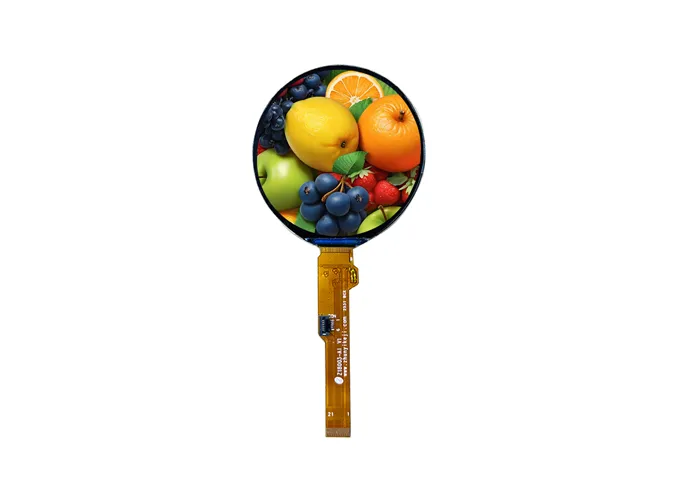

Z18003 OEM Support 1.8 Inch Round LCD Module 360x360 SPI Interface with ST77916 Driver

1

Display Size (Diagonal)

1.8

inch

2

Display Resolution

360（H） × RGB × 360（V）

pixels

3

Pixel Pitch

126.9 (H)×126.9 (V)

um

4

LCD Module Dimension

(Without FPC）

47.99（W） ×49.86（H） ×1.96（T）

mm

5

Touch Display Dimension

(Without FPC）

55.8（W） ×55.8（H） ×3.09（T）

mm

6

LCD Active Area

45.68（W） ×45.68（H）

mm

7

View Direction (Gray Inversion)

FULL VIEW

-

8

LCM Driver IC

ST77916

-

9

Pixel Arrangement

RGB-Stripe

-

10

Display Mode

Normal Black

-

11

FPC Version

Z18003-AI V1

-

12

TFT Display Interface

SPI

-

13

TP Interface

I2C

-

14

PCAP Multi Touch

1

point

15

Touch Screen Report Rate

100

Hz

16

Operating Temperature

-20°C~ 70°C

-

17

Storage Temperature

-30°C~ 80°C

-

18

Backlight Arrangement

LED/1 Series 3 Parallel (3 lights in total)

-

19

Display+Touch    Luminance

Typ.: 290

nit

20

Weight

TBD

kg

1

GND

Ground

2

LEDK

POWER SUPPLY- FOR BACKLIGHT CATHODE

3

LEDA

POWER SUPPLY- FOR BACKLIGHT ANODE

4

GND

Ground

5

NC

NC

6

GND

Ground

7

IOVCC

I/O    POWER SUPPLY

8

VCC

POWER SUPPLY

9

RS

Display data/command selection pin

10

CS

Chip selection pin

11

SCL

serial interface clock

12

SDA

serial interface data input/output pin.

13

RST

LCM RESET PIN

14

TP_VCI

TP POWER SUPPLY

15

GND

Ground

16

TP_RST

TP Reset PIN

17

TP_INT

TP Interrupt PIN

18

TP_SDA

TP I2C data (SDA) input

19

TP_SCL

TP I2C CLOCK (SCL) input

20

GND

Ground

21

GND

Ground

RESET voltage should be consistent with IOVCC voltage, or there probably is black screen fault when power on.
