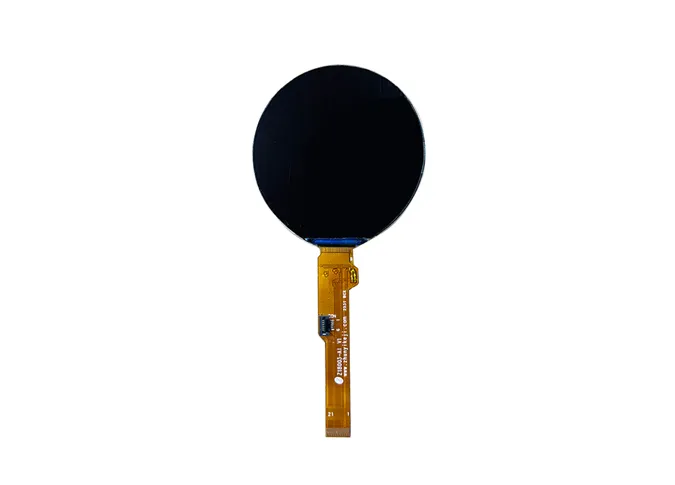

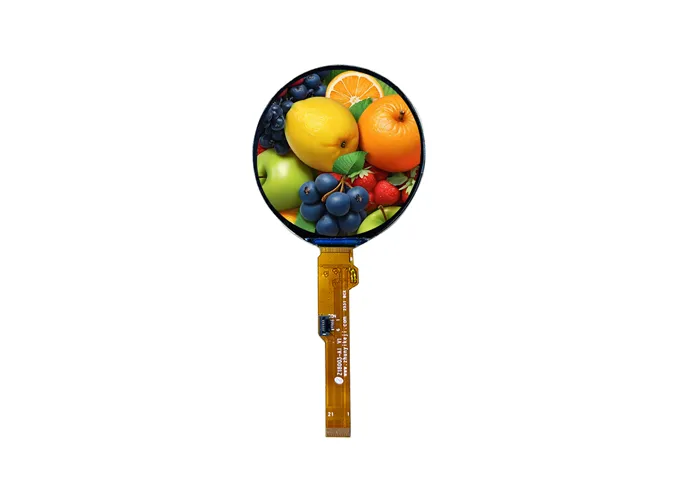

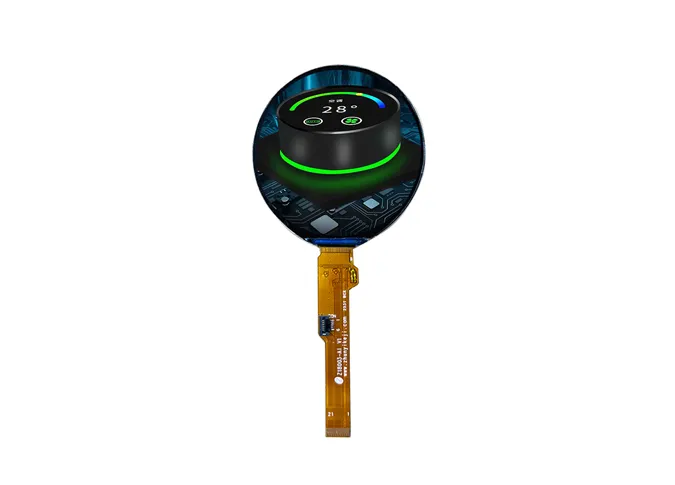

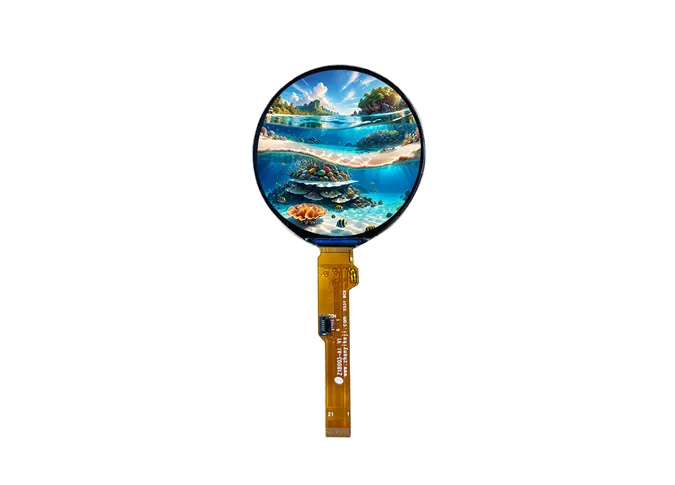

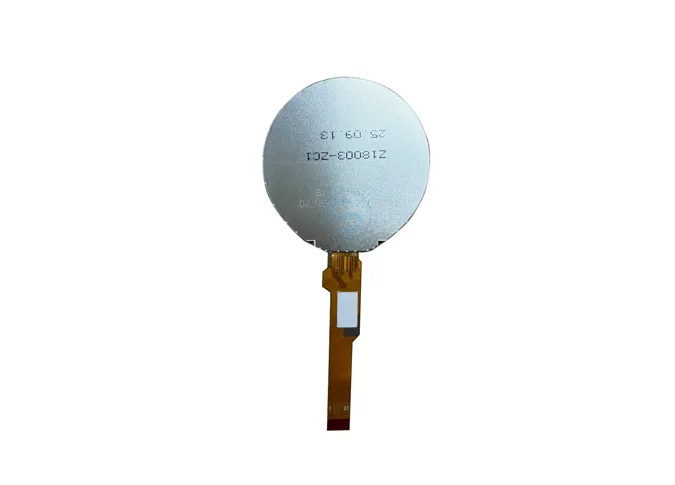

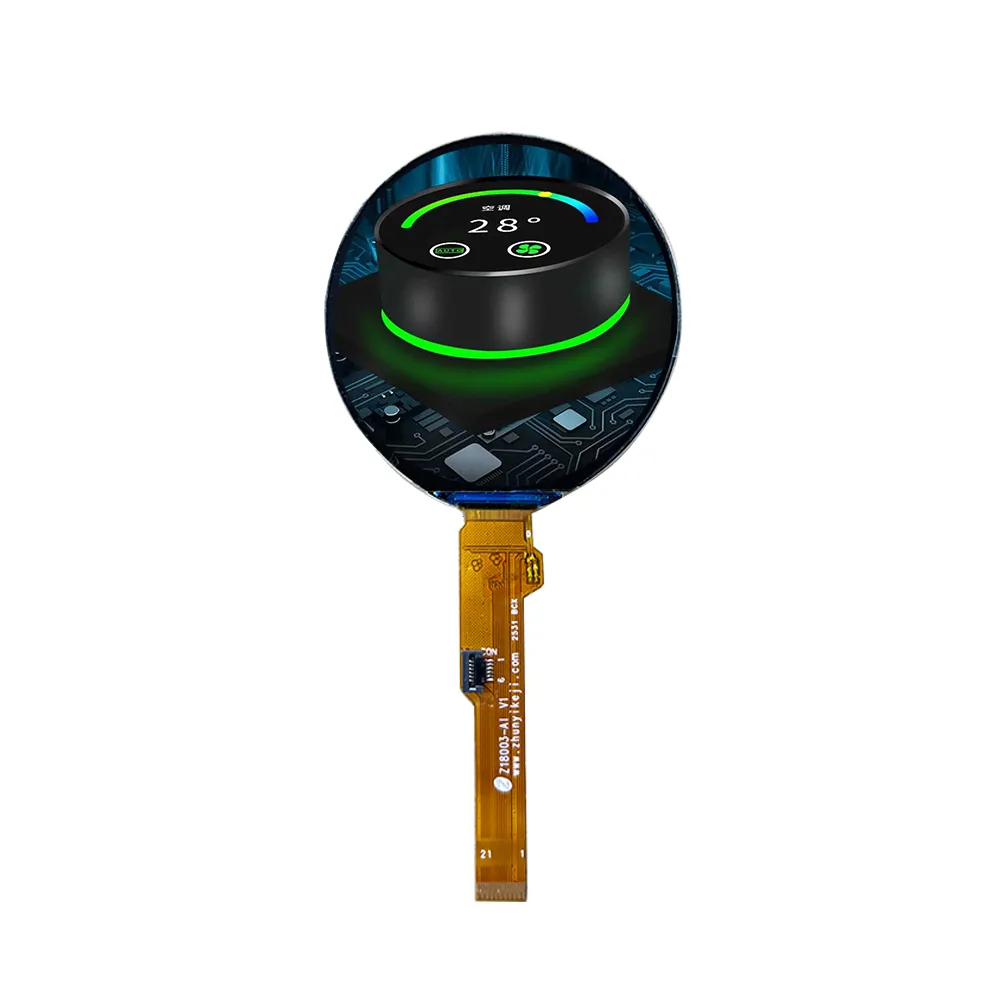

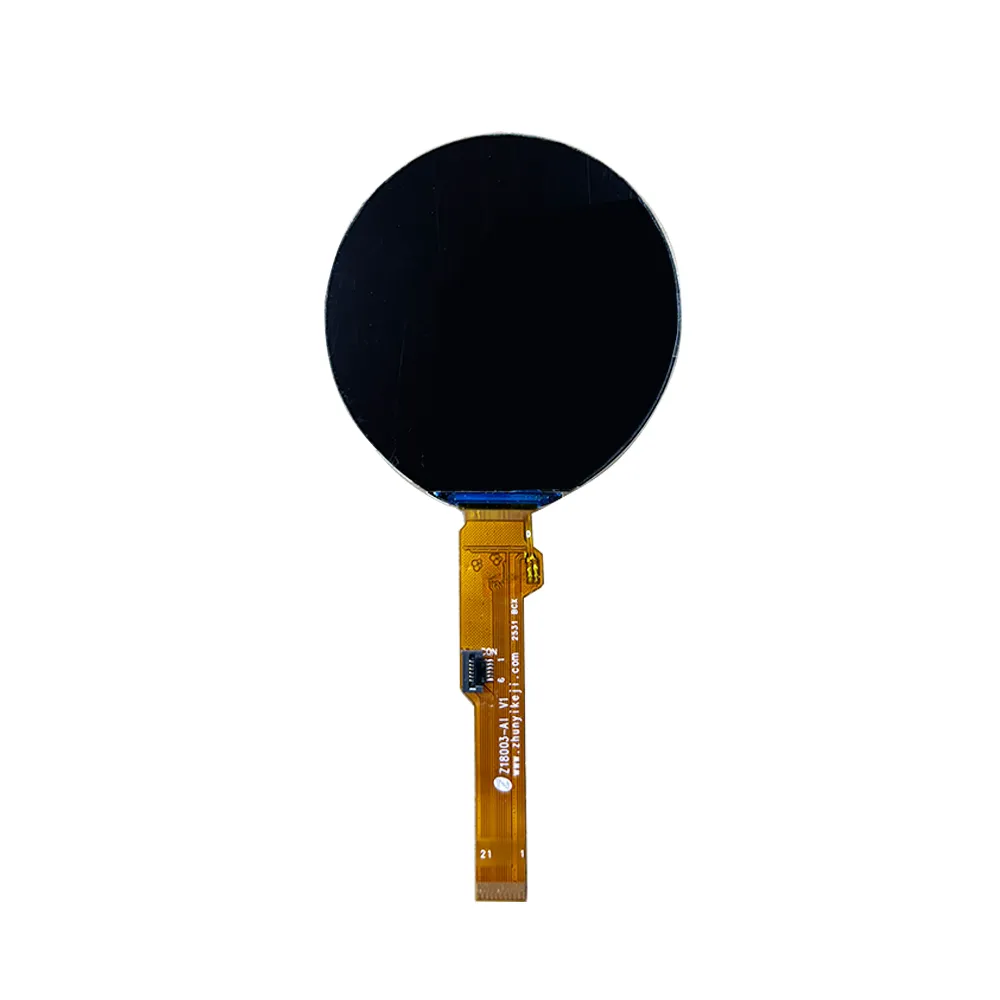

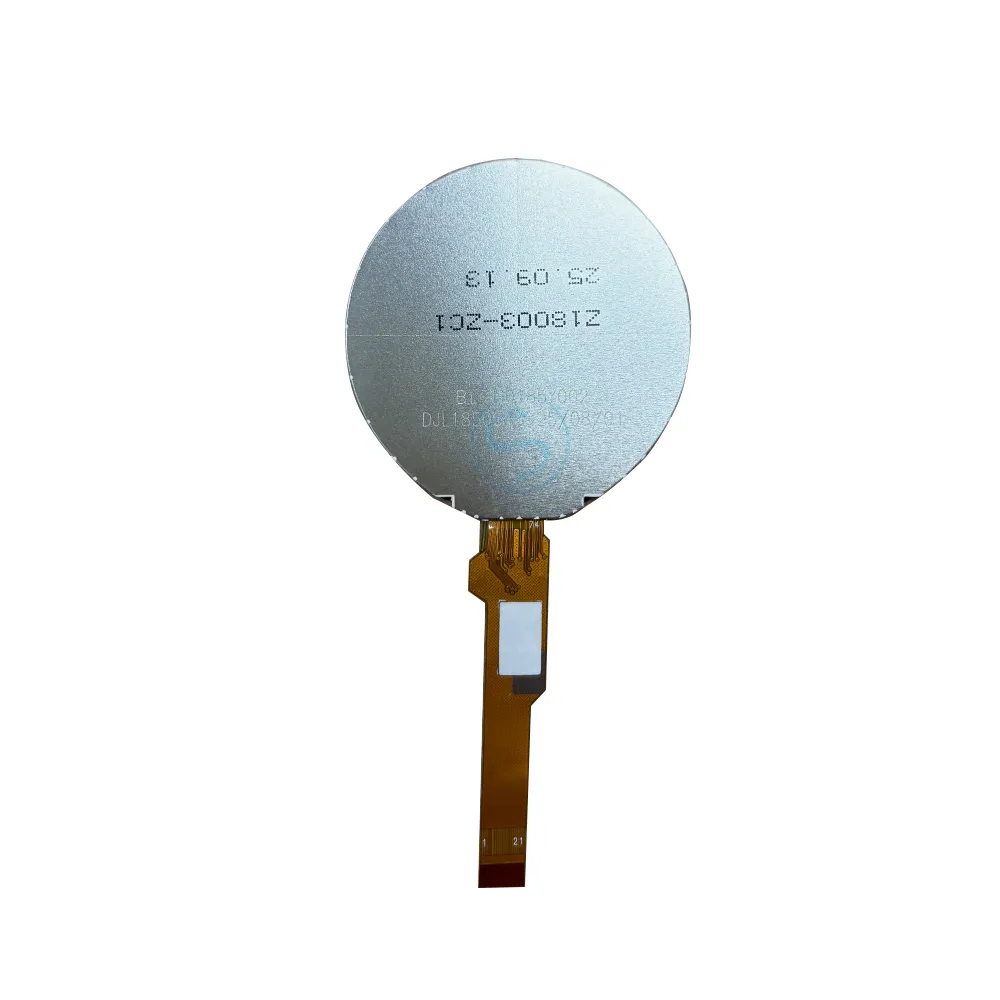

Z18003 1.8 Inch 360×360 Circular TFT LCD Display SPI Interface ST77916 Controller Screen for MCU Based Systems

  • 1.8 inch circular TFT LCD display

  • 360×360 high-resolution round screen

  • SPI interface for easy MCU integration

  • ST77916 driver controller

  • Smooth graphics and clear text display

  • Compact size with low power consumption

  • Suitable for circular UI designs

  • OEM customization support available


Overview of Z18003 1.8 Inch 360×360 Circular TFT LCD Display SPI Interface ST77916 Controller Screen for MCU Based Systems

1

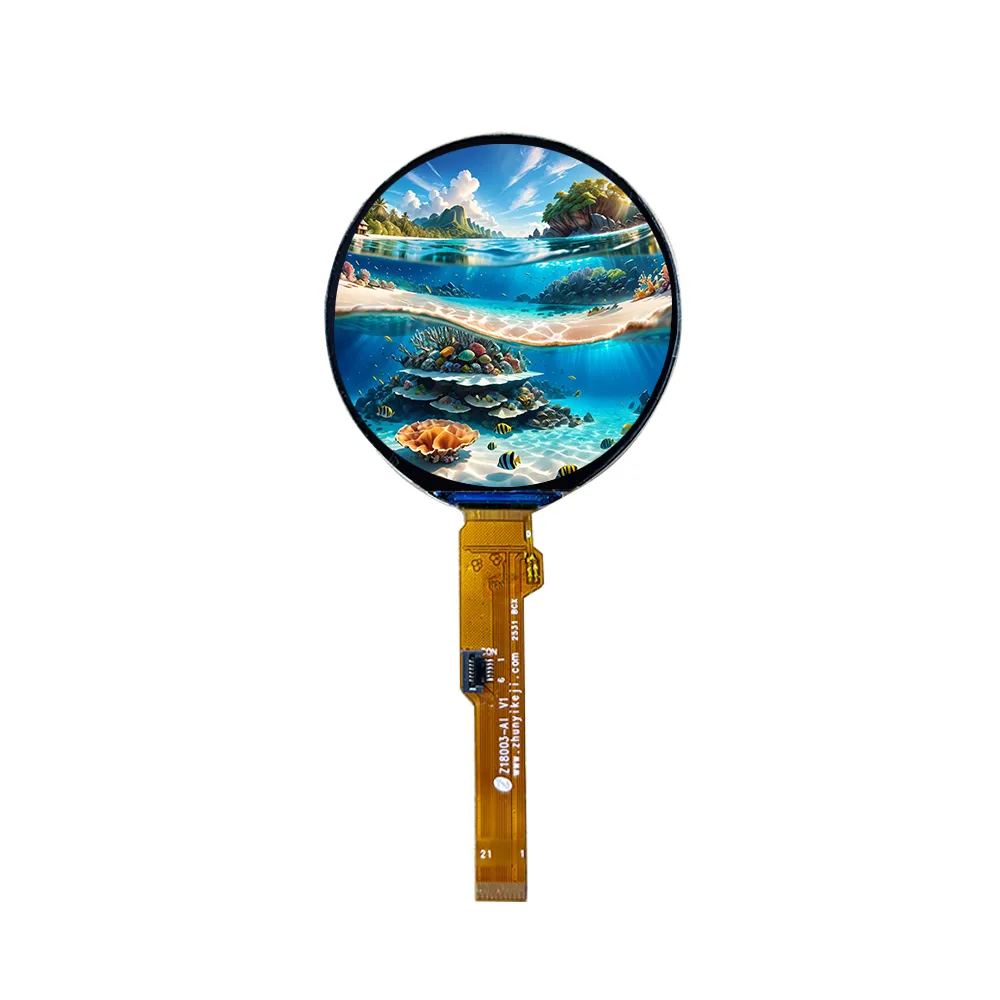

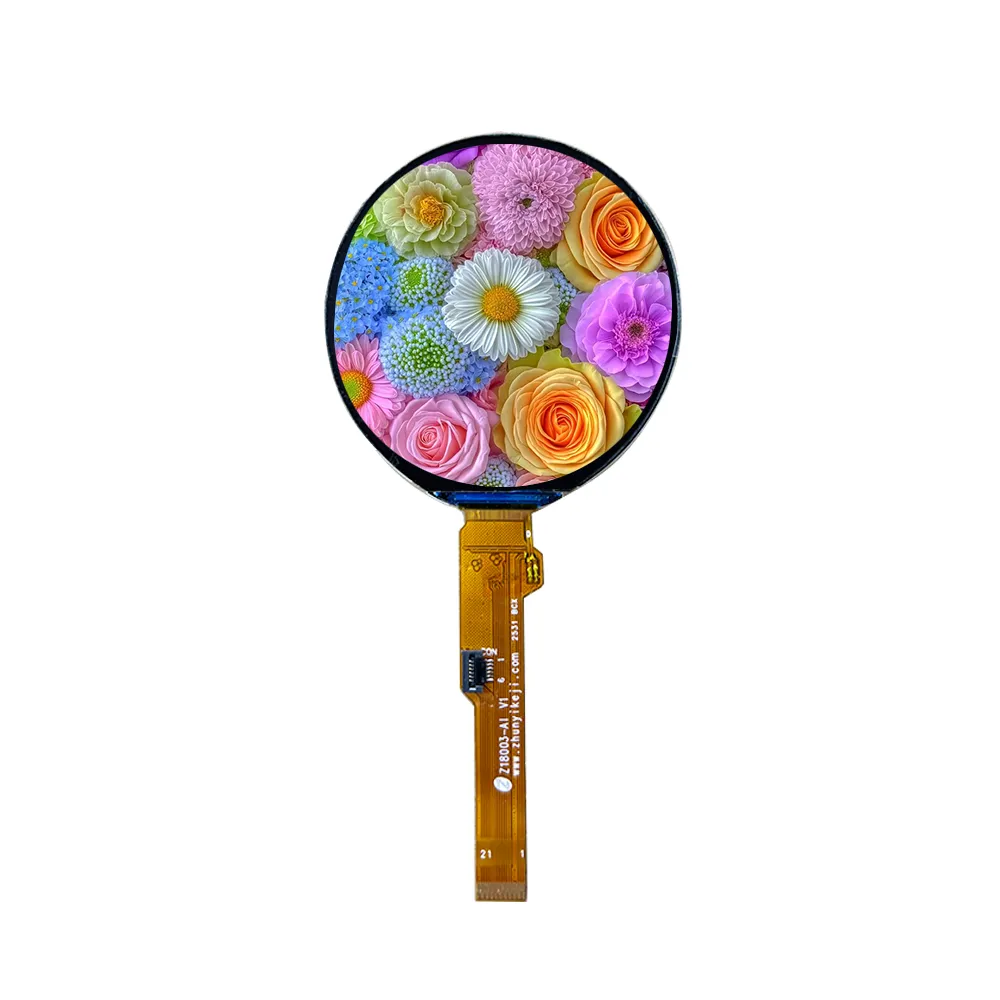

Z18003 is a color active matrix thin film transistor (TFT) liquid crystal display (LCD) .This 1.8 inch round TFT LCD display features a 360×360 resolution, delivering sharp image quality in a compact circular form factor. Driven by the ST77916 controller and using an SPI interface, the display ensures stable performance and efficient integration with MCU-based systems.

2

If you have special requirement,like driver IC,interface,FPC,touch panel,backlight etc, we can also customize for you.

3

Our factory carry out ISO 9001:2015 and IATF16949: 2016 quality standard system strictly, all the lcd display passed ROHS, REACH Certification

4

The 1.8" round LCD Screen is perfect for Smart watches, fitness devices, smart healthcare equipment, compact consumer electronics etc


Specifications of Z18003 1.8 Inch 360×360 Circular TFT LCD Display SPI Interface ST77916 Controller Screen for MCU Based Systems


No.

Item

Specification

Unit

1

Display Size (Diagonal)

1.8

inch

2

Display Resolution

360(H) × RGB × 360(V)

pixels

3

Pixel Pitch

126.9 (H)×126.9 (V)


um


4

LCD Module Dimension

(Without FPC)


47.99(W) ×49.86(H) ×1.96(T)


mm


5

Touch Display Dimension

(Without FPC)


55.8(W) ×55.8(H) ×3.09(T)


mm

6

LCD Active Area

45.68(W) ×45.68(H)

mm

7

View Direction (Gray Inversion)

FULL VIEW


-

8

LCM Driver IC

ST77916


-

9

Pixel Arrangement

RGB-Stripe


-

10

Display Mode

Normal Black


-

11

FPC Version

Z18003-AI V1


-

12

TFT Display Interface

SPI


-

13

TP Interface

I2C


-

14

PCAP Multi Touch

1

point

15

Touch Screen Report Rate

100

Hz

16

Operating Temperature

-20°C~ 70°C


-

17

Storage Temperature

-30°C~ 80°C


-

18

Backlight Arrangement

LED/1 Series 3 Parallel (3 lights in total)


-

19

Display+Touch    Luminance

Typ.: 290

nit

20

Weight

TBD

kg
