Z15002 Factory Price 1.5 Inch 240x240 Square TFT LCD SPI/MCU Interface ST7789 Controller OEM Available

  • Size: 1.5 inch Square shape

  • Resolution: 240x240 pixels

  • Interface: 4-wire SPI / 8-bit MCU

  • View Angle: IPS wide viewing

  • Driver IC: ST7789 for stable performance

  • Compact, low-power, and lightweight design

  • Compatible with Arduino, ESP32, STM32, and raspberry Pi


Request A Quote
1
1
lcd 1
1
1
1
1
1

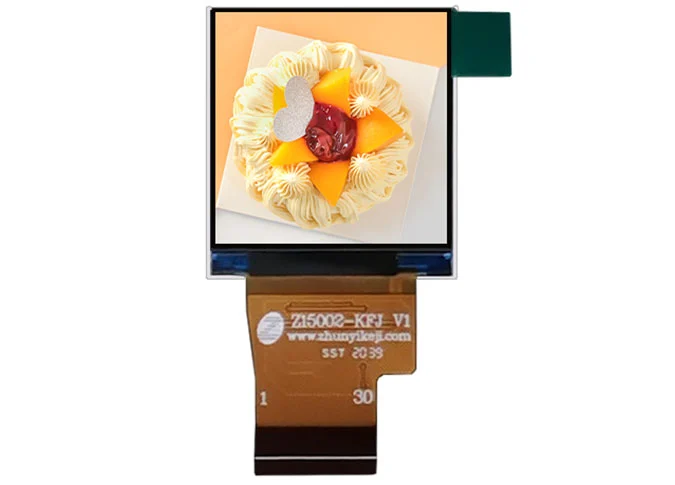

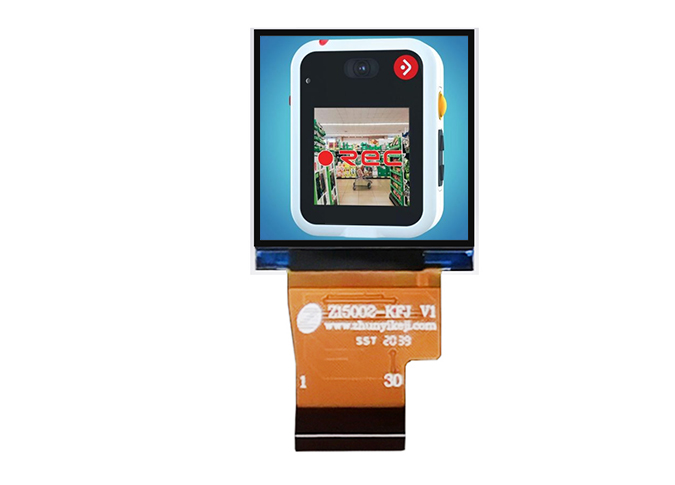

Overview of Z15002 1.5 Inch Square LCD Display Screen with MCU Interface 240*240

1

Z15002 is a color active matrix thin film transistor (TFT) liquid crystal display (LCD) .This 1.5 inch square TFT LCD display offers 240x240 resolution with ST7789 controller, featuring SPI and optional MCU parallel interface. With its IPS panel, it delivers excellent viewing angles and vivid color performance. This handheld LCD display is 350 cd/m² brightness.

2

If you have special requirement, like drive IC interface, FPC, touch panel, backlight, etc, the square LCD module manufacturer can also customize for you.

3

As a leading China LCD module manufacturer, our factory carry out ISO 9001: 2015 and IATF16949: 2016 quality standard system strictly, all the LCD display passed ROHS, REACH Certification.

4

This 1.5 inch square screen is perfect for health monitors, wearable UIs, mini dashboards,Smart devices, IoT panels, DIY electronics, wearables, remote controller, music players,electronic toys,smart home,home automation, thermometers, data loggers etc

Specifications of 1.5 Inch Square LCD Display Screen with MCU Interface 240*240


No.

Item

Specification

Unit

1

Display Size (Diagonal)

1.5

inch

2

Display Resolution

240 (H) × RGB × 240 (V）

pixels

3

Pixel Pitch

115.5 (H) × 115.5 (V）

um

4

LCM Outline Dimension

(Without FPC）

31.52 (W) × 33.72 (H) ×1.94 (T)

mm

5

LCD Outline Dimension

30.12 (W) × 33.12 (H) × 0.8 (T)

mm

6

LCD Active Area

27.72 (W) × 27.72 (H）

mm

7

View Direction (Gray Inversion)

FULL VIEW

-

8

Driver IC

ST7789V2-G4-A

-

9

Pixel Arrangement

RGB-Stripe

-

10

Display Mode

Normal Black

-

11

Pixel Driving Element

a-Si TFT

-

12

LCD Transmittance

Typ.: 4.9% Min: 4.4%

-

13

LCD Contrast Ratio

Typ.: 900 Min: 700

-

14

FPC Version

Z15002-KFJ V1

-

15

Interface

8-bit MCU/16-bit MCU

-

16

Operating Temperature

-20°C~ 70°C

-

17

Storage Temperature

-30°C~ 80°C

-

18

Backlight Arrangement

LED/1 Series 3 Parallel (3 lights in total)

-

19

Luminance

320

nit

20

Weight

0.003

kg


Interface Definition Description of 1.5 Inch Square LCD Display Screen with MCU Interface 240*240


PIN NO.

PIN DEF.

FUNCTION DESC.

1

LEDA

POWER SUPPLY- FOR BACKLIGHT ANODE

2

LEDK

POWER SUPPLY- FOR BACKLIGHT CATHODE

3

GND

Ground

4

VCC

POWER SUPPLY (2.8V/3.3V）

5

IOVCC

I/O POWER SUPPLY (1.8V）

6

GND

Ground

7-22

B17-B0

DATA BUS

23

GND

Ground

24

RD

Read enable in 8080 MCU parallel interface

25

WR

Read enable in 8080 MCU parallel interface

26

RS

Ground

27

CS

Chip selection signal PIN

28

IM0

IM0→0,16-bit MCU (B0-B7, B10-B17）

29

RESET

LCM RESET PIN

30

GND

Ground

RESET voltage should be consistent with VDDI voltage, or there probably is black screen fault when power on.
