Z13002 Factory Direct 1.3 Inch 240*240 SPI Square IPS TFT LCD Display for Embedded Systems

  • Size: 1.3 inch square display

  • Resolution: 240x240 full-color pixels, crisp output

  • Interface； 4-wire SPI fast and easy integration

  • View Angle: IPS wide view

  • Compatible:ESP32, Arduino, STM32 and Raspberry Pi

  • Driver IC: ST7789 or optional customization

  • Custom Services: Touch panel bonding, FPC design, brightness adjustment, cover lens, logo silk print

  • ISO9001,IATF16949,ROHS,REACH certified factory


Request A Quote
1
1
1
ips st7789
lcd display spi interface
lcd spi interface
spi tft lcd suppliers
1
1
1
1

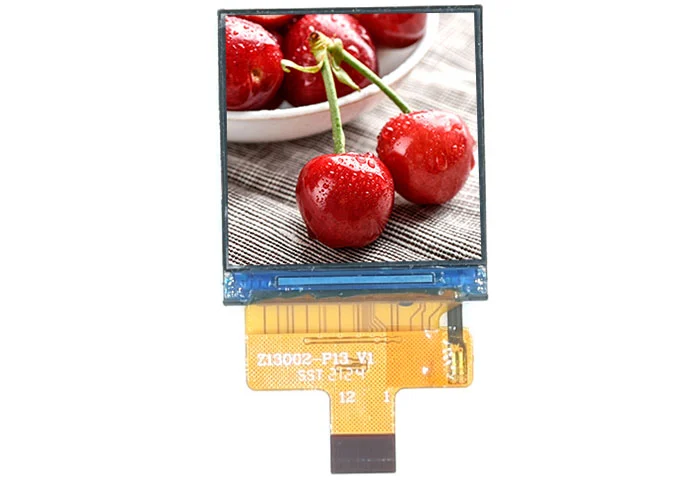

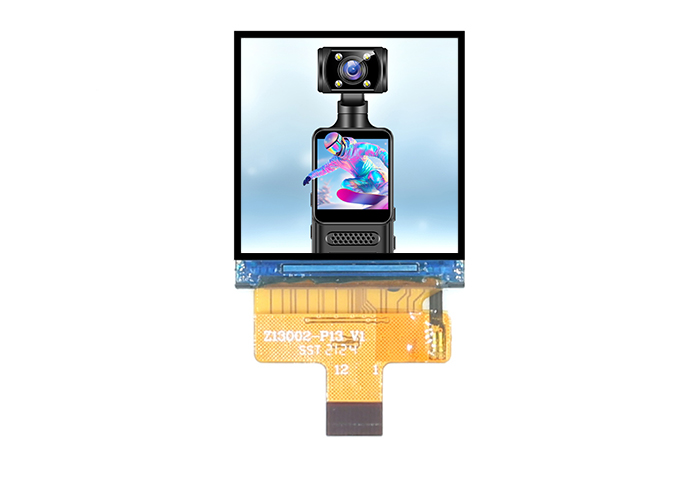

Overview of Z13002 1.3 Inch 240*240 SPI Square IPS TFT LCD Display for Embedded Systems

1

Z13002 is a color active matrix thin film transistor (TFT) liquid crystal display (LCD). This 1.3" square TFT LCD module features a vivid 240x240 pixel resolution with an SPI interface and the reliable ST7789 controller. Its IPS panel offers wide viewing angles and consistent color performance, making it suitable for embedded systems and compact devices.This handheld LCD display is 500 cd/m² brightness.

2

If you have special requirement, like drive IC, interface, FPC, touch panel, backlight, etc, the professional China LCD module manufacturer can also customize for you.

3

As a professional square LCD module supplier, we carry out ISO 9001: 2015 and IATF16949: 2016 quality standard system strictly, all the LCD display passed ROHS, REACH Certification.

4

This 1.3 inch square LCD panel is perfect for smart devices, handheld gadgets, mini control panels,hobby electronics ,medical devices, meters,gateways,IoT Sensors, measurement devices,UI dashboard,barcode scanners,smart toys etc.

Specifications of 1.3 Inch 240*240 SPI Square IPS TFT LCD Display for Embedded Systems


No.

Item

Specification

Unit

1

Display Size (Diagonal)

1.3

inch

2

Display Resolution

240 (H) × RGB × 240 (V）

pixels

3

Pixel Pitch

97.5 (H) × 97.5 (V)

um

4

LCM Outline Dimension

(Without FPC）

26.17 (W) × 29.22 (H) ×1.5 (T)

mm

5

LCD Outline Dimension

25.8 (W) × 28.4 (H) × 0.4 (T)

mm

6

LCD Active Area

23.4 (W) × 23.4 (H）

mm

7

View Direction (Gray Inversion)

FULL VIEW

-

8

Driver IC

ST7789V2-G4-A

-

9

Pixel Arrangement

RGB-Stripe

-

10

Display Mode

Normal Black

-

11

Pixel driving Element

a-Si TFT

-

12

LCD Transmittance

Typ.: 4.65% Min: 4.18%

-

13

LCD Contrast Ratio

Typ.: 800 Min: 640

-

14

FPC Version

Z13002-P13 V1

-

15

Interface

SPI

-

16

Operating Temperature

-20°C~ 70°C

-

17

Storage Temperature

-30°C~ 80°C

-

18

Backlight Arrangement

LED/1 Series 2 Parallel (2 lights in total)

-

19

Luminance

520

nit

20

Weight

0.003

kg


Interface Definition Description of 1.3 Inch 240*240 SPI Square IPS TFT LCD Display for Embedded Systems


PIN NO.

PIN DEF.

FUNCTION DESC.

1

GND

Ground

2

LEDK

POWER SUPPLY- FOR BACKLIGHT CATHODE

3

LEDA

POWER SUPPLY- FOR BACKLIGHT ANODE

4

VDD

POWER SUPPLY（2.8V/3.3V）

5-6

GND

Ground

7

D/C

LCM Display data/command selection pin in parallel interface

8

CS

LCM SPI Chip Select PIN

9

SCL

LCM SPI clock (SCL) clock (SCLK)

10

SDA

LCM SPI data (SDA) data input (MOSI)

11

RESET

LCM RESET PIN

12

GND

Ground

RESET voltage should be consistent with VDDI voltage, or there probably is black screen fault when power on.
