Z123001 High Brightness 12.3 Inch Automotive Stretched Bar LCD Display 1920*720 LVDS Interface Ultra-Wide View

  • Resolution: 1920*720

  • Interface: LVDS

  • View Angle: IPS

  • Brightness: 1300 nits

  • Touch Panel: Support CTP/RTP

  • Supply Type: Factory/Manufacturer

  • Certification:ISO9001,IATF16949,ROHS,REACH

12
12
z123001 high brigthless 12
z123001 high brigthless 12
z123001 high brigthless 12
z123001 high brigthless 12

Overview of Z123001 High Brigthless 12.3 Inch 1920*720 Bar TFT LCD Screen Panel FT7251 LVDS Interface

1

Z123001 is a color active matrix thin film transistor (TFT) liquid crystal display (LCD) with 1920*720 resolution. IPS(In-plane Switching) technique make this 12.3" LCD module have a wider view angle..This a-Si TFT LCD come with LVDS interface.The square TFT screen built-in FT7251 driver IC.

2

If you have special requirements, like drive IC, interface, FPC, touch panel, brightness, color, backlight, touch panel, etc, as a custom display manufacturer, we can also customize for you.

3

As a square LCD display supplier, our factory carry out ISO 9001: 2015 and IATF16949: 2016 quality standard system strictly, all the LCD display passed ROHS, REACH Certification.

4

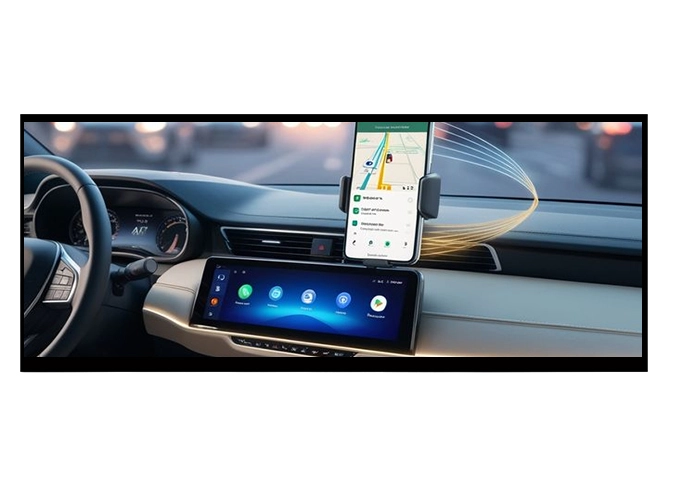

The 12.3" bar LCD Screen is widely used onvehicle interfaces,Rear-seat displays,digital clusters,Marine navigation,Public transportation,integrating multimedia,Gaming Simulators,VR Cockpits,Retail Shelf Edge Displays etc ect

No.ItemSpecificationUnitNote
1LCD size12.3inch
2Resolution1920RGB×720

3Pixel ArrangementRGB

4Model TypeLCM

5TFT TechnologyFFS

6Touch TechnologyIn-cell
Generated in driver IC
7Display modeNormally Black--
8Active Area292.032×109.512mm
9Dot pitch0.1521×0.1521mm
10Display Colors16.7Mbits
11NTSC70%(Min.),75%(typ.)
CIE 1931
12LCM Outline Dimension299.5×123×5.92mmAccording to drawing
13Interface2-PORT-LVDS (VESA)

14Driver ICFT7251

15Method of InversionColumn Inversion

16Weight-282g±5g
17Multi-Touch≥5 point

18Touch AccuracyCenter≤±1 , Edge ≤±2.0mm@8mm Copper Pillar
19Touch LinearityCenter≤±1 , Edge ≤±2.0mm@8mm Copper Pillar
20Jitterfixed touch input ±1mm , touch input ±1.5mmmm
21Report rate60Hz, Up to≥120Hz

22Finger separation15 mm(x-y axis),18mm(diagonal)mm
23Anti-WaterSupport

24Glove SupportPMMA/Leather<3mm,≤2 point

25Operating temp. range-40~+85No damage, Ambient temperature between -
40℃ and -30℃ with
functional restrictions
26Storage temp. range-40~+95
27Touch force0~3N
28LCFWithout

29NTCMurata/NCP15XH103F0SRC
10KΩ±1%
30Polarizer Axis directionUp pol:0°/ Down pol:90°
