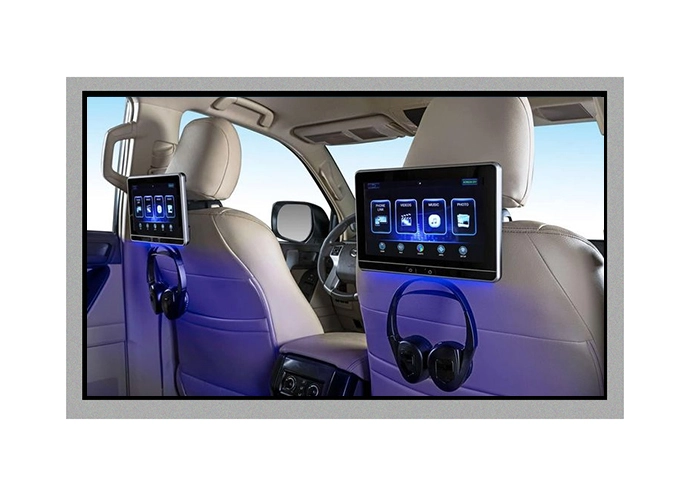

Z121001 12.1 inch LCD Display 1800nits 1280*800 LVDS interface Landscape 16.7M Colors TFT Screen Module

  • Resolution: 1280*800

  • Interface: Dual-channel LVDS interface, supports stable high-speed data

  • View Angle: IPS wide angle

  • Brightness: 1800 nits,Sunlight readable

  • Touch Panel: Support CTP/RTP

  • Color Depth: 16.7M color

  • Mounting: Landscape format, supports open-frame and panel-mount designs

  • ISO9001,IATF16949,ROHS,REACH certified factory


Request A Quote
12
12
z121001 1
z121001 2
z121001 3
z121001 4
z121001 5

Overview of Z121001 High Brightness 12.1 inch LCD Display 1800nits 1280*800 TFT Screen LVDS Interface

1

Z121001 is a color active matrix thin film transistor (TFT) liquid crystal display (LCD) with a 1280x800 resolution and supports 16.7 million colors for outstanding color depth. With a high-brightness backlight and wide viewing angles in landscape mode.


2

If you have special requirement, like driver IC, interface, FPC, touch panel, backlight etc, we can also customize for you.

3

This 12.1" WXGA LCD compatible with Linux-based Systems,Windows OS (Win7/10/11),Android Systems,Raspberry Pi / SBCs (Single Board Computers) ,ARM Cortex-M / FPGA Platforms and other platform

4

12.1 inch LCD screen is widely used on robot, PLC control ,HMI,diagnostic interfaces,Smart Home,Building Control,Automotive/Marine Displays,Kiosks & Vending Machines,Test & Measurement Devices,Security Systems ect

Specifications of Z121001 High Brightness 12.1 inch LCD Display 1800nits 1280*800 TFT Screen LVDS Interface


Parameter

Specification

Unit

Note

Display size

12. 1 ” (Diagonal)

inch


Active area

261.120 (H)   ×  163.2(V)

mm


Pixel Format

1280(H) ×800(V)

（1pixel = R + G + B dot）

pixel


Pixel pitch

0.204(H) x 0.204 (V)

mm


Pixel configuration

R , G, B vertical stripe



Display mode

Normally black



Surface Treatment

AG42



Contrast Ratio

1200 typ



Color Gamut

NTSC 72%typ



Luminance

1800 typ

cd/m2



Interface Definition Description of Z121001 High Brightness 12.1 inch LCD Display 1800nits 1280*800 TFT Screen LVDS Interface


Terminal

Symbol

Functions

1

NC

No Connection.

2-4

VDD

Power Supply For LCD, VDD=3. 3V.

5

NC

No Connection.

6-7

GND

Ground.

8

RIN0-

LVDSData differential signal input pins.

9

RIN0+

LVDS Data differential signal input pins.

10

GND

Ground.

11

RIN1-

LVDS  Data differential signal input pins.

12

RIN1+

LVDS  Data differential signal input pins.

13

GND

Ground.

14

RIN2-

LVDS  Data differential signal input pins.

15

RIN2+

LVDS  Data differential signal input pins.

16

GND

Ground.

17

LVDS_CLK-

LVDS CLOCK differential signal input pins.

18

LVDS_CLK+

LVDS CLOCK differential signal input pins.

19

GND

Ground.

20

RIN3-

LVDSData differential signal input pins.

21

RIN3+

LVDS Data differential signal input pins.

22

GND

Ground.

23-24

NC

No Connection.

25

GND

Ground.

26

SDA

Serial data input/output for I2C Interface.

27

SCL

Clock Input for I2C interface.

28

GND

Ground.

29-30

NC

No Connection.

31-33

GND

Ground.

34

NC

No Connection.

35

PWM

PWM dimming control input.

36

LED_EN

Chip enable (active high).

37

NC

No Connection.

38-40

VLED

LED Power supply input, VLED=5V-24V, 12V TYP.
