Z102502 Ultra-wide 64:24 10.25 inch 1920x720 Stretched Bar Incell LCD Display LVDS Interface Intergated Touch

  • Size: 10.25" diagonal, stretched bar format

  • Resolution: 1200x1920 pixels,Ultra-wide 64:24 aspect ratio

  • Interface: MIPI DSI (display), I2C (touch)

  • View angle:IPS,full viewing

  • Touch: Integrated in-cell capacitive touch

  • Advantages: Slim form factor, lightweight, and vertical-friendly layout

  • Custom: FPC design, brightness adjustment, cover glass,interface, logo,silk print

  • ISO9001,IATF16949,ROHS,REACH certified factory

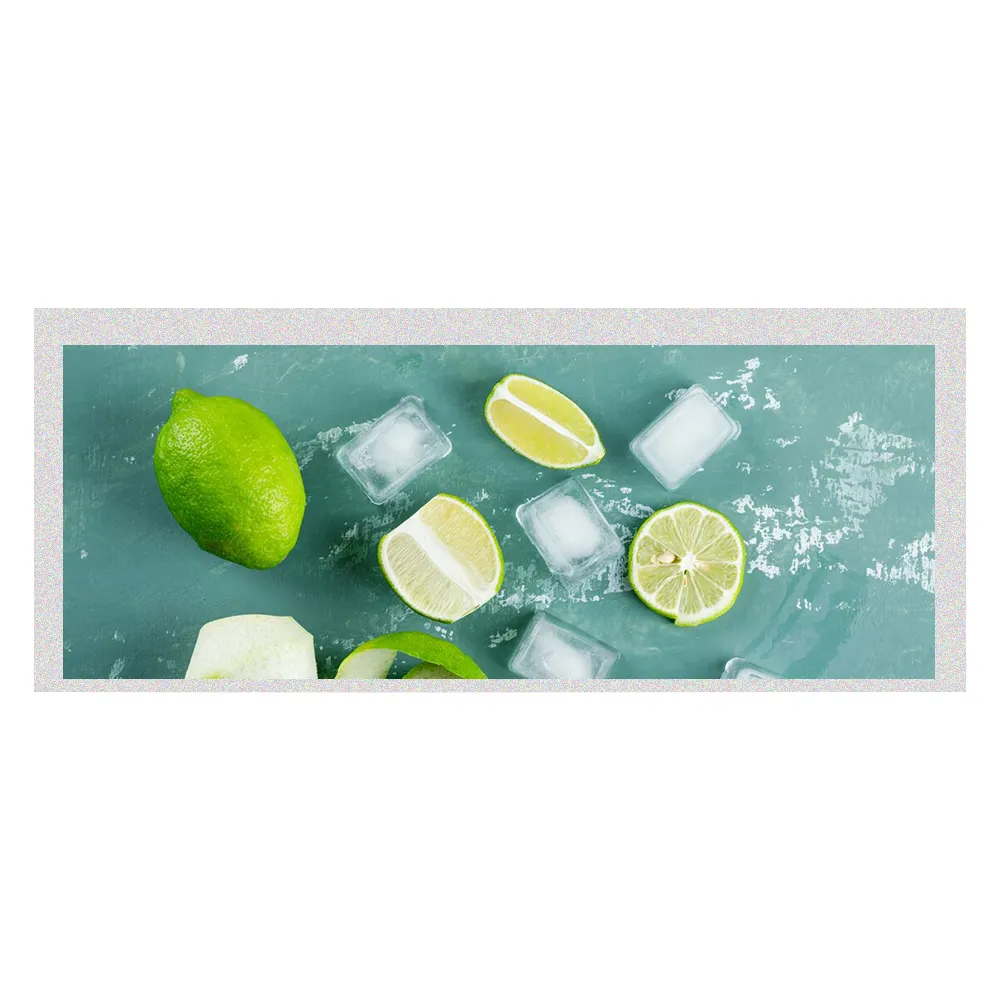

z102502 (3)
z102502 (3)
z102502 (2)

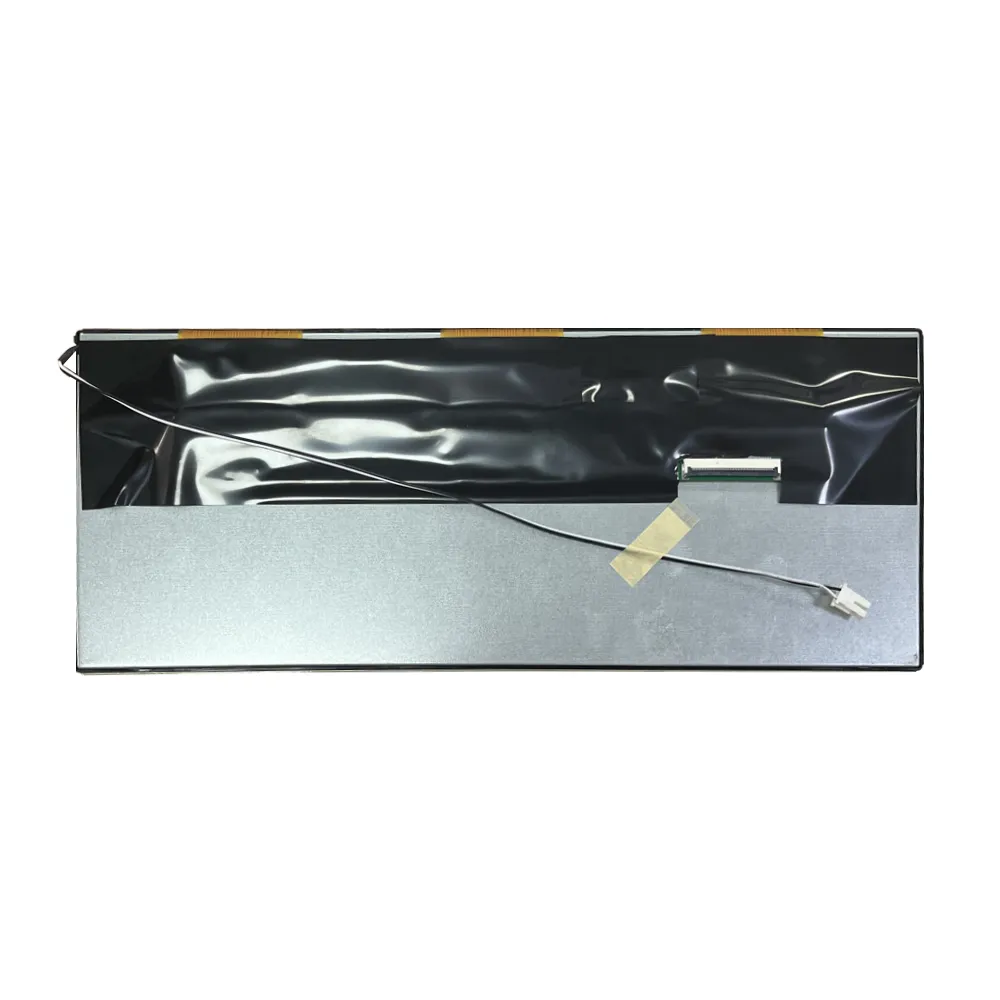

z102502 (1)

Overview of Ultra-wide 64:24 10.25 inch 1920x720 Stretched Bar Incell LCD Display LVDS Interface Intergated Touch

1

Z102502 is a color active matrix thin film transistor (TFT) liquid crystal display(LCD).

Designed for applications demanding a wide yet slim display, this 10.25-inch stretched bar LCD panel delivers sharp visuals with its 1920×720 resolution. Featuring integrated in-cell capacitive touch technology, it combines touch and display layers seamlessly to offer a slim, lightweight form factor ideal for modern embedded devices.


2

This bar type 10.25 inch incell screen compatible with MediaTek MT8167/MT8516,Raspberry Pi CM4,STM32MP157/MP1 series,Rockchip RK3568/RK3399,NXP i.MX 8M Mini/i.MX 7ULP platforms and other systesm.

3

This 10.25 inch incell display is perfect for Vehicle dashboards,Digital rearview mirror bars,interactive digital signage,Smart vending machine,Energy monitoring,Diagnostic instruments,Digital menu boards,gaming kiosks ,Elevator status,Warehouse monitoring strips etc.

4

If you have special requirement, like interface(pin definition), FPC, cover glass, backlight(brightness),logo, silk print etc, we can customize for you.Our factory carry out ISO 9001: 2015 and IATF16949: 2016 quality standard system strictly, all the display passed ROHS, REACH Certification.



General Specification of Z102502 Ultra-wide 64:24 10.25 inch 1920x720 Stretched Bar Incell LCD Display LVDS Interface Intergated Touch


NO.ItemSpecification
1Display  resolution  (pixel)1920*RGB*720
2Active area (mm)243.648mm x 91.368mm
3Screen  size (inch)10.25
4Pixel pitc    (mm)0.1269mm x 0.1269mm
5Outline Dimension  (mm)265.2mm x 109.2mm x 9.35mm
6Weight (g)110g
7Surface treatmentHC/HC
8InterfaceLVDS
9ShipmentFOG
10Contrast ratio1100
11Response Time20ms
12Transmittance2.40%
