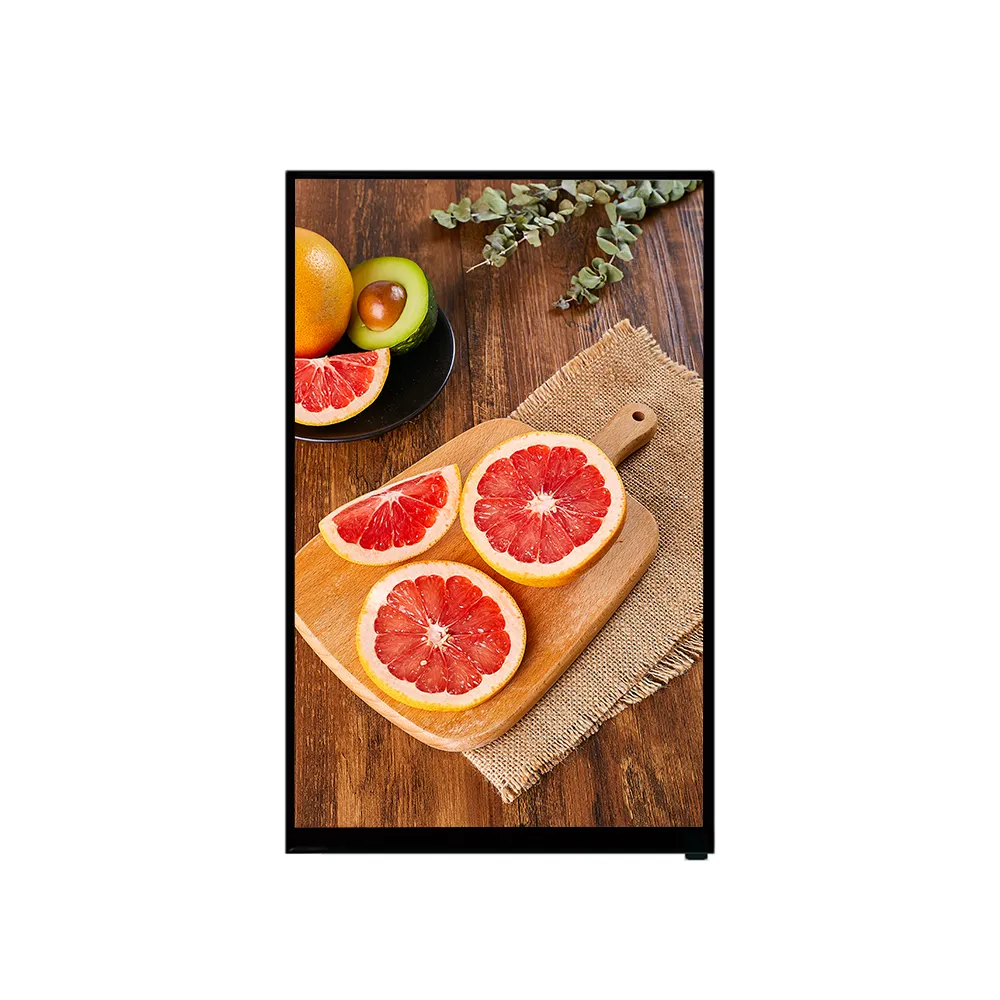

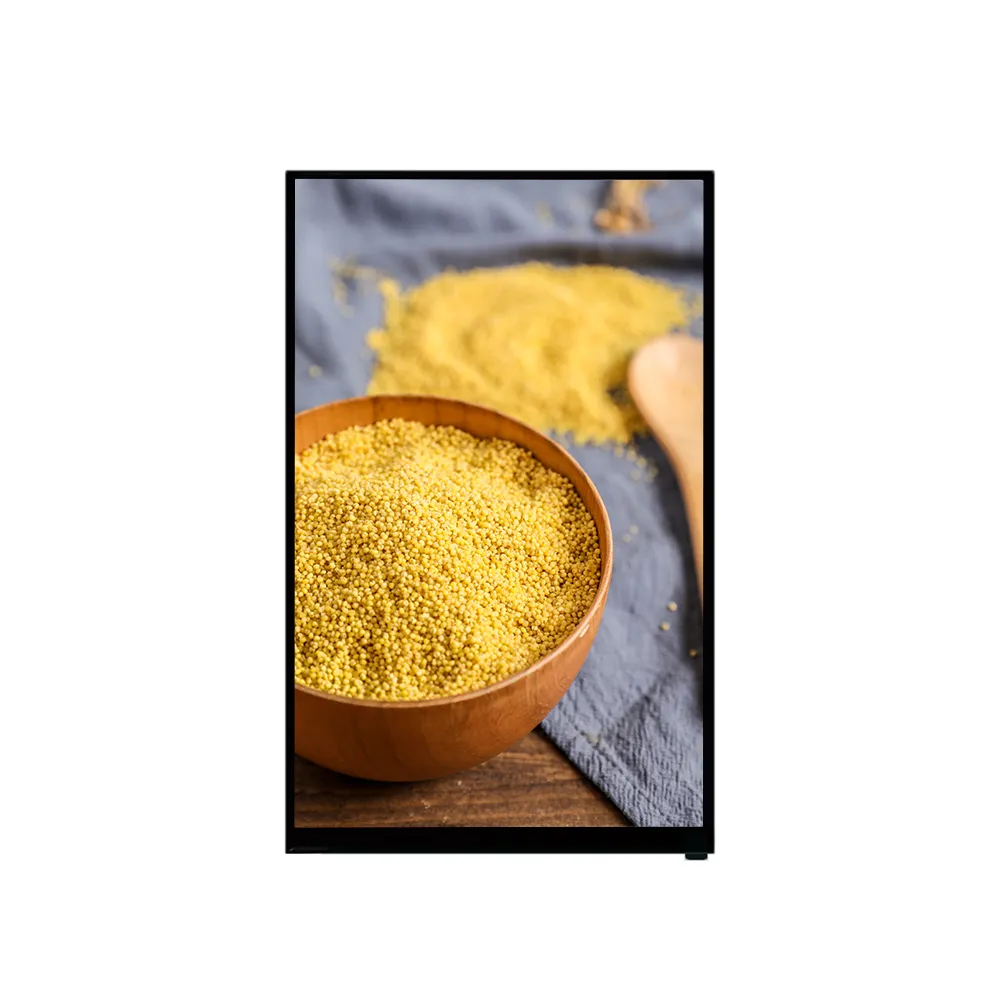

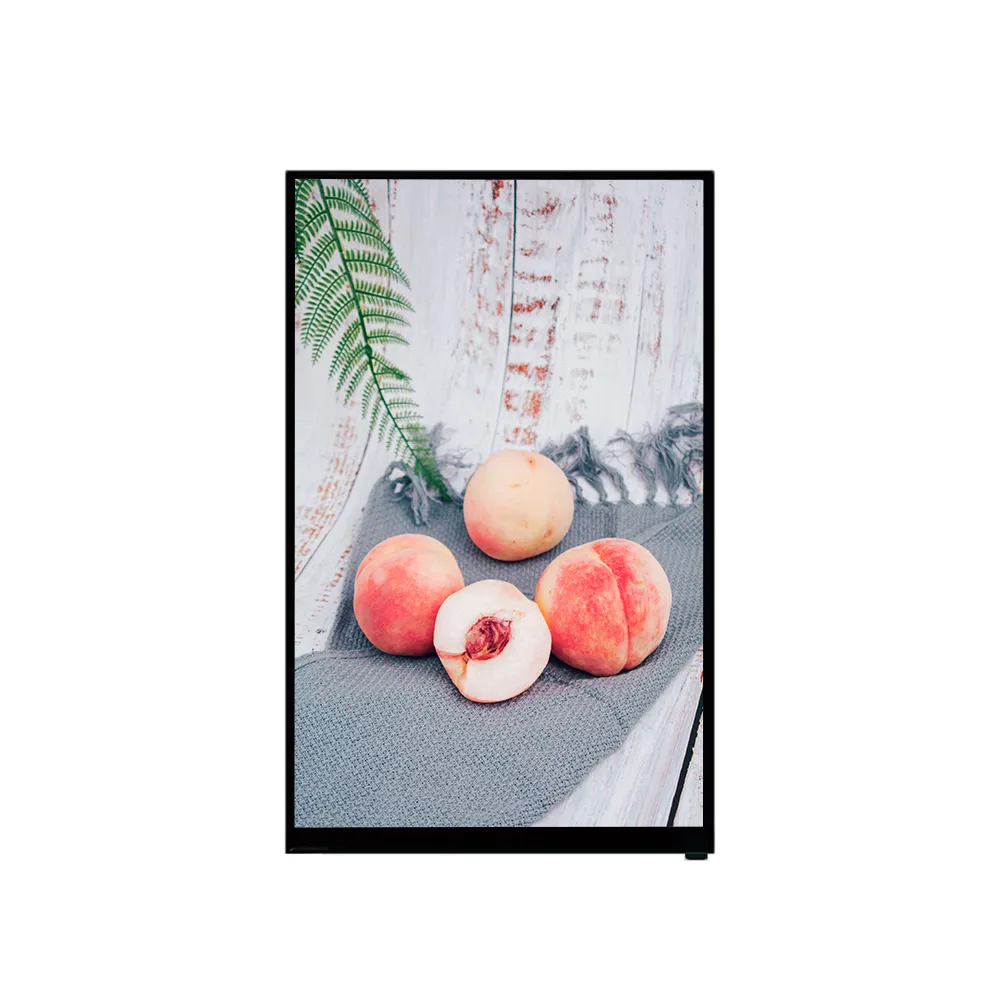

Z101065 Ultra-Thin Design 10.1 inch incell LCD Module 800x1280 Pixels Capacitive Touch MIPI Interface

  • Size: 10.1" diagonal, vertical layout

  • Resolution: 800x1280 pixels,16:10 aspect ratio

  • Interface: MIPI DSI (display), I2C (touch)

  • View angle:IPS,full viewing

  • Touch: Integrated in-cell capacitive touch

  • Advantages: Slim depth and low weight for sleek device profiles

  • Custom: FPC design, brightness adjustment, cover glass,interface, logo,silk print

  • ISO9001,IATF16949,ROHS,REACH certified factory


Request A Quote
z101017 2
z101017 2
z101017 4
z101017 3
z101017 6

Overview of Ultra-Thin Design 10.1 inch incell LCD Module 800x1280 Pixels Capacitive Touch MIPI Interface

1

Z101065  is a color active matrix thin film transistor (TFT) liquid crystal display(LCD).

This 10.1-inch TFT LCD integrates in-cell capacitive touch technology, reducing thickness and improving optical clarity. With an 800x1280 resolution and MIPI DSI for video and I²C for touch control, it's ideal for modern embedded designs requiring a slim, all-in-one touchscreen solution.


2

This 10.1 inch incell LCD display compatible with MediaTek MT8167/MT8516,Raspberry Pi CM4,STM32MP157/MP1 series,Rockchip RK3568/RK3399,NXP i.MX 8M Mini/i.MX 7ULP platforms and other systesm.

3

This 10.1 inch Integrated touch LCD screen is perfect for equipment diagnostics,smart energy enclosures,Digital instrumentation,Digital signage,Smart vending machine,medical diagnostic units,Mirror-integrated panels,logistics vehicles,EV charging terminals,Medical Kiosks,Digital Price Labels  etc.

4

If you have special requirement, like interface(pin definition), FPC, cover glass, backlight(brightness),logo, silk print etc, we can customize for you.Our factory carry out ISO 9001: 2015 and IATF16949: 2016 quality standard system strictly, all the display passed ROHS, REACH Certification.

General Specifications of Z101065 Ultra-Thin Design 10.1 inch incell LCD Module 800x1280 Pixels Capacitive Touch MIPI Interface


No.ItemSpecificationUnit
1Display Size (Diagonal)10. 1inch
2Display Resolution800（H） × RGB × 1280（V）pixels
3Pixel Pitch85.95（H） × 85.95（V）
um

LCD Module Dimension

4(Without FPC）139.62（W） ×226.54（H） ×2.42（T）mm

Touch Display Dimension

5(Without FPC）---mm
6LCD Active Area135.36 (H) x 216.576 (V)mm
7View Direction (Gray Inversion)FULL VIEW
-
8LCM Driver ICFT8201S
-
9Pixel ArrangementRGB-Stripe
-
10Display ModeNormal Black
-
11FPC VersionZ101065-P40 V1
-
12TFT Display InterfaceMIPI
-
13TP InterfaceI2C
-
14PCAP Multi Touch-10point
15Touch Screen Report Rate-120Hz
16Operating Temperature-20°C~ 70°C
-
17Storage Temperature-30°C~ 80°C
-
18Backlight ArrangementLED/6 Series 6 Parallel (36 lights in total)
-
19Display    LuminanceTyp.: 350nit
20WeightTBDkg





Interface Definition Description of Z101065 Ultra-Thin Design 10.1 inch incell LCD Module 800x1280 Pixels Capacitive Touch MIPI Interface


PIN NO.PIN SYMBOLFUNCTION DESC.
1月3日LEDAPOWER SUPPLY- FOR BACKLIGHT ANODE
4~7NCNot use
8~ 10LEDKPOWER SUPPLY- FOR BACKLIGHT CATHODE
11GNDGround
12NCNot use
13GNDGround
14D2PPositive MIPI differential data input
15D2NNegative MIPI differential data input
16GNDGround
17D1PPositive MIPI differential data input
18D1NNegative MIPI differential data input
19GNDGround
20CLKPPositive MIPI differential CLOCK input
21CLKNNegative MIPI differential CLOCK input
22GNDGround
23D0PPositive MIPI differential data input
24D0NNegative MIPI differential data input
25GNDGround
26D3PPositive MIPI differential data input
27D3NNegative MIPI differential data input
28GNDGround
29LCD_ID1LCM    ID    PIN
30LCD_RESETLCM    RESET    PIN
31LCD_ID2LCM    ID    PIN
32IOVCCI/O    POWER SUPPLY(1.8V)
33LCD_VCCPOWER SUPPLY(3.3V)
34TP_VCCTP    POWER SUPPLY(3.3V)
35TP_RESETTP    Reset    PIN(1.8V)
36TP_INTTP    Interrupt    PIN(1.8V)
37TP_SDATP    I2C data (SDA) data input (MOSI)(1.8V)
38TP_SCLTP    I2C clock (SCL) clock (SCLK)(1.8V)
39GNDGround
40NCNot use
RESET voltage should be consistent with VDDI voltage, or there probably is black screen fault when power on.
