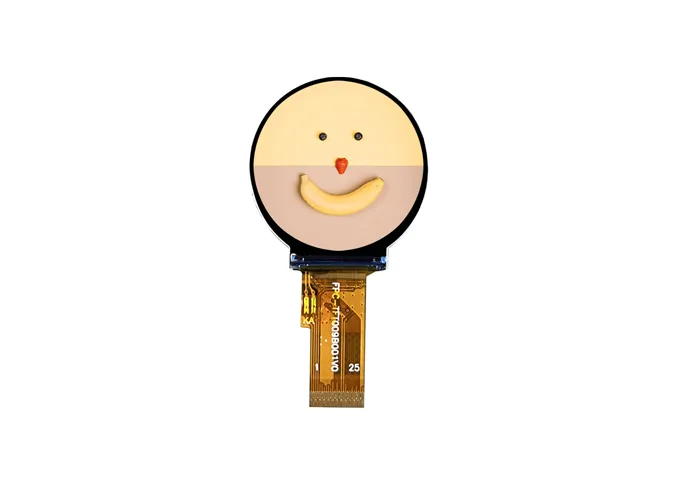

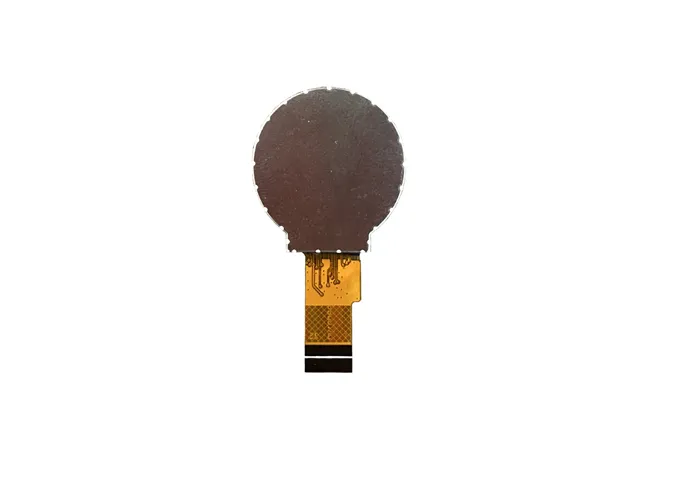

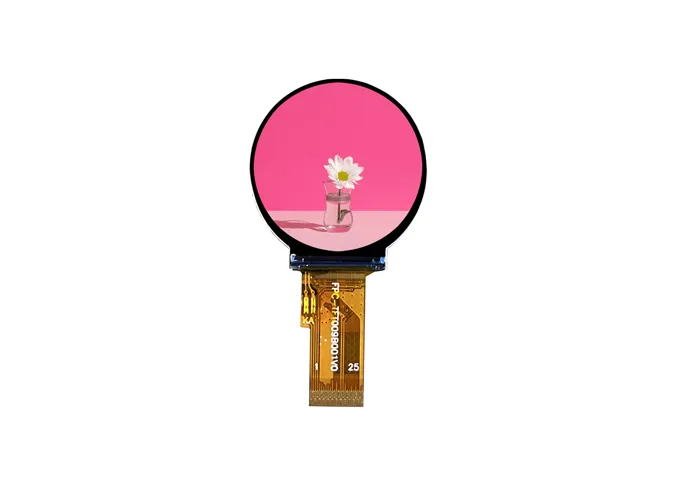

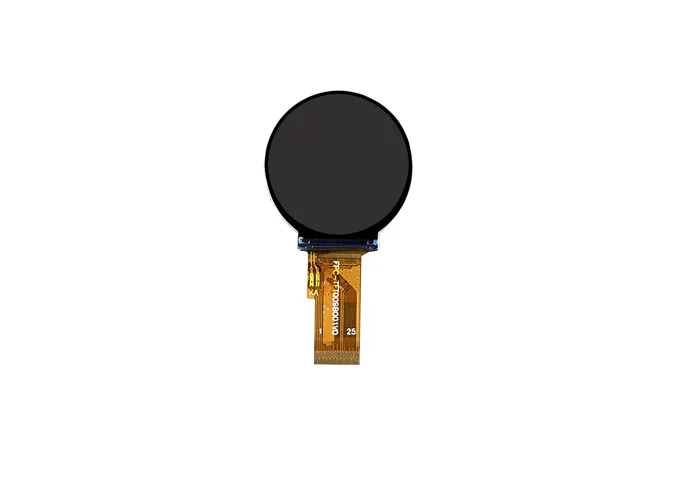

Z07101 Mini 0.71 inch Round TFT LCD Display 160×160 SPI MCU for Wearables IoT Device

1

Display Size (Diagonal)

0.71

inch

2

Display Resolution

160（H） × RGB × 160（V）

pixels

3

Pixel Pitch

112.5（H） × 112.5（V）

um

4

LCD Module Dimension

(Without FPC）

20. 12（W） ×22.3（H） ×1.9（T）

mm

5

Touch Display Dimension

(Without FPC）

-

mm

6

LCD Active Area

18（W） ×18（H）

mm

7

View Direction (Gray Inversion)

FULL VIEW

-

8

LCM Driver IC

GC9D01N

-

9

Pixel Arrangement

RGB-Stripe

-

10

Display Mode

Normal Black

-

11

FPC Version

Z07101-P14    V2

-

12

TFT Display Interface

SPI

-

13

TP Interface

-

-

14

PCAP Multi Touch

-

point

15

Touch Screen Report Rate

-

Hz

16

Operating Temperature

-20°C~ 70°C

-

17

Storage Temperature

-30°C~ 80°C

-

18

Backlight Arrangement

LED/1Series 1 Parallel (1 lights in total)

-

19

Display+Touch    Luminance

Typ.: 250

nit

20

Weight

TBD

kg

1

TE

Tearing    Effect    PIN

2

GND

Ground

3

RS

Data/Command Control

4

RST

LCM    RESET    PIN

5

SDA

SPI data input

6

CLK

SPI    clock (SCL)    clock    (SCLK)

7

CS

Chip Select PIN

8

VCI3.3

POWER SUPPLY(3.3V)

9

VDDIO/1.8V

I/O    POWER SUPPLY(1.8V)

10

LED+

POWER SUPPLY- FOR BACKLIGHT ANODE

11

LED-

POWER SUPPLY- FOR BACKLIGHT CATHODE

12

GND

Ground

13

ID

LCM ID PIN

14

GND

Ground

RESET voltage should be consistent with VDDI voltage, or there probably is black screen fault when power on.
