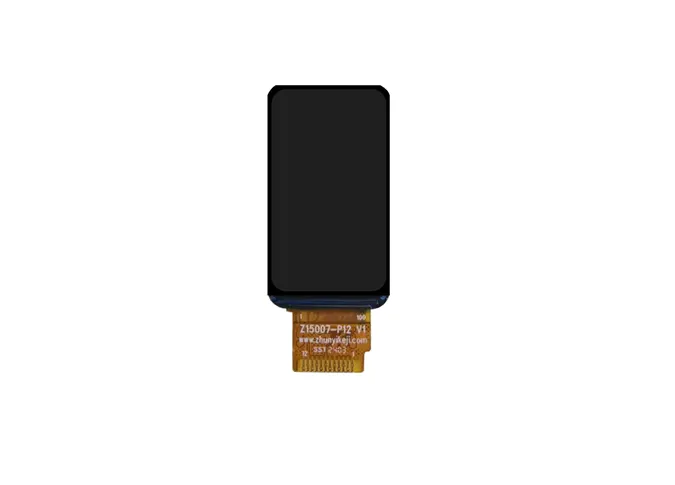

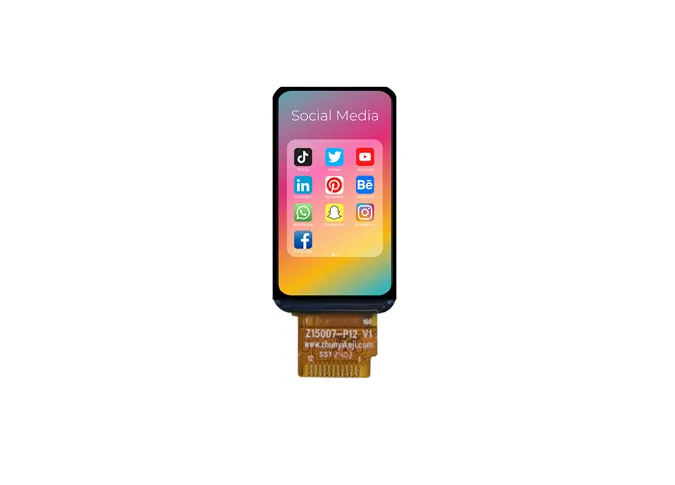

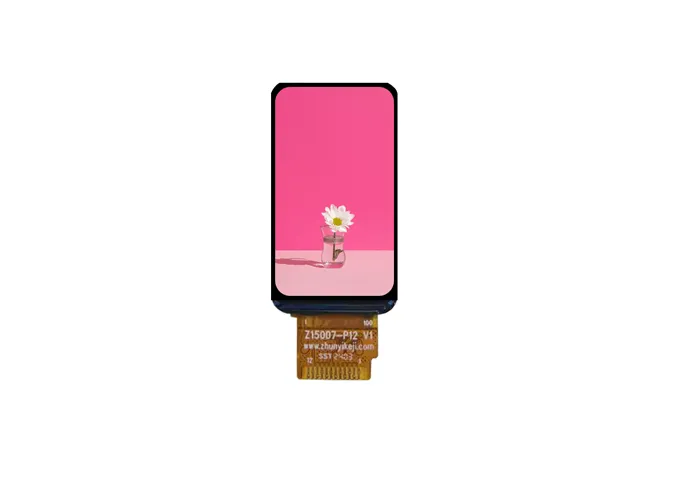

Z15012 Ultra Wide 1.47 inch Bar Type TFT LCD Display 170×320 SPI/MCU Interface ST7789 Controller

  • Display Size: 1.47 inch

  • Resolution: 170×320 pixels

  • Display Type: TFT LCD

  • Aspect Ratio: Stretched bar

  • Interface: SPI / MCU

  • Driver IC: ST7789

  • Color Depth: 262K / 65K colors

  • Low power consumption


Request A Quote

Overview of Ultra Wide 1.47 inch Bar Type TFT LCD Display 170×320 SPI/MCU Interface ST7789 Controller

1

Z15012 is a color active matrix thin film transistor (TFT) liquid crystal display (LCD) .This 1.47 inch stretched bar LCD display is designed for compact embedded systems that require a slim display format without sacrificing clarity. With a 170×320 resolution, it provides clear vertical information display such as icons, status data, and text. The SPI/MCU interface ensures easy integration with common microcontrollers, while the ST7789 controller delivers stable color output and reliable refresh performance.

2

If you have special requirement,like drive IC,interface,FPC,touch panel,backlight etc, we can also customize for you.


3

This LCD Display compatible with Arduino, Raspberry Pi, ESP32, STM32 etc


4

The 1.47" LCD Screen is widely used on Smart wearables, portable electronics, digital indicators, compact UI devices ect

General Specifications of Ultra Wide 1.47 inch Bar Type TFT LCD Display 170×320 SPI/MCU Interface ST7789 Controller

1. General Specifications

No.

Item

Specification

Unit

1

Display Size (Diagonal)

1.46

inch

2

Display Resolution

172(H） × RGB × 320（V）

pixels

3

Pixel Pitch

102.6(H）× 102.6（V）

um

4

LCD Module Dimension

(Without FPC）

19.65 (W) ×36..76 (H) ×1.60 (T)

mm

5

Touch Display Dimension

(Without FPC）

-

mm

6

LCD Active Area

17.6472（W） ×32.832（H）

mm

7

View Direction (Gray Inversion)

FULL VIEW

-

8

LCM Driver IC

ST7789P3

-

9

Pixel Arrangement

RGB-Stripe

-

10

Display Mode

Normal Black

-

11

FPC Version

Z15007-P12 V1

-

12

TFT Display Interface

SPI

-

13

TP Interface

-

-

14

PCAP Multi Touch

-

point

15

Touch Screen Report Rate

-

Hz

16

Operating Temperature

-20°C~ 70°C

-

17

Storage Temperature

-30°C~ 80°C

-

18

Backlight Arrangement

LED/1 Series 3 Parallel (3 lights in total)

-

19

Display Luminance

Typ.:650TYP

nit

20

Weight

TBD

kg



2. Interface Definition Description

PIN NO.

PIN SYMBOL

FUNCTION DESC.

1

GND

Ground

2

LEDK

POWER SUPPLY- FOR BACKLIGHT CATHODE

3

LEDA

POWER SUPPLY- FOR BACKLIGHT ANODE

4

VDD

POWER  SUPPLY

5-6

GND

Ground

7

D/C

SPI  Data/Command  Control  PIN

8

CS

Chip  selection  pin

9

SCL

SPI  clock (SCL)  clock  (SCLK)

10

SDA

SPI  data (SDA)  data  input (MOSI)

11

RESET

LCM  RESET  PIN

12

GND

Ground

RESET voltage should be consistent with VDDI voltage, or there probably is black screen fault when power on.


Products
Contact Us

Zhunyi Technology pays attention to the quality and service. Welcome to visit us and join hands for a prosperous future.

Contact Info
Email Us
sales@zhunyikeji.com
Call us
+86-0755-2790-3035
Address
2nd, 3rd and 8th Floor, Dongshan plant, Huafeng First Science Park, Sanwei, Bao'an District, Shenzhen, China
Request A Quote

RELATED Bar TFT LCD Display

Z784001 High Brightness 7.84 Inch 400*1280 Bar LCD Module OTA7290B Driver 4 Line MIPI Z784001 High Brightness 7.84 Inch 400*1280 Bar LCD Module OTA7290B Driver 4 Line MIPI
Z39901 3.99 Inch Bar LCD Display SPI+RGB Interface 400*960 ST7701S Controller Z39901 3.99 Inch Bar LCD Display SPI+RGB Interface 400*960 ST7701S Controller

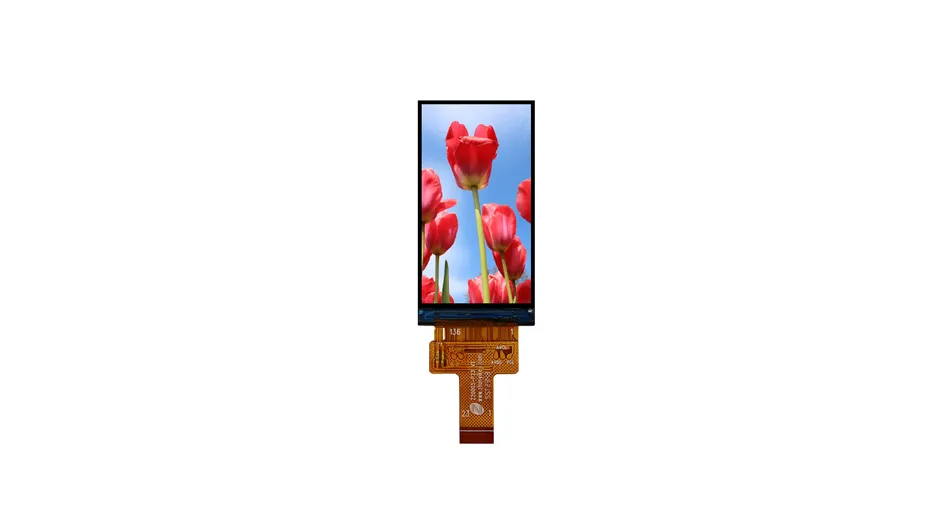

Z20005 1.9”Stretched Bar TFT LCD Screen 170×320 with SPI/MCU Interface Z20005 1.9”Stretched Bar TFT LCD Screen 170×320 with SPI/MCU Interface
