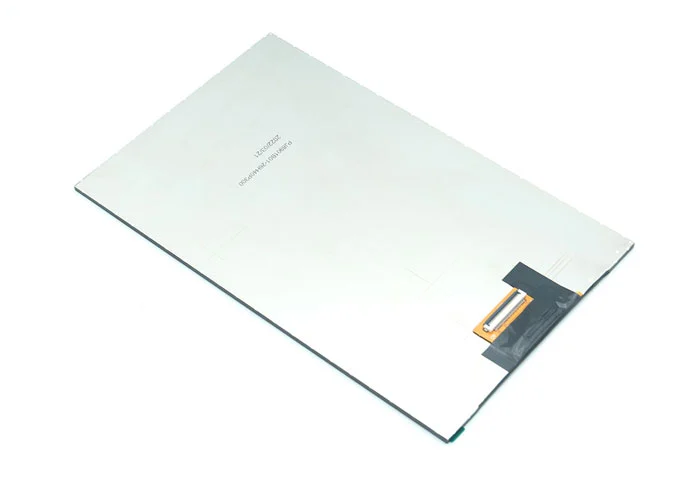

PJ8901B01 8.9 Inch LCD Display 800*1280 350 Nits Brightness 40PIN MIPI Interface

  • Size: 8.9 inch

  • Resolution: 800*1280

  • Active Area: 119.28*190.85

  • Interface: MIPI

  • View Angle: IPS

  • Brightness: 350 cd/m²

  • Touch Panel: Support CTP/RTP

  • Supply Type: Factory/Manufacturer

  • Certification: ISO9001, IATF16949, ROHS, REACH

Request A Quote
8
8
8
8
8
8
8
8
8
8
8
8
8
8

Overview of PJ8901B01 8.9 Inch LCD Display 800*1280 350 Nits Brightness 40PIN MIPI Interface

1

PJ8901B01 is a color active matrix thin film transistor (TFT) liquid crystal display (LCD) with 800*1280 resolution. IPS (In-plane Switching) technique make this 9" Square TFT  LCD module have a wider view angle. This LCD display is built-in GH8555BC-02 driver IC. This a-Si TFT LCD module come with MIPI interface, 350cd/m² brightness.

2

If you have special requirements, like drive IC, interface, FPC, touch panel, brightness, color, backlight, touch panel, etc, we can provide custom LCD display module for you.

3

As a LCD screen factory in China, our factory carry out ISO 9001: 2015 and IATF16949: 2016 quality standard system strictly, all the LCD display passed ROHS, REACH Certification.

4

The 9 inch LCD screen is widely used in Medical, visual doorbell, Vending, learning mechine, ventilator, oscilloscope, kitchen, household appliance, smart home, industry, handheld, outdoor, E-bike, Vehicle, projector, 3D printer, audio device, robot, electric scale, navigation, dashboard, elevator advertising, robot, etc.

Specifications of 8.9 Inch LCD Display 800*1280 350 Nits Brightness 40PIN MIPI Interface


No.

Item

Specification

Unit

1

Display Size (Diagonal)

8.9

inch

2

Display Resolution

800 (H)× RGB × 1280 (V)

pixels

3

Pixel Pitch

149.1 (H) × 149.1 (V)

um

4

LCM Outline Dimension

(Without FPC)

125.48 (W) × 202.90 (H) ×2.6 (T)

mm

5

LCD Outline Dimension

123.68 (W) × 200 (H) × 0.8 (T)

mm

6

LCD Active Area

119.28 (W) ×190.85 (H)

mm

7

View Direction (Gray Inversion)

FULL VIEW

-

8

Driver IC

GH8555BC-02

-

9

Pixel Arrangement

RGB-Stripe

-

10

Display Mode

Normal Black

-

11

Pixel Driving Element

a-Si TFT

-

12

LCD Transmittance

Typ.: 4.8% Min: 4.2%

-

13

LCD Contrast Ratio

Typ.: 1000

-

14

FPC Version

PJ8901B01-26H40P300

-

15

Interface

MIPI

-

16

Operating Temperature

-20°C~ 70°C

-

17

Storage Temperature

-30°C~ 80°C

-

18

Backlight Arrangement

LED/5 Series 6 Parallel (30 lights in total)

-

19

Luminance

350

nit

20

Weight

0.129

kg


Interface Definition Description of 8.9 Inch LCD Display 800*1280 350 Nits Brightness 40PIN MIPI Interface


PIN NO.

PIN DEF.

FUNCTION DESC.

1

NC

No Connection

2-3

VDD

POWER SUPPLY (3.3V)

4

GND

Ground

5

RESET

LCM RESER PIN

6

NC

No Connection

7

GND

Ground

8

D0N

Negative MIPI differential data input

9

D0P

Positive MIPI differential data input

10

GND

Ground

11

D1N

Negative MIPI differential data input

12

D1P

Positive MIPI differential data input

13

GND

Ground

14

CLKN

Negative MIPI differential CLOCK input

15

CLKP

Positive MIPI differential CLOCK input

16

GND

Ground

17

D2N

Negative MIPI differential data input

18

D2P

Positive MIPI differential data input

19

GND

Ground

20

D3N

Negative MIPI differential data input

21

D3P

Positive MIPI differential data input

22

GND

Ground

23-24

NC

No Connection

25

GND

Ground

26

NC

No Connection

27

PWM0

LCM PWM PIN

28-29

NC

No Connection

30

GND

Ground

31-32

LEDK

POWER SUPPLY- FOR BACKLIGHT CATHODE

33-38

NC

No Connection

39-40

LEDA

POWER SUPPLY- FOR BACKLIGHT ANODE

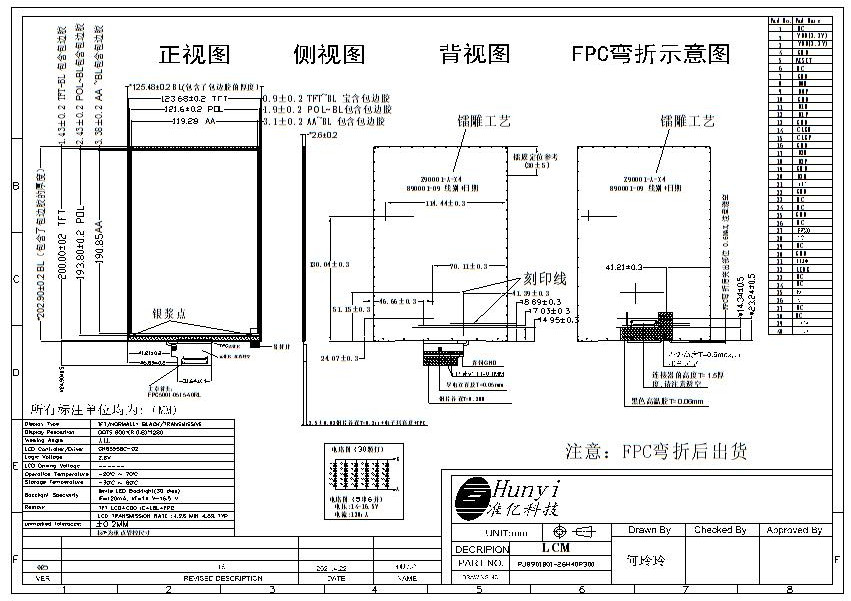

Mechanical Drawing of 8.9 Inch LCD Display 800*1280 350 Nits Brightness 40PIN MIPI Interface


Mechanical Drawing of 8.9 Inch LCD Display 800*1280 350 Nits Brightness 40PIN MIPI Interface
