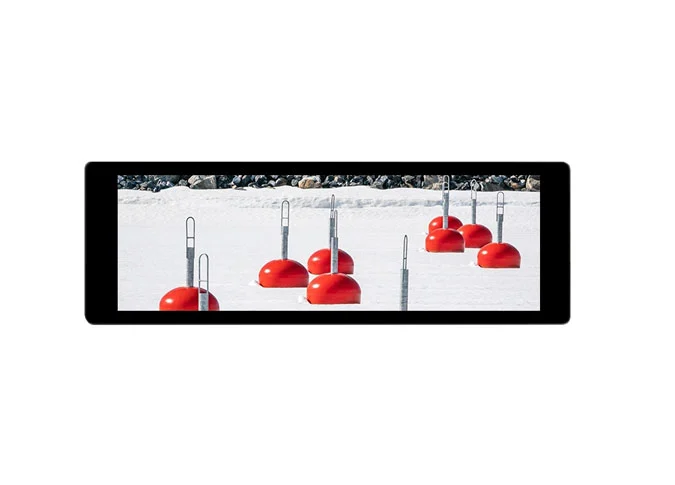

Z784001 7.84 Inch LCD Displa 400*1280 OTA7290B Driver IC 4 Line MIPI Inerface 1000 Nits

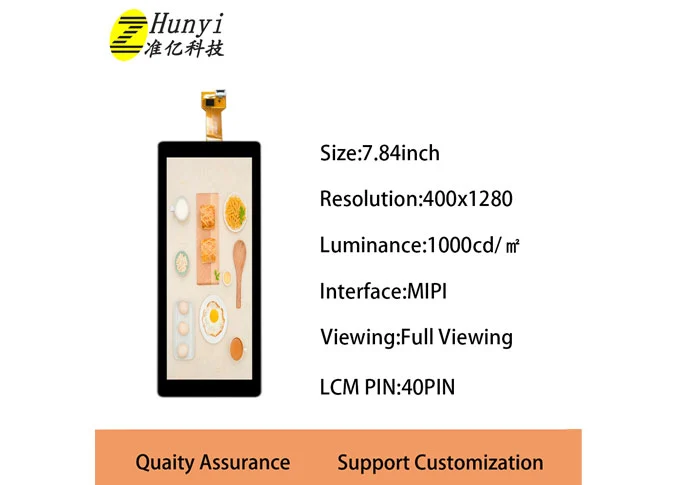

  • Size: 7.84

  • Resolution: 400*1280

  • Active Area: 59.40*190.08mm

  • Interface: MIPI

  • View Angle: IPS

  • Brightness: 1000 cd/m²

  • Touch Panel: Support CTP/RTP

  • Supply Type: Factory/Manufacturer

  • Certification: ISO9001, IATF16949, ROHS, REACH

Request A Quote
lcd ips tft
lcd ips tft
ips tft

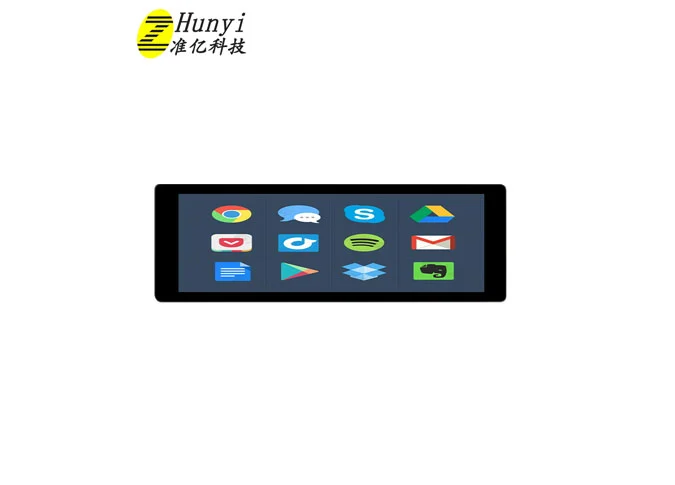

ips lcd panel
difference between ips and lcd display
difference between ips and tft display
difference between ips lcd and lcd
difference between ips lcd and tft
difference between lcd and ips
difference between tft and ips

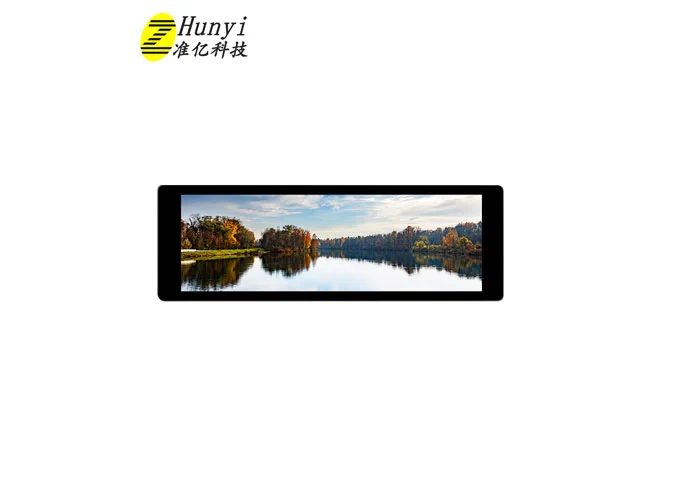

display type tft vs ips lcd
ips and lcd display difference
ips and tft display difference

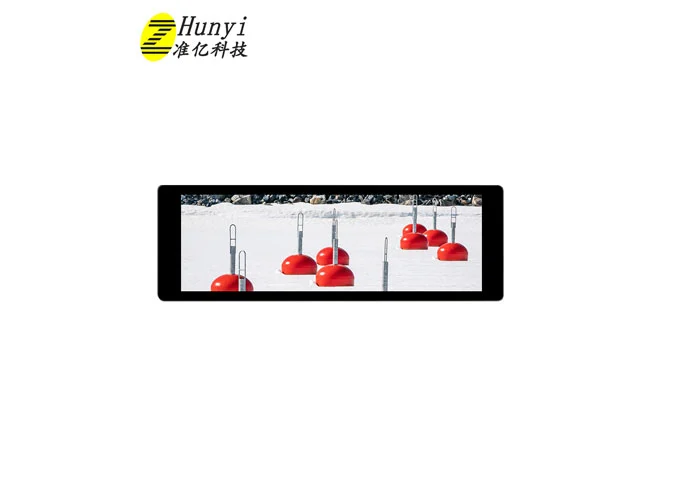

ips display vs tft lcd
ips lcd display full form
ips lcd or tft which is better
7 84 display
7 84 lcd
7 84 lcd display
7 84 inch mipi display
7 84 inch 400 1280 lcd

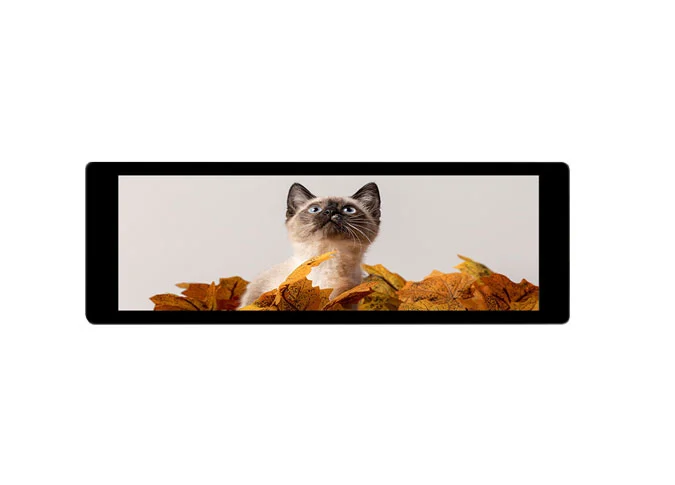

7 84 inch bar display
7 84 inch bar lcd

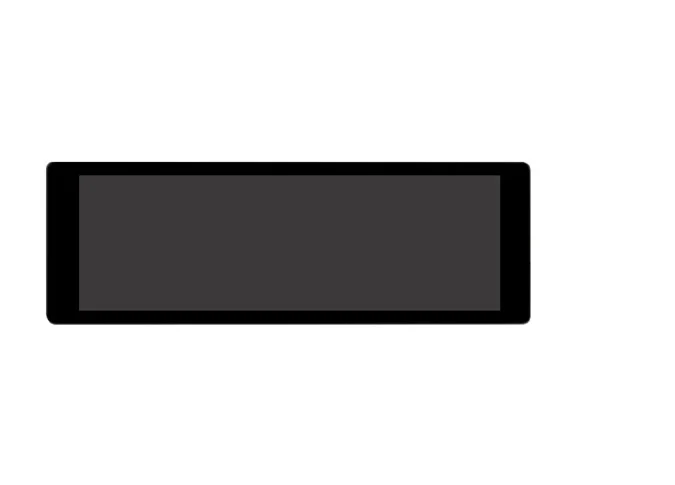

7 84 inch lcd mipi
7 84 inch 400 1280 display

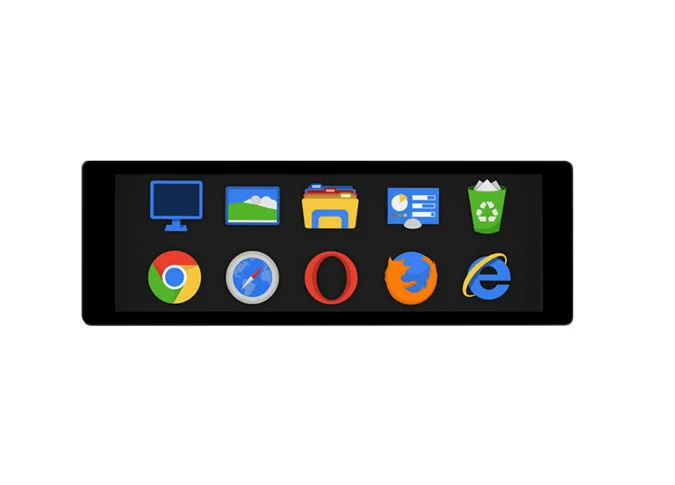

7 84 inch lcd
7 84 inch display
7 84 inch lcd display

Overview of Z784001 7.84 Inch LCD Displa 400*1280 OTA7290B Driver IC 4 Line MIPI Inerface 1000 Nits

1

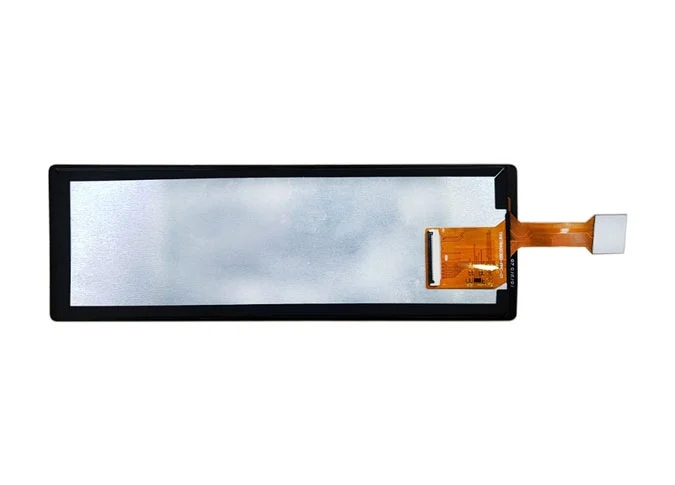

Z784001 is a color active matrix thin film transistor (TFT) liquid crystal display (LCD) with 720*1280 resolution. IPS (In-plane Switching) technique make this 7.84 display have a wider view angle. This a-Si Square TFT  LCD module come with MIPI interface, 1000cd/m² brightness.

2

If you have special requirements, like drive IC, interface, FPC, touch panel, brightness, color, backlight, touch panel, etc, we can provide custom LCD display module for you.

3

As a LCD screen factory in China, our factory carry out ISO 9001: 2015 and IATF16949: 2016 quality standard system strictly, all the LCD display passed ROHS, REACH Certification.

4

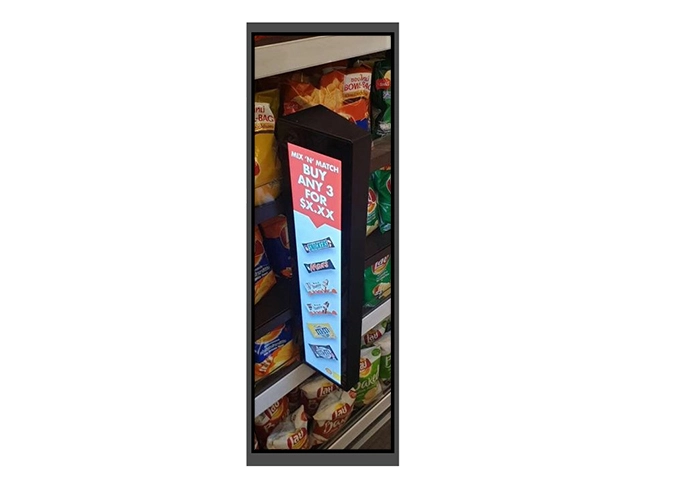

The 7.84 inch LCD screen is widely used in Medical, oscilloscope, kitchen, household appliance, QRcode scanner, smart home, industry, outdoor, HMI, E-bike, Vehicle dashboard, projector, coffee machine, audio device, robot, electric scale, navigation, elevator advertising, etc.

Specifications of 7.84 Inch LCD Displa 400*1280 OTA7290B Driver IC 4 Line MIPI Inerface 1000 Nits


No.

Item

Specification

Unit

1

Display Size (Diagonal)

7.84

inch

2

Display Resolution

400 (H) × RGB × 1280 (V）

pixels

3

Pixel Pitch

0.1254 (H）× 0.1254 (V）

mm


4

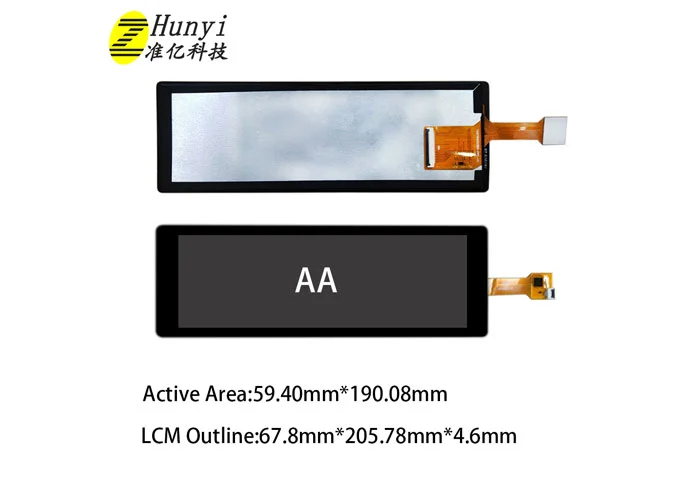

LCM Outline Dimension

(Without FPC）

67.80 (W) x 205.78 (H)  x 4.6 (T)

mm

5

LCD Outline Dimension

-

mm

6

LCD Active Area

59.40 (H) x 190.08 (V)

mm

7

View Direction (Gray Inversion)

FULL VIEW

-

8

Driver IC

-

-

9

Pixel Arrangement

RGB-Stripe

-

10

Display Mode

Normal Black

-

11

Pixel driving Element

a-Si TFT

-

12

LCD Transmittance

-

-

13

LCD Contrast Ratio

Typ.: 1000

-

14

FPC Version

Z784001-P40H V1

-

15

Interface

4 Line MIPI

-

16

Operating Temperature

-20°C~ 70°C

-

17

Storage Temperature

-30°C~ 80°C

-

18

Backlight Arrangement

LED/6 Series 4 Parallel (24 lights in total)

-

19

Luminance

1000

nit

20

Weight

-

kg


Interface Definition Description of 7.84 Inch LCD Displa 400*1280 OTA7290B Driver IC 4 Line MIPI Inerface 1000 Nits


Pin No.

PIN DEF.

FUNCTION DESC.

1

GND

Ground

2

D0P

MIPI data input

3

D0N

MIPI data input

4

GND

Ground

5

D1P

MIPI data input

6

D1N

MIPI data input

7

GND

Ground

8

CLKP

MIPI data input

9

CLKN

MIPI data input

10

GND

Ground

11

D2P

MIPI data input

12

D2N

MIPI data input

13

GND

Ground

14

D3P

MIPI data input

15

D3N

MIPI data input

16

GND

Ground

17

GND

Ground

18-23

NC

No connection

24

RSTB

Global reset pin

25

STBYB

Standby mode, Normally pulled high

26

NC

No connection

27

GND

Ground

28-29

BL-K

Back light-K

30

GND

Ground

31

NC

No connection

32-33

GND

Ground

34

NC

No connection

35-36

BL-A

Back light-A

37

GND

Ground

38-39

VDD

Power supply for digital circuits +3.3V input

40

NC

No connection


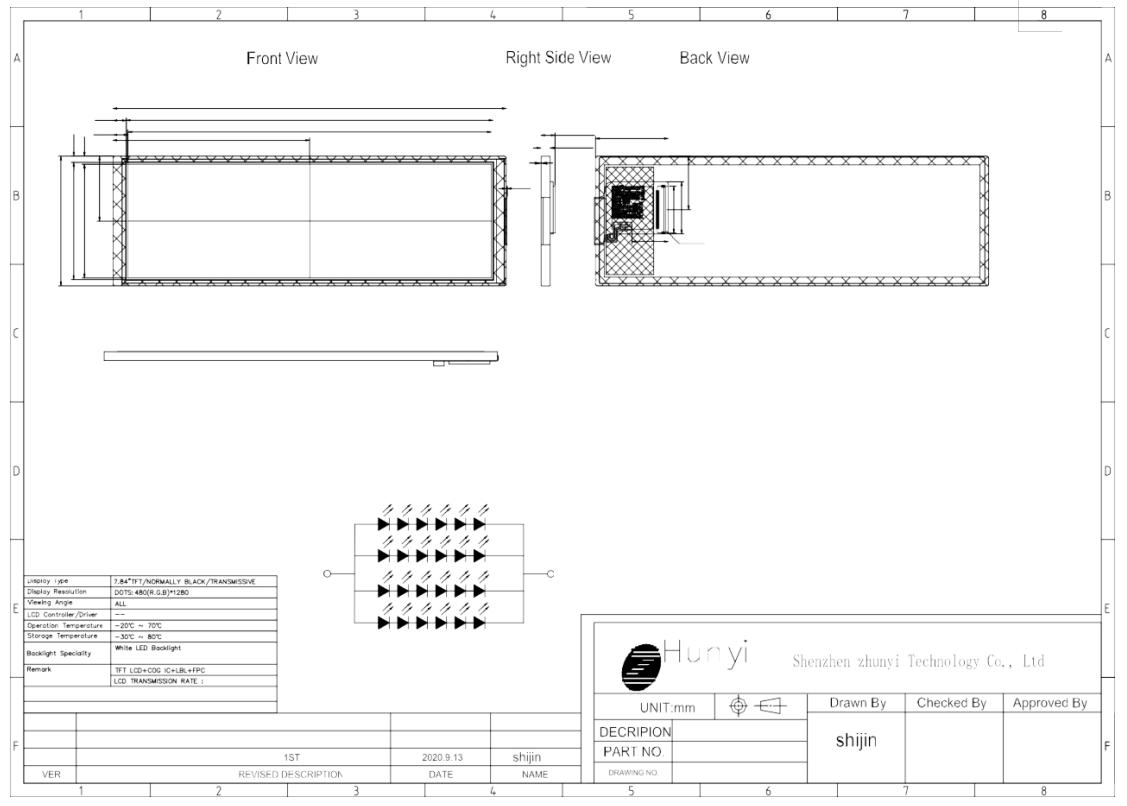

Mechanical Drawing of 7.84 Inch LCD Displa 400*1280 OTA7290B Driver IC 4 Line MIPI Inerface 1000 Nits


Mechanical Drawing of 7.84 Inch LCD Displa 400*1280 OTA7290B Driver IC 4 Line MIPI Inerface 1000 Nits
