Z154001 Custom 240*240 1.54 Inch Square Display Panel With ST7789T3 Driver SPI MCU Interface

  • Size:1.54"

  • Resolution: 240x240

  • LCD Interface: SPI/MCU

  • Driver IC:ST7789T3

  • View Angle: IPS

  • Supply Type: Factory/Manufacturer

  • Certification:ISO9001,IATF16949,ROHS,REACH

square lcd
square lcd
square lcd display
square lcd panel
square lcd screen
square tft display

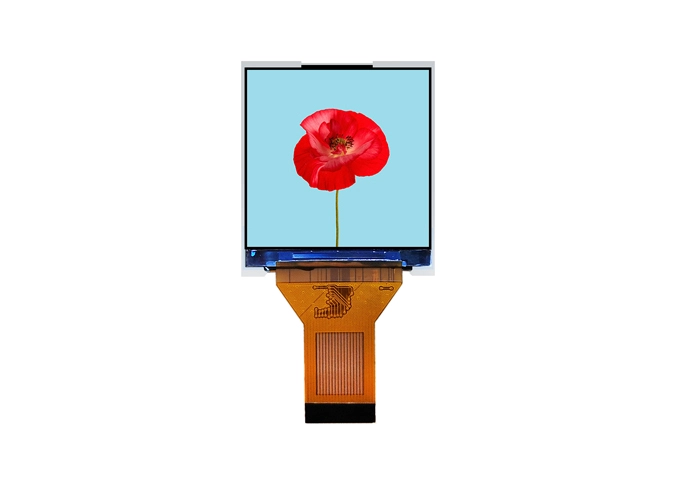

Overview of Z154001 Custom 240*240 1.54 Inch Square Display Panel With ST7789T3 Driver SPI MCU Interface

1

Z154001 is a color active matrix thin film transistor (TFT) liquid crystal display (LCD) with 240x240 resolution. IPS(In-plane Switching) technique make this 1.5" LCD module have a wider view angle.This a-Si TFT LCD come with MCU/SPI interface.The display built-in ST7789T3 driver IC.

2

If you have special requirement,like driver IC,interface,FPC,touch panel,backlight etc, we can customize for you.

3

Our factory carry out ISO 9001:2015 and IATF16949: 2016 quality standard system strictly, all the lcd display passed ROHS, REACH Certification.

4

The 1.5" square LCD Screen is widely used on Gaming, digital camera, smartwatch, pinter, car, projector, Medical equipment, Robotics, ATM, Thermostats, AI, commerical, consumer etc.

General Specifications Z154001 Custom 240*240 1.54 Inch Square Display Panel With ST7789T3 Driver SPI MCU Interface


No.

Item

Specification

Unit

1

Display Size (Diagonal)

1.54

inch

2

Display Resolution

240(H) × RGB × 240(V)

pixels

3

Pixel Pitch

115.5(H) × 115.5(V)


um


4

LCM Outline Dimension

(Without FPC)


31.5 (W) ×35.0 (H) × 1.91 (T)


mm

5

LCD Outline Dimension

30. 12 (W) × 33. 12 (H) × 0.8 (T)

mm

6

LCD Active Area

27.72(W) ×27.72(H)

mm

7

View Direction (Gray Inversion)

FULL VIEW


-

8

Driver IC

ST7789T3


-

9

Pixel Arrangement

RGB-Stripe


-

10

Display Mode

Normal Black


-

11

Pixel driving Element

a-Si TFT


-

12

LCD Transmittance

Typ.: 4.9%    Min:4.4%


-

13

LCD Contrast Ratio

Typ.: 900    Min:700


-

14

FPC Version

Z154001-P22


-

15

Interface

8-bit MCU/4 Line SPI


-

16

Operating Temperature

-20°C~ 70°C


-

17

Storage Temperature

-30°C~ 80°C


-

18

Backlight Arrangement

LED/1 Series 3 Parallel (3 lights in total)


-

19

Luminance

300

nit

20

Weight

0.003

kg



Interface Definition Description Z154001 Custom 240*240 1.54 Inch Square Display Panel With ST7789T3 Driver SPI MCU Interface


Pin No.

Symbol

I/O

Function

1

LEDA

P

LED+

2

LEDK

P

LED-

3

IM2

I


4

IM1

I

5

IM0

I

6

VCI(2.8V)

P

Power Supply(2.8V)

7

DB7








I/O









DATA BUS

8

DB6

9

DB5

10

DB4

11

DB3

12

DB2

13

DB1

14

DB0

15

RD

I


16

WR

I


17

RS

I


18

CS

I

- Chip  Selection  Pin

- Low  Enable.


19


TE


O

Tearing  effect  output   pin  to  synchronies   MCU  to

frame   rate,      activated

by  S/ W  command.


20


RESET


I

This  signal  will  reset  the  device  and  it  must  be

applied   to   properly

initialize  the  chip.

21

SDA

I/O

serial input/output signal in serial interface mode.

22

GND

P

Ground

RESET voltage should be consistent with IOVCC voltage, or there probably is black screen fault when power on.
