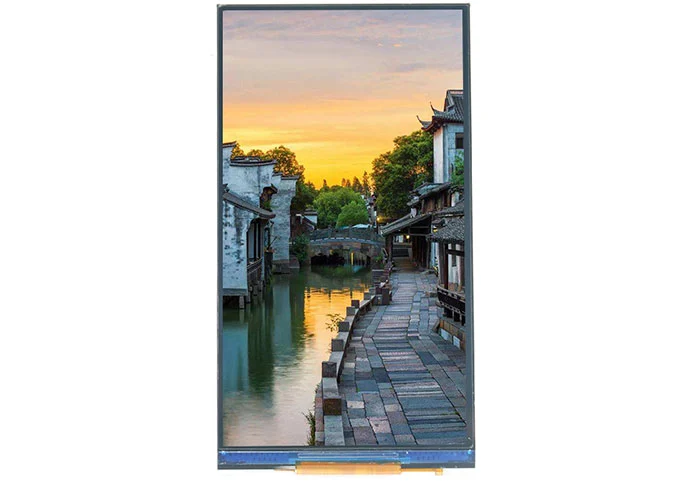

Z49416 5 Inch 480*854 POS LCD TFT Display JD9161Z Controller MIPI Interface

  • Size: 5 inch

  • Resolution: 480*854

  • Active Area: 61.63*109.65mm

  • Interface: MIPI

  • View Angle: IPS

  • Brightness: 600 cd/m²

  • Touch Panel: Support CTP/RTP

  • Supply Type: Factory/Manufacturer

  • Certification: ISO9001, IATF16949, ROHS, REACH

5 lcd
5 lcd
5 tft lcd
5.0 lcd
5.0 tft
5.0 tft lcd
tft 5 inch
tft 5.0
5 tft
5 lcd panel
5 tft lcd panel

Overview of Z49416 5 Inch 480*854 POS LCD TFT Display JD9161Z Controller MIPI Interface

1

Z49416 is a color active matrix thin film transistor (TFT) liquid crystal display (LCD) with 480*854 resolution. IPS (In-plane Switching) technique make this 5" LCD module have a wider view angle. This LCD display is built-in JD9161Z-JN driver IC. This a-Si TFT LCD module come with MIPI interface, 600cd/m² brightness.

2

If you have special requirements, like drive IC interface, FPC, touch panel, backlight, etc, we can also customize for you.

3

Our factory carry out ISO 9001: 2015 and IATF16949: 2016 quality standard system strictly, all the LCD display passed ROHS, REACH Certification.

4

The 5 inch LCD screen is widely used in Medical, visual doorbell, E-wallet, POS, game player, cosmetic instrument, household appliance, QRcode scanner, smart home, industry, handheld, outdoor, HMI, E-bike, Vehicle, etc.

Specifications of 5 Inch 480*854 POS LCD TFT Display JD9161Z Controller MIPI Interface


No.

Item

Specification

Unit

1

Display Size (Diagonal)

4.95

inch

2

Display Resolution

480 (H) × RGB × 854 (V)

pixels

3

Pixel Pitch

128.4 (H) × 128.4 (V)

um

4

LCM Outline Dimension

(Without FPC)

66.40 (W) × 120.05 (H) × 2.2 (T)

mm

5

LCD Outline Dimension

64.46 (W) × 116.80 (H) × 0.8 (T)

mm

6

LCD Active Area

61.63 (W) × 109.65 (H)

mm

7

View Direction (Gray Inversion)

FULL VIEW

-

8

Driver IC

JD9161Z-JN

-

9

Pixel Arrangement

RGB-Stripe

-

10

Display Mode

Normal Black

-

11

Pixel driving Element

a-Si TFT

-

12

LCD Transmittance

Typ.: 4.47%

-

13

LCD Contrast Ratio

Typ.: 800 Min: 640

-

14

FPC Version

Z49401-SPM158 V2

-

15

Interface

MIPI

-

16

Operating Temperature

-20°C~ 70°C

-

17

Storage Temperature

-30°C~ 80°C

-

18

Backlight Arrangement

LED/2 Series 6 Parallel (12 lights in total)

-

19

Luminance

600

nit

20

Weight

0.026

kg


Interface Definition Description of 5 Inch 480*854 POS LCD TFT Display JD9161Z Controller MIPI Interface


PIN NO.

PIN DEF.

FUNCTION DESC.

1-3

LEDA

POWER SUPPLY- FOR BACKLIGHT ANODE

4

VGH(NC)

Positive gate driver output voltage level(18V)(NC)

5

VGL(NC)

Negative gate driver output voltage level(-5.6V)(NC)

6

U/R(NC)

U/R PIN(NC)

7

L/R(NC)

L/R PIN(NC)

8-10

LEDK

POWER SUPPLY- FOR BACKLIGHT CATHODE

11

GND

Ground

12

AVDD(NC)

Analog positive power(10V)(NC)

13

GND

Ground

14

D2P(NC)

Positive MIPI differential data input(NC)

15

D2N(NC)

Negative MIPI differential data input(NC)

16

GND

Ground

17

D1P

Positive MIPI differential data input

18

D1N

Negative MIPI differential data input

19

GND

Ground

20

CLKP

Positive MIPI differential CLOCK input

21

CLKN

Negative MIPI differential CLOCK input

22

GND

Ground

23

D0P

Positive MIPI differential data input

24

D0N

Negative MIPI differential data input

25

GND

Ground

26-27

NC

No Connection

28

GND

Ground

29

LCD_ID(NC)

LCM ID PIN(NC)

30

RESET

LCM RESET PIN

31

NC

No Connection

32

IOVCC

POWER SUPPLY(1.8V)

33-34

VCC

POWER SUPPLY(2.8V)

35

GND

Ground

36

STBYB(NC)

LCM Standby Mode PIN(NC)

37

GND

Ground

38

VCOM(NC)

The power supply of common voltage in DC com driving(NC)

39-40

NC

No Connection


Mechanical Drawing of 5 Inch 480*854 POS LCD TFT Display JD9161Z Controller MIPI Interface


Mechanical Drawing of 5 Inch 480*854 POS LCD TFT Display JD9161Z Controller MIPI Interface
