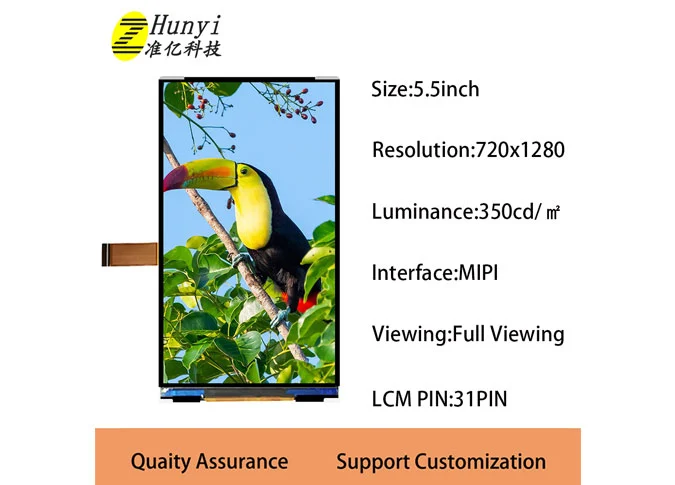

Z55290 5.5 Inch TFT LCD Display 720*1280 420 Nits 31PIN MIPI Interface

  • Size: 5.5 inch

  • Resolution: 720*1280

  • Active Area: 68.04*120.96 mm

  • Interface: MIPI

  • View Angle: IPS

  • Brightness: 350 cd/m²

  • Touch Panel: Support CTP/RTP

  • Supply Type: Factory/Manufacturer

  • Certification: ISO9001, IATF16949, ROHS, REACH

ips lcd display factories
ips lcd display factories
ips tft manufacturers
tft lcd ips suppliers
ips lcd
lcd ips display
ips tft lcd display
tft lcd ips
tft lcd ips lcd
tft ips display
tft and ips
lcd ips tft
ips tft
ips lcd panel
difference between ips and lcd display
difference between ips and tft display
5 5 tft lcd display
5 5 display
5 5 lcd display
5 5 inch tft lcd mipi
5 5 inch 720x1280 tft lcd
5 5 tft lcd
5 5 inch tft lcd
5 5 inch tft lcd display
5 5 inch tft display

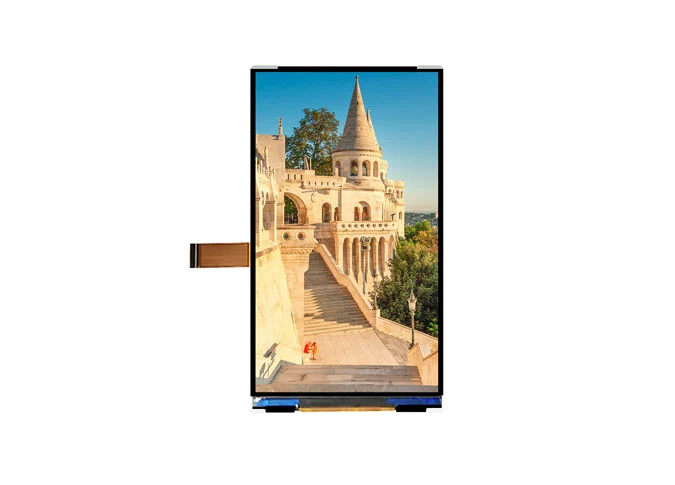

Overview of Z55290 5.5 Inch TFT LCD Display 720*1280 420 Nits 31PIN MIPI Interface

1

Z55290 is a color active matrix thin film transistor (TFT) liquid crystal display (LCD) with 720*1280 resolution. IPS (In-plane Switching) technique make this 5.5" LCD module have a wider view angle. This LCD display in China is built-in JD9365DA-H3 driver IC. This a-Si TFT LCD module come with MIPI interface, 350cd/m² brightness.

2

If you have special requirements, like drive IC interface, FPC, touch panel, backlight etc, we can provide China TFT LCD display module for you.

3

Our factory carry out ISO 9001:2015 and IATF16949: 2016 quality standard system strictly, all the LCD display passed ROHS, REACH Certification.

4

The high resolution 5.5 inch China TFT touch screen is widely used in Medical, visual doorbell, E-wallet, POS, game player, household appliance, QRcode scanner, smart home, industry, handheld, outdoor, HMI, E-bike, Vehicle, projector, 3D printer, audio device, robot, etc.

Specifications of 5.5 Inch TFT LCD Display 720*1280 420 Nits 31PIN MIPI Interface


No.

Item

Specification

Unit

1

Display Size (Diagonal)

5.5inch

-

2

Display Resolution

720 × RGB × 1280

pixels

3

Pixel Pitch

31.5 (H) × 94.5 (V)

um

4

LCM Outline Dimension

(Without FPC)

80 (W) ×143 (H) × 1.67 (T)

mm

5

LCD Outline Dimension

70.04 (W) × 127.1 (H) × 0.4 (T)

mm

6

LCD Active Area

68.04 (W) × 120.96 (H)

mm

7

View Direction (Gray Inversion)

FULL VIEW

-

8

Driver IC

JD9365DA-H3

-

9

Pixel Arrangement

RGB-Stripe

-

10

Display Mode

Normal Black

-

11

Pixel driving Element

a-Si TFT

-

12

LCD Transmittance

Typ.: 3.47%

-

13

LCD Contrast Ratio

Typ.: 1000 Min: 600

-

14

FPC Version

Z55290-P501H V1

-

15

Interface

MIPI

-

16

Operating Temperature

-20°C~ 70°C

-

17

Storage Temperature

-30°C~ 80°C

-

18

Backlight Arrangement

LED/7 Series 2 Parallel (14 lights in total)

-

19

Luminance

350

nit

20

Weight

0.031

kg


Interface Definition Description of 5.5 Inch TFT LCD Display 720*1280 420 Nits 31PIN MIPI Interface


PIN NO.

PIN DEF.

FUNCTION DESC.

1

LEDK

POWER SUPPLY- FOR BACKLIGHT CATHODE

2

NC

NC

3-4

LEDA

POWER SUPPLY+ FOR BACKLIGHT

5

NC

NC

6

TE

Serves TE pin on MPU interface

7

ID1

LCD module's manufacture ID.

8

RESET

POWER SUPPLY- FOR BACKLIGHT CATHODE

9

ID2

LCD module's manufacture ID.

10

IOVCC

POWER SUPPLY(1.8V)

11

NC

NC

12-13

VDD

POWER SUPPLY(2.8V)

14

NC

NC

15

GND

Ground

16

D3P

MIPI-DSI Data differential signal input pins. (Data lane 3)

17

D3N

MIPI-DSI Data differential signal input pins. (Data lane 3)

18

GND

Ground

19

D2P

MIPI-DSI Data differential signal input pins. (Data lane 2)

20

D2N

MIPI-DSI Data differential signal input pins. (Data lane 2)

21

GND

Ground

22

DCLKP

MIPI-DSI CLOCK differential signal input pin

23

DCLKN

MIPI-DSI CLOCK differential signal input pin

24

GND

Ground

25

D1P

MIPI-DSI Data differential signal input pins. (Data lane 1)

26

D1N

MIPI-DSI Data differential signal input pins. (Data lane 1)

27

GND

Ground

28

D0P

MIPI-DSI Data differential signal input pins. (Data lane 0)

29

D0N

MIPI-DSI Data differential signal input pins. (Data lane 0)

30-31

GND

Ground


Drawing of 5.5 Inch TFT LCD Display 720*1280 420 Nits 31PIN MIPI Interface


Drawing of 5.5 Inch TFT LCD Display 720*1280 420 Nits 31PIN MIPI Interface
