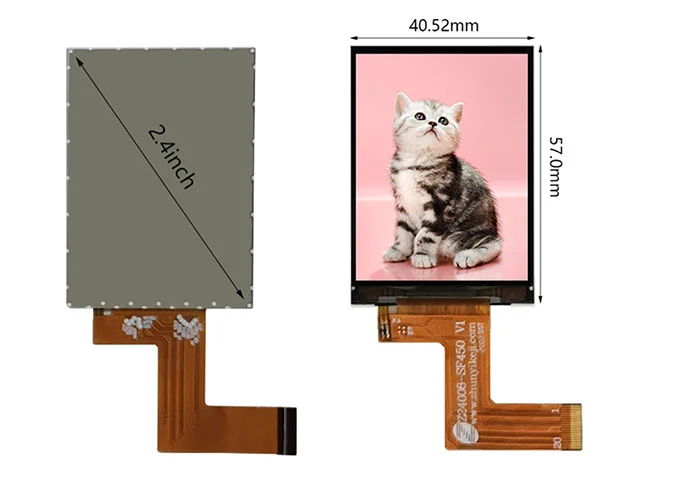

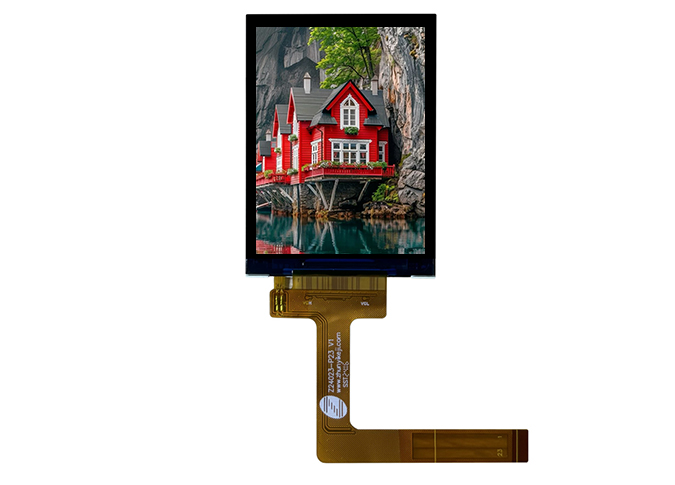

Z24006 2.4 Inch TFT Display 240*320 MCU Interface ST7789V

  • Size: 2.4 inch

  • Resolution: 240*320

  • Interface: MIPI

  • View Angle: IPS

  • Brightness: 300 cd/m²

  • Touch Panel: Support CTP/RTP

  • Supply Type: Factory/Manufacturer

  • Certification: ISO9001, IATF16949, ROHS, REACH

2.4 inch lcd
2.4 inch lcd
2.4 inch tft lcd
tft lcd 2.4
2.4 inch lcd display
lcd tft 2.4 inch
2.4 inch tft lcd display
tft lcd 2.4 inch
2.4 lcd display
2.4 inch tft lcd factory

Overview of Z24006 2.4 Inch TFT Display 240*320 MCU Interface ST7789V

1

Z24006 is a color active matrix thin film transistor (TFT) liquid crystal display (LCD) with 240*320 resolution. IPS (In-plane Switching) technique make this 2.4" LCD module have a wider view angle. This handheld LCD display is built-in ST7789V driver IC. This a-Si TFT LCD module come with MIPI interface, 300 cd/m² brightness.

2

If you have special requirement, like drive IC interface, FPC, touch panel, backlight etc, as a professional custom LCD display manufacturer, we can also customize for you.

3

As a leading China LCD module manufacturer, our factory carry out ISO 9001: 2015 and IATF16949: 2016 quality standard system strictly, all the LCD display passed ROHS, REACH Certification.

4

The 2.4 inch LCD screen is medical oximeter, cosmetic instrument, household appliance, translator, music player, smart home, industry etc.

Specifications of 2.4 Inch TFT Display 240*320 MCU Interface ST7789V


Item

Main Display

Unit

Number of Pixels

240 * RGB * 320

Pixel

LCM Outline imension

40.52 (W) * 57.00 (H) * 2.15 (T)

mm

LCD Outline imension

39.72 (W) * 55.96 (H) * 0.8 (T)

mm

Active Atea

36.72 * 48.96

mm

Pixel Pitch

0.051 * 0.153

mm

Display Mode

Normal Black


Pixel Arrangment

R.G.B Stripe


Viewing Direction

Free


LCD Mode

a-Si TFT


Color Configuration

RGB


FPC Version

Z24002-P40Q V1


IC Driver IC

--


Interface

MCU


Operating Temperature

-20℃ ~ 70℃


Storage Temperature

-30℃ ~ 80℃


Backlight arrangement

LED / 4 Parallel


Luminance

-


Weight




Pin Assignments of 2.4 Inch TFT Display 240*320 MCU Interface ST7789V


PIN NO.

PIN DEF.

FUNCTION DEC.

1

B0

MCU parallel interface data bus.

2

B1

MCU parallel interface data bus.

3

B2

MCU parallel interface data bus.

4

B3

MCU parallel interface data bus.

5

GND

Ground

6

VCI

POWER SUPPLY (2.8V)

7

CS

Chip selection signal.

8

RS

Ground

9

WR

Write strobe signal.

10

RD

Read strobe signal.

11

IM0

8/16bit mode selection.

12

XL

No Connection.

13

YU

No Connection.

14

XR

No Connection.

15

YD

No Connection.

16

LED-A

POWER SUPPLY+ FOR BACKLIGHT ANODE

17

LED-K

POWER SUPPLY- FOR BACKLIGHT CATHODE

18

LED-K

POWER SUPPLY- FOR BACKLIGHT CATHODE

19

LED-K

POWER SUPPLY- FOR BACKLIGHT CATHODE

20

LED-K

POWER SUPPLY- FOR BACKLIGHT CATHODE

21

ID

No Connection.

22

B4

MCU parallel interface data bus.

23

B10

MCU parallel interface data bus.

24

B11

MCU parallel interface data bus.

25

B12

MCU parallel interface data bus.

26

B13

MCU parallel interface data bus.

27

B14

MCU parallel interface data bus.

28

B15

MCU parallel interface data bus.

29

B16

MCU parallel interface data bus.

30

B17

MCU parallel interface data bus.

31

RESET

Reset Signal pin

32

VCI

POWER SUPPLY (2.8V)

33

IOVCC

I/O POWER SUPPLY (1.8V)

34

GND

Ground

35

B5

MCU parallel interface data bus.

36

B6

MCU parallel interface data bus.

37

B7

MCU parallel interface data bus.

38-40

GND

Ground


Mechanical Drawing of 2.4 Inch TFT Display 240*320 MCU Interface ST7789V


Mechanical Drawing of 2.4 Inch TFT Display 240*320 MCU Interface ST7789V
