Z30054 High Brightness 3 Inch IPS LCD Display 480*854 580 Nits MIPI Interface ST7701S

  • Size: 3 inch

  • Resolution: 480*854

  • Interface: MIPI

  • View Angle: IPS

  • Brightness: 550 cd/m²

  • Touch Panel: Support CTP/RTP

  • Supply Type: Factory/Manufacturer

  • Certification: ISO9001, IATF16949, ROHS, REACH

lcd screen module factory
lcd screen module factory
lcd screen panel wholesale
tft display company
tft display factory
tft display in china
liquid crystal display manufacturers
tft display manufacturer
tft display supplier
tft display manufacturers china
tft display panel manufacturer
tft lcd china

Overview of Z30054 High Brightness 3 Inch IPS LCD Display 480*854 580 Nits MIPI Interface ST7701S

1

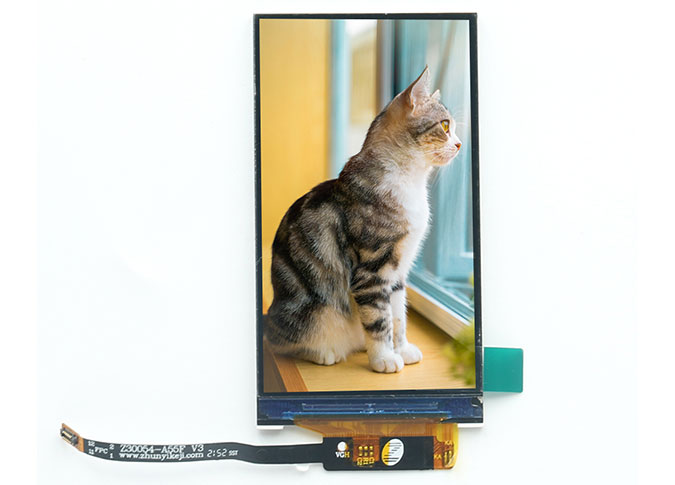

Z30054 is a color active matrix thin film transistor (TFT) liquid crystal display (LCD) with 480*854 resolution. IPS (In-plane Switching) technique make this 3" LCD module have a wider view angle. This LCD display is built-in ST7701S driver IC. This a-Si TFT square LCD module come with MIPI interface, 550 cd/m² brightness.

2

If you have special requirements, like drive IC interface, FPC, touch panel, backlight, etc, as a TFT LCD module supplier, we can also customize for you.

3

As a square LCD supplier, our factory carry out ISO 9001: 2015 and IATF16949: 2016 quality standard system strictly, all the LCD display passed ROHS, REACH Certification.

4

The 3 inch LCD screen is medical, dash came, POS, game player, cosmetic instrument, household appliance, QRcode scanner, translator, music player, smart home, industry, etc.

Specifications of High Brightness 3 Inch IPS LCD Display 480*854 580 Nits MIPI Interface ST7701S


No.

Item

Specification

Unit

1

Display Size (Diagonal)

3.0

inch

2

Display Resolution

480 (H) × RGB × 854 (V)

pixels

3

Pixel Pitch

26 (H) × 78 (V)

um

4

LCM Outline Dimension

(Without FPC)

40.64 (W) × 74.68 (H) ×2.34 (T)

mm

5

LCD Outline Dimension

40.33 (W) × 72.86 (H) × 1.0 (T)

mm

6

LCD Active Area

37.44 (W) × 66.61 (H)

mm

7

View Direction (Gray Inversion)

FULL VIEW

-

8

Driver IC

ST7701S-G5

-

9

Pixel Arrangement

RGB-Stripe

-

10

Display Mode

Normal Black

-

11

Pixel driving Element

a-Si TFT

-

12

LCD Transmittance

Typ.: 3.5% Min: 3.1%

-

13

LCD Contrast Ratio

Typ.: 1000 Min: 800

-

14

FPC Version

Z30054-A55F V3

-

15

Interface

MIPI

-

16

Operating Temperature

-20°C~ 70°C

-

17

Storage Temperature

-30°C~ 80°C

-

18

Backlight Arrangement

LED/6 Series 1 Parallel (6 lights in total)

-

19

Luminance

580

nit

20

Weight

0.014

kg


Interface Definition Description of High Brightness 3 Inch IPS LCD Display 480*854 580 Nits MIPI Interface ST7701S


PIN NO.

PIN DEF.

FUNCTION DESC.

1

DISP_CLK_P

Positive MIPI differential CLOCK input

2

1V8

POWER SUPPLY (1.8V)

3

DISP_CLK_N

Negative MIPI differential CLOCK input

4

DISP_RESET

LCM RESET PIN

5

GND

Ground

6

DISP_TE

Tearing Effect PIN

7

DISP_D0_P

Positive MIPI differential data input

8

LEDA

POWER SUPPLY- FOR BACKLIGHT ANODE

9

DISP_D0_N

Negative MIPI differential data input

10

LEDK

POWER SUPPLY- FOR BACKLIGHT CATHODE

11

GND

Ground

12

DISP_2V8

POWER SUPPLY (2.8V)

RESET voltage should be consistent with VDDI voltage, or there probably is black screen fault when power on.


Mechanical Drawing of High Brightness 3 Inch IPS LCD Display 480*854 580 Nits MIPI Interface ST7701S


Mechanical Drawing of High Brightness 3 Inch IPS LCD Display 480*854 580 Nits MIPI Interface ST7701S
