Z13006-ZC 1.3 inch TFT Touch Screen 240*240 LCD Display 24PIN SPI Interface CST816D Controller

  • Size: 1.3 inch

  • Resolution: 240*240

  • LCD Interface: SPI

  • Touch Interface: IIC

  • Touch Panel: Capacitive

  • Driver IC: GC9A01

  • Touch Controller:  CST816D

  • View Angle: IPS

  • Supply Type: Factory/Manufacturer

  • Certification:ISO9001,IATF16949,ROHS,REACH

z13006zc supplier
z13006zc supplier
z13006zc
z13006zc manufacturer
z13006zc for sale
z13006zc factory
z13006zc wholesale
z13006zc company

Overview of Z13006-ZC 1.3 inch TFT Touch Screen 240*240 LCD Display 24PIN SPI Interface CST816D Controller

1

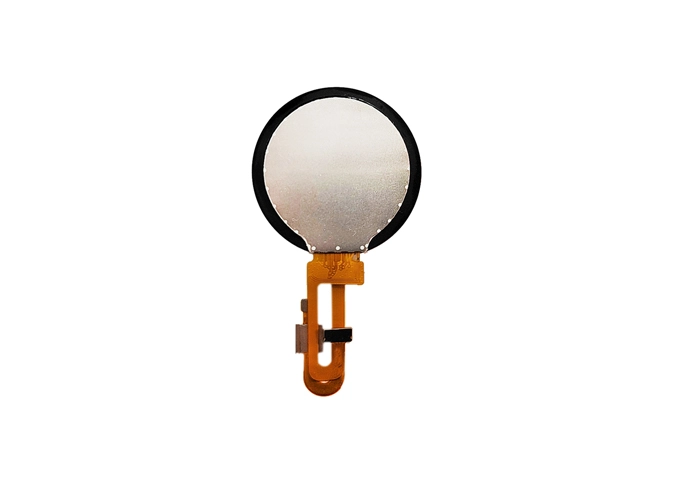

Z13006-ZC is a color active matrix thin film transistor (TFT) liquid crystal display (LCD) with capacitive touch panel, QVGA 240*240. This TFT touch display is built-in ST7789V2 LCD driver IC and CST816D touch controller. This a-Si TFT circular LCD display module come with SPI and I2C interface.

2

If you have special requirement, like drive IC, interface, FPC, touch panel, backlight, brightness, color etc, as a custom LCD screen manufacturer, we can also customize for you.

3

As a china LCD screen factory, our factory carry out ISO 9001:2015 and IATF16949: 2016 quality standard system strictly, all the lcd display passed ROHS, REACH Certification

4

This 1.3 inch square LCD touch screen is widely used in smart watch, bracelets, medical oximeter, cosmetic instrument, household appliance, translator, message device, infrared themometer, smart home, etc

General Specifications 1.3 inch TFT Touch Screen 240*240 LCD Display 24PIN SPI Interface CST816D Controller


No.

Item

Specification

Unit

1

Display Size (Diagonal)

1.3

inch

2

Display Resolution

240(H) × RGB × 240  (V)

pixels

3

Pixel Pitch

-

um


4

LCM Outline Dimension

(Without FPC)


35.6 (W) ×38. 1 (H) ×1.6 (T)


mm

5

LCD Outline Dimension

/

mm

6

LCD Active Area

32.4  (W) ×32.4  (H)

mm

7

View Direction (Gray Inversion)

FULL VIEW

-

8

Driver IC

GC9A01

-

9

Pixel Arrangement

RGB-Stripe

-

10

Display Mode

Normal Black

-

11

Pixel driving Element

a-Si TFT

-

12

LCD Transmittance

Typ.: 4.65%    Min:4. 18%

-

13

LCD Contrast Ratio

Typ.: 800    Min:640

-

14

FPC Version

-

-

15

Interface

4LINE-SPI

-

16

Operating Temperature

-20°C~ 70°C

-

17

Storage Temperature

-30°C~ 80°C

-

18

Backlight Arrangement

LED/2Series (2 lights in total)

-

19

Luminance

350

nit

20

Weight

0.003

g



Interface Definition Description 1.3 inch TFT Touch Screen 240*240 LCD Display 24PIN SPI Interface CST816D Controller

Pin N.

Symbol

Function

1~2

VLEDK

Power for LED back light   cathode

3~4

VLEDA

Power for LED back light   anode

5

GND

Power ground

6

FMARK

Power Supply Fordigital circuit

7

GND

Power ground

8

RD

Read enable in 8080 MCU parallel interface

9

WR

Write enable in MCU parallel interface

10

RS

Display data/command selection pin

11

CS

Chip selection pin

12

GND

Power ground

13

RESET

This signal will reset the device and it must be applied to properly

14

IOVCC

Power supply for digitial circuit

15

VCC

Power supply for digitial circuit

16~23

DB0~DB7

Parallel interface Data Input

24

GND

Power ground

RESET voltage should be consistent with VDDI voltage, or there probably is black screen fault when power on.
