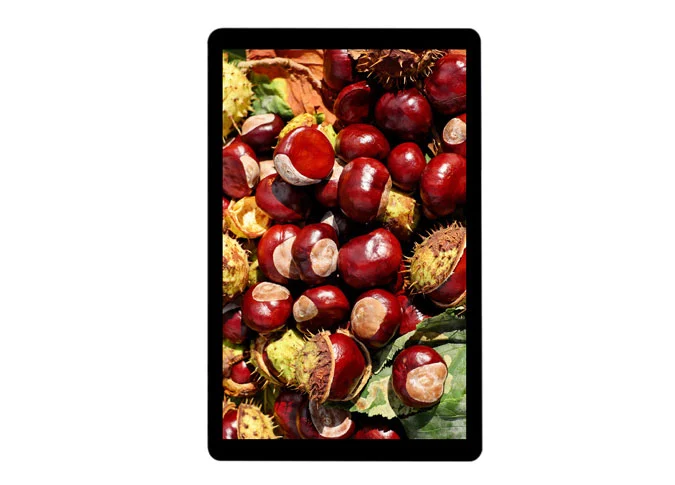

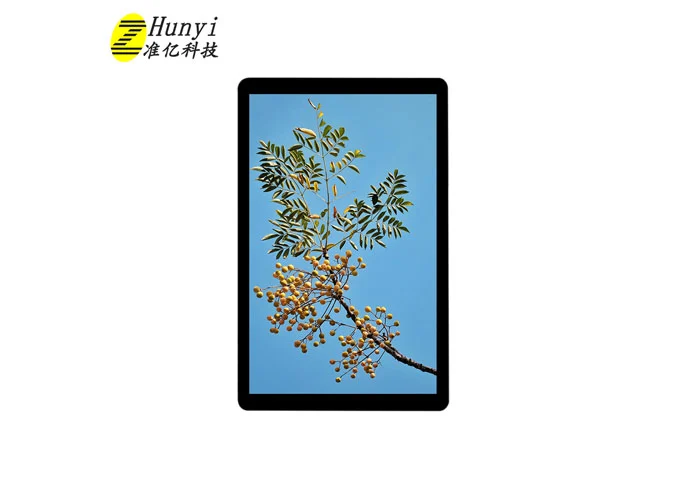

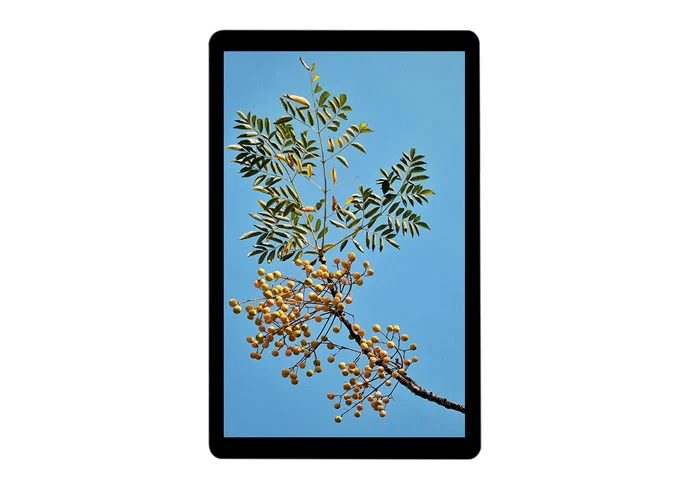

Z101029-ZC2 10.1 Inch TFT Touch Display 800*1280 500CD/M2 GT9271 Controller

  • Size: 10.1 inch

  • Resolution: 800*1280

  • LCD Interface: MIPI

  • Touch Interface: IIC

  • Touch Panel: Capacitive

  • Driver IC: JD9365DA

  • Touch Controller: GT9271

  • View Angle: IPS

  • Supply Type: Factory/Manufacturer

  • Certification: ISO9001, IATF16949, ROHS, REACH

Request A Quote
tft capacitive touchscreen
tft capacitive touchscreen
capacitive display
capacitive touch screen panel
capacitive touchscreen display
lcd capacitive touchscreen
tft capacitive screen
tft capacitive touch
capacitive lcd
capacitive lcd display
capacitive tft
capacitive touch lcd
capacitive touch screen price
capacitive touch tft
capacitive touchscreen lcd
raspberry capacitive touch screen
tft lcd capacitive touchscreen
lcd capacitive touchscreen
capacitive display
tft capacitive touchscreen
capacitive touch screen panel
capacitive touchscreen display

Overview of Z101029-ZC2 10.1 Inch TFT Touch Display 800*1280 500CD/M2 GT9271 Controller

1

Z101029-ZC2 is a color active matrix thin film transistor (TFT) liquid crystal display (LCD) with capacitive touch panel, QVGA 800*1280. This TFT touch display is built-in JD9365DA LCD driver IC and GT9271 touch controller. This a-Si TFT LCD touch China LCD module come with MIPI and I2C interface. Multi-point touch.

2

If you have special requirement, like drive IC, interface, FPC, touch panel, backlight, brightness, color, etc, we can provide China custom LCD for you.

3

As a LCD module factory, our factory carry out ISO 9001: 2015 and IATF16949: 2016 quality standard system strictly, all the LCD display passed ROHS, REACH Certification.

4

This 10.1 inch LCD touch screen is widely used in medical, visual doorbell, vending, learning mechine, ventilator, oscilloscope, kitchen, household appliance, smart home, industry, handheld, outdoor, E-bike, Vehicle, projector, 3D printer, audio device, robot, electric scale, navigation, dashboard, elevator advertising, laptop, HMI, education, etc.

General Specifications 10.1 Inch TFT Touch Display 800*1280 500cd/m2 GT9271 Controller


No.

Item

Specification

Unit

1

Display Size (Diagonal)

10.1

inch

2

Display Resolution

800 (H) × RGB × 1280 (V）

pixels

3

Pixel Pitch

56.4 (H) × 169.2 (V）

um

4

LCM Outline Dimension

(Without FPC）

143.05 (W) × 228.55 (H) × 2.60 (T)

mm

5

LCD Outline Dimension

139.36 (W) × 225.58 (H) × 0.8 (T)

mm

6

TLCM Outline Dimension

(Without FPC）

153.85 (W) × 243.85 (H) × 4.33 (T)

mm

7

LCD Active Area

135.36 (W) × 216.58 (H)

mm

8

View Direction (Gray Inversion)

FULL VIEW

-

9

Driver IC

JD9365DA-H3

-

10

Pixel Arrangement

RGB-Stripe

-

11

Display Mode

Normal Black

-

12

Pixel driving Element

a-Si TFT

-

13

LCD Transmittance

Typ.: 5.41% Min: 4.65%

-

14

LCD Contrast Ratio

Typ.: 1000 Min: 800

-

15

FPC Version

Z101029-PR03H V1

-

16

Interface

MIPI

-

17

TP Interface

I2C


18

Operating Temperature

-20°C~ 70°C

-

19

Storage Temperature

-30°C~ 80°C

-

20

Backlight Arrangement

LED/9 Series 4 Parallel (36 lights in total)

-

21

Luminance

Typ.: 500

nit

22

Weight

0.306

kg


Interface Definition Description 10.1 Inch TFT Touch Display 800*1280 500cd/m2 GT9271 Controller


2.1 LCM PIN

PIN NO.

PIN DEF.

FUNCTION DESC.

1

NC

No Connection

2-3

VDDIN

POWER SUPPLY (3.3V）

4

NC

No Connection

5

NC(LCD-RST)

No Connection (LCM RESET PIN)

6

NC

No Connection

7

GND

Ground

8

MIPI_0N

Negative MIPI differential data input

9

MIPI_0P

Positive MIPI differential data input

10

GND

Ground

11

MIPI_1N

Negative MIPI differential data input

12

MIPI_1P

Positive MIPI differential data input

13

GND

Ground

14

MIPI_CKN

Negative MIPI differential CLOCK input

15

MIPI_CKP

Positive MIPI differential CLOCK input

16

GND

Ground

17

MIPI_2N

Negative MIPI differential data input

18

MIPI_2P

Positive MIPI differential data input

19

GND

Ground

20

MIPI_3N

Negative MIPI differential data input

21

MIPI_3P

Positive MIPI differential data input

22

GND

Ground

23-24

NC

No Connection

25

GND

Ground

26-27

NC

No Connection

28

ID0

LCM ID PIN

29

ID1

LCM ID PIN

30

GND

Ground

31-32

LEDK

POWER SUPPLY- FOR BACKLIGHT CATHODE

33

TP-GND

Ground

34

TP-SDA

TP I2C data (SDA) data input (MOSI)

35

TP-SCL

TP I2C clock (SCL) clock (SCLK)

36

TP-INT

TP Interrupt PIN

37

TP-RESET

TP Reset PIN

38

TP-VDD

TP POWER SUPPLY

39-40

LEDA

POWER SUPPLY- FOR BACKLIGHT ANODE

RESET voltage should be consistent with VDDI voltage, or there probably is black screen fault when power on.


2.2 TP PIN

PIN NO.

PIN DEF.

FUNCTION DESC.

1

GND

Ground

2

SDA(1.8V)

TP I2C data (SDA) data input (MOSI)(1.8V)

3

SCL(1.8V)

TP I2C clock (SCL) clock (SCLK)(1.8V)

4

INT(1.8V)

TP Interrup PIN (1.8V)

5

RST(1.8V)

TP Reset PIN (1.8V)

6

VDD(2.8V)

TP POWER SUPPLY (2.8V)


Mechanical Drawing 10.1 Inch TFT Touch Display 800*1280 500cd/m2 GT9271 Controller


3.1 LCM


Mechanical Drawing 10.1 Inch TFT Touch Display 800*1280 500cd/m2 GT9271 Controller


3.2 TLCM


Mechanical Drawing 10.1 Inch TFT Touch Display 800*1280 500cd/m2 GT9271 Controller
