Z70086 7 inch IPS LCD Panel 800*480 QVGA 50PIN RGB Interface TFT Type

  • Resolution: 800*480

  • Interface: RGB

  • View Angle: IPS

  • Brightness: 350nits

  • Touch Panel: Support CTP/RTP

  • Supply Type: Factory/Manufacturer

  • Certification: ISO9001, IATF16949, ROHS, REACH


z70086 1
z70086 1
z70086 2
z70086 3
z70086 4

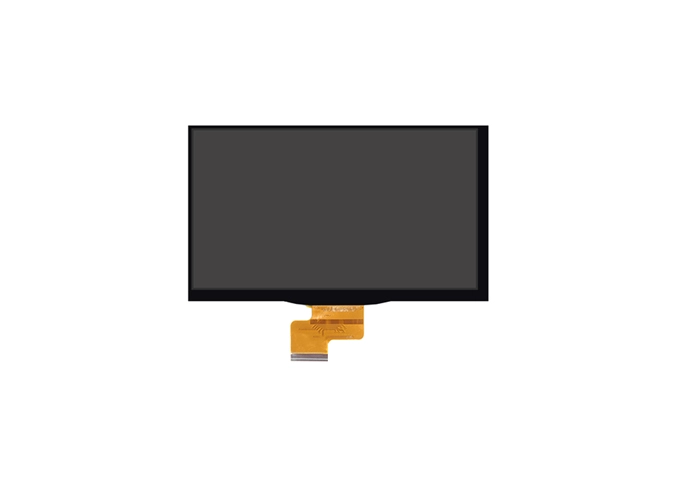

z70086 5

Overview of Z70086 7 inch IPS LCD Panel 800*480 QVGA 50PIN RGB Interface TFT Type

1

Z70086 is a color active matrix thin film transistor (TFT) liquid crystal display (LCD) with 800*480 resolution. IPS(In-plane Switching) technique make this 7" LCD module have a wider view angle. This a-Si TFT LCD come with MIPI interface. With high brightness 1000 nits.

2

If you have special requirement, like driver IC, interface, FPC, touch panel, backlight etc, we can also customize for you.

3

Our factory carry out ISO 9001:2015 and IATF16949: 2016 quality standard system strictly, all the lcd display passed ROHS, REACH Certification

4

The 7" LCD Screen is widely used on Automotive, Viusal doorbell, home system, personal assistant, industrial control, fitness tracker, electronic POS, QR code, smart home, retail kiosks, consumer electronics,3D printer, E-readers, Advertising, Vending, Education ect

Specifications of Z70086 7 inch IPS LCD Panel 800*480 QVGA 50PIN RGB Interface TFT Type


No.

Item

Specification

Unit

1

Display Size (Diagonal)

7.0

inch

2

Display Resolution

800(H) × RGB × 480(V)

pixels

3

Pixel Pitch

64.2(H)× 179(V)

um

4

LCM Outline Dimension

(Without FPC)

165 (W) ×100 (H) ×5.7 (T)

mm

5

LCD Active Area

153.840(W) ×85.63(H)

mm

6

View Direction (Gray Inversion)

ALL

-

7

Driver IC

/

-

8

Pixel Arrangement

RGB-Stripe

-

9

Display Mode

Normal Black

-

10

Pixel driving Element

a-Si TFT

-

11

LCD Transmittance

Typ.: TBD

-

12

LCD Contrast Ratio

Typ.: 500  Min:400

-

13

FPC Version

Z70086-P50 V1

-

14

Interface

RGB

-

15

Operating Temperature

-20°C~ 70°C

-

16

Storage Temperature

-30°C~ 80°C

-

17

Backlight Arrangement

LED/3 Series 9 Parallel (27 lights in total)

-

18

Luminance

Typ.:350

nit

19

Weight

TBD

kg


Interface Definition Description of Z70086 7 inch IPS LCD Panel 800*480 QVGA 50PIN RGB Interface TFT Type


PIN NO.

PIN DEF.

FUNCTION DESC.

1-2

LEDA

POWER SUPPLY- FOR BACKLIGHT ANODE

3-4

LEDK

POWER SUPPLY- FOR BACKLIGHT CATHODE

5

GND

Ground

6

NC

No connection (VCOM Common Voltage)

7

VDD

POWER SUPPLY

8

NC

No connection (MODE DE/SYNC MODE SELECT)

9

DE

DATA  INPUT  ENABLE

10

VS

Vertical  Sync  Input

11

HS

Horizontal  Sync  Input

12-19

B7-B0

Blue  DATA

20-27

G7-G0

Green  DATA

28-35

R7-R0

Red  DATA

36

GND

Ground

37

DCLK

Sample  Clock

38

GND

Ground

39

L/R

Left/Right  Selection

40

U/D

Up/Down  Selection

41

NC

No connection(VGH  Gate  ON  Voltage)

42

NC

No connection(VGL Gate  OFF  Voltage)

43

NC

No connection (AVDD Power  For  Analog  Circuit)

44

RESET

Global  Reset  pin

45

NC

No Connection

46

NC

No Connection(VCOM Common Voltage)

47

NC

No Connection(DITHB Dithering  Function)

48

GND

Ground

49-50

NC

No Connection

RESET voltage should be consistent with VDDI voltage, or there probably is black screen fault when power on.
