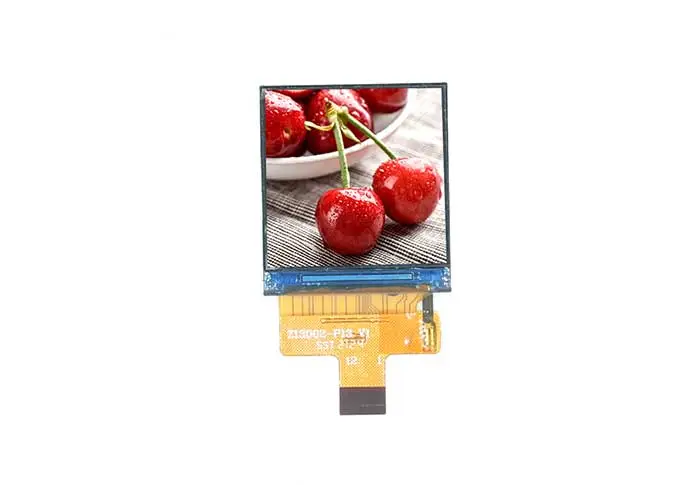

Z13001-P24 1.3 Inch LCD Screen 240x240 8 Bit MCU Interface

  • Size: 1.3 inch

  • Resolution: 240*240

  • Driver IC: ST7789V

  • Interface: MCU-8 bit

  • View Angle: IPS

  • Driver IC: ST7789V

  • Brightness: 500 cd/m²

  • Touch Panel: Support CTP/RTP

  • Supply Type: Factory/Manufacturer

  • Certification: ISO9001, IATF16949, ROHS, REACH

ips lcd panel
ips lcd panel
tft ips display
tft lcd ips
ips tft lcd display
tft lcd ips suppliers

Overview of Z13001-P24 1.3 Inch LCD Screen 240x240 8 Bit MCU Interface

1

Z13001-P24 is a color active matrix thin film transistor (TFT) liquid crystal display (LCD) with 240x240 resolution. IPS (In-plane Switching) technique make this 1.3" LCD module have a wider view angle. This handheld LCD display is built-in ST7789V driver IC. This a-Si TFT LCD come with MCU interface.

2

If you have special requirement, like drive IC, interface, FPC, touch panel, backlight, etc, the square LCD module supplier can also customize for you.

3

As a professional China LCD module manufacturer, our factory carry out ISO 9001: 2015 and IATF16949: 2016 quality standard system strictly, all the LCD display passed ROHS, REACH Certification.

4

The 1.3 inch square LCD screen is widely used smart watch, bracelet, medical oximeter, cosmetic instrument, household appliance, translator, message device, etc.

Specifications of Z13001-P24 1.3 Inch LCD Screen 240x240 8 Bit MCU Interface


No.

Item

Specification

Unit

1

Display Size (Diagonal)

1.3

inch

2

Display Resolution

240 (H) × RGB × 240 (V)

pixels

3

Pixel Pitch

97.5 (H) × 97.5 (V)

um

4

LCM Outline Dimension

(Without FPC)

26.17 (W) ×29.22 (H) ×1.5 (T)

mm

5

LCD Outline Dimension

25.8 (W) × 28.4 (H) × 0.4 (T)

mm

6

LCD Active Area

23.4 (W) ×23.4 (H)

mm

7

View Direction (Gray Inversion)

FULL VIEW

-

8

Driver IC

ST7789V2-G4-A

-

9

Pixel Arrangement

RGB-Stripe

-

10

Display Mode

Normal Black

-

11

Pixel driving Element

a-Si TFT

-

12

LCD Transmittance

Typ.: 4.65% Min: 4.18%

-

13

LCD Contrast Ratio

Typ.: 800 Min: 640

-

14

FPC Version

Z13001-P24 V1

-

15

Interface

MCU

-

16

Operating Temperature

-20°C~ 70°C

-

17

Storage Temperature

-30°C~ 80°C

-

18

Backlight Arrangement

LED/1 Series 2 Parallel (2 lights in total)

-

19

Luminance

520

nit

20

Weight

0.003

kg


Interface Definition Description of Z13001-P24 1.3 inch LCD Screen 240x240 8 Bit MCU Interface


PIN NO.

PIN DEF.

FUNCTION DESC.

1

GND

Ground

2

LEDK

POWER SUPPLY- FOR BACKLIGHT CATHODE

3

LEDA

POWER SUPPLY- FOR BACKLIGHT ANODE

4

VDD

POWER SUPPLY(2.8V/3.3V)

5-6

GND

Ground

7

D/C

LCM Display data/command selection pin in parallel interface

8

CS

LCM SPI Chip Select PIN

9

SCL

LCM SPI clock (SCL) clock (SCLK)

10

SDA

LCM SPI data (SDA) data input (MOSI)

11

RESET

LCM RESE PIN

12

GND

Ground

RESET voltage should be consistent with VDDI voltage, or there probably is black screen fault when power on.
