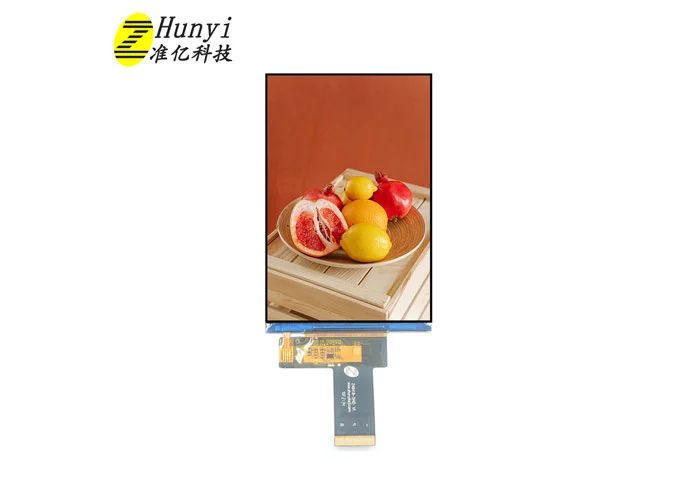

Z49420 5 Inch LCD Display 720*1280 30PIN MIPI Interface 320 CD/M2

  • Size: 5 inch

  • Resolution: 720*1280

  • Active Area: 63.72*113.28 mm

  • Interface: MIPI

  • View Angle: IPS

  • Brightness: 450 cd/m²

  • Touch Panel: Support CTP/RTP

  • Supply Type: Factory/Manufacturer

  • Certification: ISO9001, IATF16949, ROHS, REACH

Request A Quote
5 inch tft lcd panel manufacturer
5 inch tft lcd panel manufacturer
5 lcd display manufacturer
5 inch lcd panel
5 inch tft lcd panel company
5 lcd display company
5 display company
5 lcd display wholesale
5 display wholesale
5 inch lcd panel manufacturer
5 inch lcd panel
5 inch tft lcd panel
5 display manufacturer
5 lcd display
5 inch tft lcd panel
5 inch lcd panel bulk
5 inch tft lcd panel bulk
5 display bulk
5 inch lcd panel company
5 lcd display bulk
5 display
5 inch lcd panel wholesale
5 inch tft lcd panel wholesale
5 lcd display
5 display
5 inch lcd panel wholesale

Overview of Z49420 5 Inch LCD Display 720*1280 30PIN MIPI Interface 320 CD/M2

1

Z49420 is a color active matrix thin film transistor (TFT) liquid crystal display (LCD) with 720*1280 resolution. IPS (In-plane Switching) technique make this 5" LCD module have a wider view angle. This LCD display in China is built-in GH1001 driver IC. This a-Si TFT LCD module come with MIPI interface, 450cd/m² brightness.

2

If you have special requirements, like drive IC interface, FPC, touch panel, backlight, etc, we can provide China TFT LCD display module for you.

3

Our factory carry out ISO 9001: 2015 and IATF16949: 2016 quality standard system strictly, all the LCD display passed ROHS, REACH Certification.

4

The high resolution 5 inch China TFT touch screen is widely used in Medical, visual doorbell, E-wallet, POS, game player, cosmetic instrument, household appliance, QRcode scanner, smart home, industry, handheld, outdoor, HMI, E-bike, Vehicle, projector, printer, audio device, etc.

Specifications of 5 Inch LCD Display 720*1280 30PIN MIPI Interface 320 CD/M2


No.

Item

Specification

Unit

1

Display Size (Diagonal)

4.9

inch

2

Display Resolution

720 (H) × RGB × 1280 (V）

pixels

3

Pixel Pitch

29.5 (H) × 88.5 (V）

um

4

LCM Outline Dimension

(Without FPC）

65.89 (W) × 119.91 (H) × 1.65 (T)

mm

5

LCD Outline Dimension

65.692 (W) × 119.608 (H) × 0.4 (T)

mm

6

TLCM Outline Dimension

(Without FPC）

69.74 (W) × 125.53 (H) × 3.18 (T)

mm

7

LCD Active Area

63.72 (W) × 113.28 (H）

mm

8

View Direction (Gray Inversion)

FULL VIEW

-

9

Driver IC

GH1001

-

10

Pixel Arrangement

RGB-Stripe

-

11

Display Mode

Normal Black

-

12

Pixel driving Element

a-Si TFT

-

13

LCD Transmittance

Typ.: 3.2% Min: 2.72%

-

14

LCD Contrast Ratio

Typ.: 1200 Min: 1000

-

15

FPC Version

Z49420-P30H V1

-

16

Interface

MIPI

-

17

Operating Temperature

-20°C~ 70°C

-

18

Storage Temperature

-30°C~ 80°C

-

19

Backlight Arrangement

LED/6 Series 2 Parallel (10 lights in total)

-

20

Luminance

320

nit

21

Weight

0.053

kg


Interface Definition Description of 5 Inch LCD Display 720*1280 30PIN MIPI Interface 320 CD/M2


PIN NO.PIN DEF.FUNCTION DESC.
1VDD_5VPOWER SUPPLY (5V）
2VDD_LCDPOWER SUPPLY
3LCD_BL_PWMConnecting with the external BL driver
4LCD_RSTLCM RESET PIN
5LEDKPOWER SUPPLY- FOR BACKLIGHT CATHODE
6LEDAPOWER SUPPLY+ FOR BACKLIGHT ANODE
7TOUCH_RST_LTP RESET PIN
8TOUCH_INT_HTP Interrupt PIN
9VCC3V0_TOUCHTP POWER SUPPLY (3V)
10GNDGround
11I2C4_SCLTP I2C clock (SCL) clock (SCLK)
12I2C4_SDATP I2C data (SDA) data input (MOSI)
13-14NCNo Connection
15-17GNDGround
18LCD_ENLCM Data enable signal
19CLKPPositive MIPI differential CLOCK input
20CLKNNegative MIPI differential CLOCK input
21DSI_D0PPositive MIPI differential data input
22DSI_D0NNegative MIPI differential data input
23DSI_D1PPositive MIPI differential data input
24DSI_D1NNegative MIPI differential data input
25-26NCNo Connection
27DSI_D2PPositive MIPI differential data input
28DSI_D2NNegative MIPI differential data input
29DSI_D3PPositive MIPI differential data input
30DSI_D3NNegative MIPI differential data input
RESET voltage should be consistent with VDDI voltage, or there probably is black screen fault when power on.


Mechanical Drawing of 5 Inch LCD Display 720*1280 30PIN MIPI Interface 320 CD/M2


Mechanical Drawing of 5 Inch LCD Display 720*1280 30PIN MIPI Interface 320 CD/M2
