Z101028-ZC3 1200*2000 10.1 Inch Capacitive Touch LCD Screen 350 Nits MIPI I2C Interface

  • Size: 10.36 inch

  • Resolution: 1200*2000

  • LCD Interface: MIPI

  • Touch Panel: Capacitive

  • Driver IC: NT36523

  • View Angle: IPS

  • Supply Type: Factory/Manufacturer

  • Certification: ISO9001, IATF16949, ROHS, REACH

lcd capacitive touch
lcd capacitive touch
capacitive touch screen panel
tft lcd capacitive touchscreen
touch screen 10 1
capacitive touchscreen lcd
10 1 tft lcd display
10 1 capacitive touch screen
capacitive touch lcd
capacitive tft
lcd capacitive screen
10 1 inch lcd touch screen
tft capacitive touchscreen
capacitive display
raspberry capacitive touch screen
10 1 touch screen panel
capacitive touch tft
capacitive touch screen price
10 1 capacitive touch panel
lcd touch screen 10 inch
capacitive lcd display
capacitive lcd
tft capacitive screen
tft capacitive touch
capacitive touchscreen display
lcd capacitive touchscreen

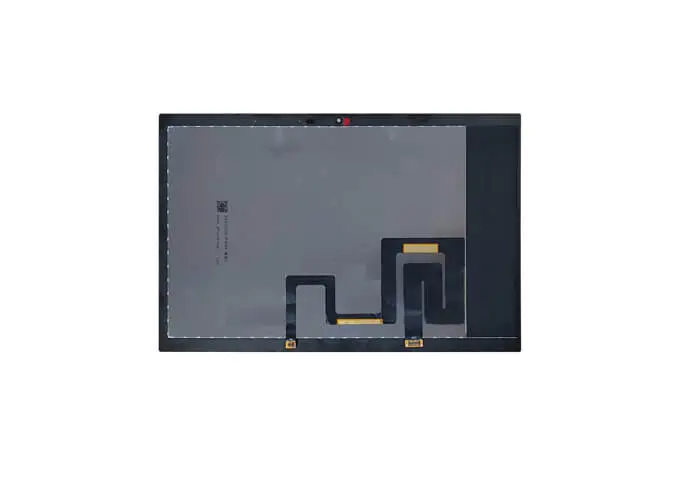

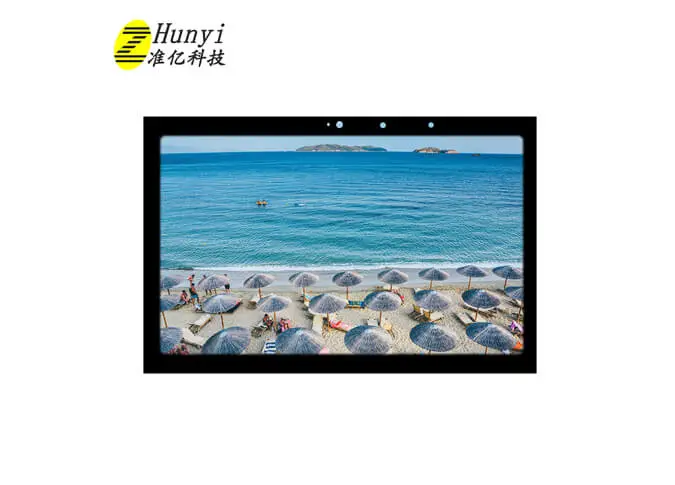

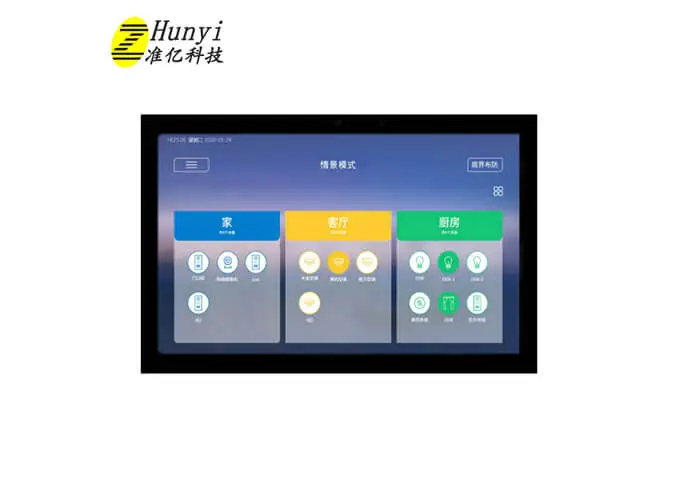

Overview of Z101028-ZC3 1200*2000 10.1 Inch Capacitive Touch LCD Screen 350 Nits MIPI I2C Interface

1

Z101028-ZC3 is a color active matrix thin film transistor (TFT) liquid crystal display (LCD) with capacitive touch panel, QVGA 1200*2000. This TFT touch display is built-in NT36523 LCD driver IC. This a-Si TFT LCD China touch panel module come with MIPI interface. Multi-point touch.

2

If you have special requirement, like drive IC, interface, FPC, touch panel, backlight, brightness, color, etc, as a custom LCD display supplier, we can also customize for you.

3

As a LCD display module factory, our factory carry out ISO 9001: 2015 and IATF16949: 2016 quality standard system strictly, all the LCD display passed ROHS, REACH Certification.

4

This 10.36 inch LCD touch screen is widely used in medical, visual doorbell, vending, learning mechine, ventilator, oscilloscope, kitchen, household appliance, smart home, industry, handheld, outdoor, E-bike, Vehicle, projector, 3D printer, audio device, robot, electric scale, navigation, dashboard, elevator advertising, laptop, HMI, education, etc.

General Specifications 1200*2000 10.1 Inch Capacitive Touch LCD Screen 350 Nits MIPI I2C Interface


No.

Item

Specification

Unit

1

Display Size (Diagonal)

10.36inch

-

2

Display Resolution

1200 (H) × RGB × 2000 (V)

pixels

3

Pixel Pitch

0.1128 (H) × 0.1128 (V)

um

4

TLCM Outline Dimension

(Without FPC)

CTP=159.30 (W) ×245.00 (H) ×2.6~2.8 (T)

mm

5

LCD Outline Dimension

139.36 (W) × 233.3 (H) × 0.4/0.5 (T)

mm

6

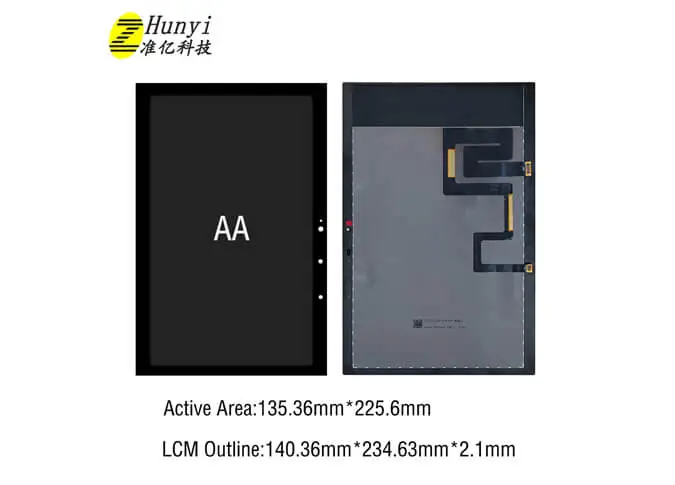

LCD Active Area

135.36 (W) × 225.60 (H)

mm

7

View Direction (Gray Inversion)

FREE

-

8

Driver IC

NT36523

-

9

Pixel Arrangement

RGB Vertical Stripe

-

10

Display Mode

Normal Black

-

11

Pixel driving Element

a-Si TFT

-

12

LCD Transmittance

Typ.: 3.9% Min: 3.5%

-

13

LCD Contrast Ratio

Typ.: 1350 Min: 1200

-

14

FPC Version

Z101028-P40H V2

-

15

Interface

MIPI

-

16

Operating Temperature

-15°C~ 60°C

-

17

Storage Temperature

-20°C~ 70°C

-

18

Backlight Arrangement

LED/9 Series 4 Parallel (36 lights in total)

-

19

Luminance

200

nit

20

Weight

0.189

kg


Interface Definition Description 1200*2000 10.1 Inch Capacitive Touch LCD Screen 350 Nits MIPI I2C Interface


PIN NO.

PIN DEF.

FUNCTION DESC.

1-2

LEDA

POWER SUPPLY+ FOR BACKLIGHT

3-6

LEDK

POWER SUPPLY- FOR BACKLIGHT CATHODE

7

NC

NC

8

LCD-RESET

RESET Pin1.8V

9-10

LCD-ID2/LCD-ID1

LCD module's manufacture ID.

11

LCD-IOVCC

POWER SUPPLY (1.8V)

12

TP-IOVCC

POWER SUPPLY (1.8V)

13

NC

NC

14

VSP

POWER SUPPLY (4.5-6V)

15

VSN

POWER SUPPLY (-4.5~-6V)

16-17

D3P-D3N

MIPI-DSI Data differential signal input pins. (Data lane 3)

18

GND

Ground

19-20

D2P-D2N

MIPI-DSI Data differential signal input pins. (Data lane 2)

21

GND

Ground

22-23

DCLKP-DCLKN

MIPI-DSI CLOCK differential signal input pin

24

GND

Ground

25-26

D1P-D1N

MIPI-DSI Data differential signal input pins. (Data lane 1)

27

GND

Ground

28-29

D0P-D0N

MIPI-DSI Data differential signal input pins. (Data lane 0)

30

GND

Ground

/

/

/

1-3

NC

NC

4

TP-I2C-SDA

TP-I2C SDA, TYP-1.8V

5

TP-I2C-SCL

TP-I2C CLK, TYP-1.8V

6-7

GND

Ground

8

TP-RESET

TP Reset Pin 1.8V

9

TP-INT

TP Interrupt Pin 1.8V

10

GND

Ground


Mechanical Drawing 1200*2000 10.1 Inch Capacitive Touch LCD Screen 350 Nits MIPI I2C Interface


Mechanical Drawing 1200*2000 10.1 Inch Capacitive Touch LCD Screen 350 Nits MIPI I2C Interface


Mechanical Drawing 1200*2000 10.1 Inch Capacitive Touch LCD Screen 350 Nits MIPI I2C Interface
