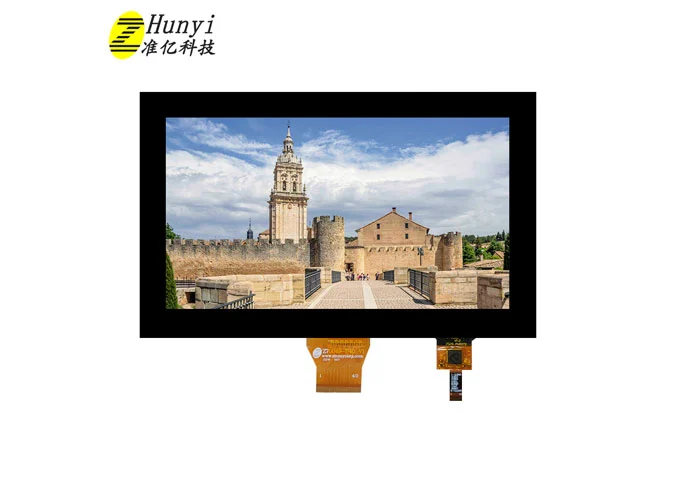

Z70069-ZC 5.5 Inch Touch Panel TFT LCD Display 600*1024 Double Driver IC RGB Interface 450 Nits

  • Size: 7 inch

  • Resolution: 1024*600

  • LCD Interface: RGB

  • Touch Interface: IIC

  • Touch Panel: Capacitive

  • Driver IC: EK79001HN+EK73215BCGA

  • Touch Controller: GT911

  • View Angle: IPS

  • Supply Type: Factory/Manufacturer

  • Certification: ISO9001, IATF16949, ROHS, REACH

Request A Quote
tft capacitive touchscreen
tft capacitive touchscreen
capacitive display
capacitive touch screen panel
capacitive touchscreen display
lcd capacitive touchscreen
tft capacitive screen
tft capacitive touch
capacitive lcd
capacitive lcd display
capacitive tft
capacitive touch lcd
capacitive touch screen price
capacitive touch tft
capacitive touchscreen lcd
raspberry capacitive touch screen
tft lcd capacitive touchscreen
lcd capacitive touch
lcd capacitive screen
custom capacitive touch panel
surface capacitive touch screen
tft capacitive touchscreen price
buy capacitive touch screen panel
tft capacitive

Overview of Z70069-ZC 5.5 Inch Touch Panel TFT LCD Display 600*1024 Double Driver IC RGB Interface 450 Nits

1

Z70069-ZC is a color active matrix thin film transistor (TFT) liquid crystal display (LCD) with capacitive touch panel, QVGA 1024*600.This TFT touch display come with EK79001HN+EK73215BCGA LCD driver IC and GT911 controller.This a-Si TFT LCD touch module come with RGB and I2C interface.



2

If you have special requirement,like driver IC, interface,FPC, touch panel, backlight ,brightness,color etc, we can also customize for you.


3

Our factory carry out ISO 9001:2015 and IATF16949: 2016 quality standard system strictly, all the lcd display passed ROHS, REACH Certification.


4

The 7 inch touch screen display is widely used in  Automotive, Electronic textbook, Video doorbell, home system,personal assistant, industrial control, fitness tracker, electronic POS, QR code,smart home, retail kiosks, digital signage, consumer electronics ect.


General Specifications 5.5 Inch Touch Panel TFT LCD Display 600*1024 Double Driver IC RGB Interface 450 Nits

No.

Item

Specification

Unit

1

Display Size (Diagonal)

7.0

inch

2

Display Resolution

1024(H）× RGB × 600（V）

pixels

3

Pixel Pitch

50.2(H）× 143.2（V）

um

4

LCM Outline Dimension

(Without FPC）

163.7 (W) ×96.9 (H) ×2.59 (T)

mm

5

LCD Outline Dimension

162.2 (W) × 95.7 (H) × 1.0 (T)

mm

6

TLCM Outline Dimension

(Without FPC）

164 (W) ×99 (H) ×4.34 (T)

mm

7

LCD Active Area

154.21（W）×85.92（H）

mm

8

View Direction (Gray Inversion)

FULL VIEW

-

9

Driver IC

EK79001HN+EK73215BCGA/

HX8282-A11+HX8696-A01

-

10

Pixel Arrangement

RGB-Stripe

-

11

Display Mode

Normal Black

-

12

Pixel driving Element

a-Si TFT

-

13

LCD Transmittance

Typ.: 5.0%  Min:4.8%

-

14

LCD Contrast Ratio

Typ.: 800

-

15

FPC Version

Z70042-HB2509-R V1

-

16

Interface

RGB

-

17

Operating Temperature

-20°C~ 70°C

-

18

Storage Temperature

-30°C~ 80°C

-

19

Backlight Arrangement

LED/3 Series 10 Parallel (30 lights in total)

-

20

Luminance

450

nit

21

Weight

TBD

kg


Interface Definition Description 5.5 Inch Touch Panel TFT LCD Display 600*1024 Double Driver IC RGB Interface 450 Nits


2.1 LCM

PIN NO.

PIN DEF.

FUNCTION DESC.

1-2

LEDA

POWER SUPPLY+ FOR BACKLIGHT ANODE

3-4

LEDK

POWER SUPPLY- FOR BACKLIGHT CATHODE

5

GND

Ground

6

VCOM

Common Voltage

7

DVDD

POWER  SUPPLY（3.3V）

8

MODE

DE / HV mode select for TTL mode.

9

DE

Data Enable

10

VSD

Vertical synchronize Signal

11

HSD

Horizontal synchronize Signal

12-19

B7-B0

Data bus

20-27

G7-G0

Data bus

28-35

R7-R0

Data bus

36

GND

Ground

37

DLCK

Pixel Clock

38

GND

Ground

39

SHLR

Source Right or Left sequence

40

UPDN

Gate Up or Down scan control

41

VDDG

Gate ON Voltage (18V)

42

VEEG

Gate OFF Voltage (-6V)

43

AVDD

Power for Analog Circuit (9.6V)

44

RSTB

LCM  RESET  PIN (3.3V)

45

NC

No Connection

46

VCOM

Common Voltage

47

DITH

Dithering Function

48

GND

Ground

49-50

NC

No Connection

RESET voltage should be consistent with VDDI voltage, or there probably is black screen fault when power on.

2.2 TP PIN

PIN NO.

PIN DEF.

FUNCTION DESC.

1

TP_RESET

TP  RESET  PIN

2

TP_VDD

TP  POWER  SUPPLY（3.3V）

3

GND

Ground

4

TP_INT

TP  Interrupt  PIN

5

TP_SDA

TP  I2C data (SDA) data input (MOSI)

6

TP_SCL

TP  I2C clock (SCL) clock (SCLK)
