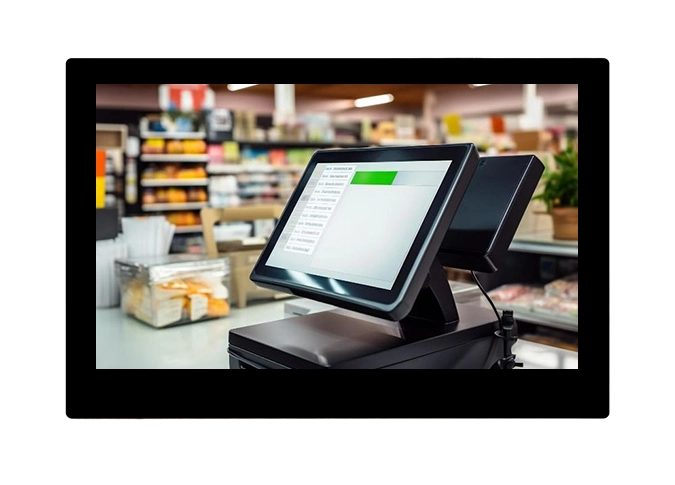

Z185001 18.5 Inch 1920x1080 LVDS LCD Screen with Hight Brightness 1000cd/m2

  • Size:18.5"

  • Resolution:1920*1080

  • Interface:LVDS

  • View angle: IPS

  • Supply Type: Factory/Manufacturer

  • Certification:ISO9001,IATF16949,ROHS,REACH

Request A Quote
tft lcd panel
tft lcd panel
tft lcd screen
display lcd tft
display tft lcd
lcd display tft

Overview of Z185001 18.5 Inch 1920x1080 LVDS LCD Screen with Hight Brightness 1000cd/m2

1

Z185001 is a color active matrix thin film transistor (TFT) liquid crystal display (LCD) with 1920*1080 resolution. IPS(In-plane Switching) technique make this 18.5" LCD module have a wider view angle.This a-Si TFT LCD come with LVDS interface.1000 cd/m2 luminance.

2

If you have special requirement,like driver IC,interface,FPC,touch panel,backlight etc, we can also customize for you.

3

Our factory carry out ISO 9001:2015 and IATF16949: 2016 quality standard system strictly, all the lcd display passed ROHS, REACH Certification.

4

The 18.5" LCD screen is widely used on computer, moinitor, laptop,commerical device, supermarket,monitor,tablet,QR code,smart home, retail kiosks, consumer electronics, Advertising, Vending, Education, aviation and aerospace,notice ect.

General Specifications Z185001 18.5 Inch 1920x1080 LVDS LCD Screen with Hight Brightness 1000cd/m2


ITEMS


Unit

SPECIFICATIONS

Screen Dingonal

[mm]

-

Active Area

[mm]

408.96（H） ×230.04（V）

Pixels H x V

-

1920 x 3(RGB)×1080

Pixels Pitch

[um]

213(per one triad) × 213

Pixels Arrangement

-

R.G.B. Vertical Stripe

Display Mode

-

VA Mode,Nomrally Black

White Luminance(Center)

[cd/m²]

1000（Typ.）

Contrast Ratio

-

1200 （Typ.）

Response Time

[msec]

14ms (Typ.on/off)

Viewing Angle

[degree]

89/89/89/89

Outline Dimension

[mm]

430.6(H) x 254.6(V) x 9.8(D) (Typ.)

Electrical Interface

-

Dual Channel LVDS

Support Color


16.7M colors

Surface Treatment


Haze:25%


Temperature

Range Operating

Storage(Shipping)



[oC]

[oC]



0 to +50℃

-20 to+60℃



LVDS Connector Z185001 18.5 Inch 1920x1080 LVDS LCD Screen with Hight Brightness 1000cd/m2


Pin NoSymbolDescriptionPin NOSymbolDescription
1RXO0-Negative Transmission data of Pixel 0(ODD)16RXE1+Positive Transmission data of Pixel 1 (EVEN)
2RXO0+Positive Transmission data of Pixel 0(ODD)17GNGPower Ground
3RXO1-Negative Transmission data of Pixel 1 (ODD)18RXE2-Negative Transmission data of Pixel 2 (EVEN)
4RXO1+Positive Transmission data of Pixel 1 (ODD)19RXE2+Positive Transmission data of Pixel 2 (EVEN)
5RXO2-Negative Transmission data of Pixel 2 (ODD)20RXEC-Negative Transmission Clock (EVEN)
6RXO2+Positive Transmission data of Pixel 2(ODD)21RXEC+Positive Transmission Clock (EVEN)
7GNDPower Ground22RXE3-Negative Transmission data of Pixel 3(EVEN)
8RXOC-Negative Transmission Clock (ODD)23RXE3+Positive Transmission data of Pixel 3 (EVEN)
9RXOC+Positive Transmission Clock (ODD)24GNDPower Ground
10RXO3-Negative Transmission data of Pixel 3(ODD)25NCNo.Connection
11RXO3+Positive Transmission data of Pixel 3 (ODD)26NCNo.Connection
12RXE0-Negative Transmission data of Pixel 0 (EVEN)27NCNo.Connection
13RXE0+Positive Transmission data of Pixel 0 (EVEN)28VDDPower Supply:+5V
14GNDPower Ground29VDD
15RXE1-1Negative Transmission data of Pixel 1 (EVEN)30VDD
