Z101080 10.1 Inch 1280*800 TFT LCD Screen 350 Nits LVDS Interface

  • Size: 10.1 inch

  • Resolution: 1280*800

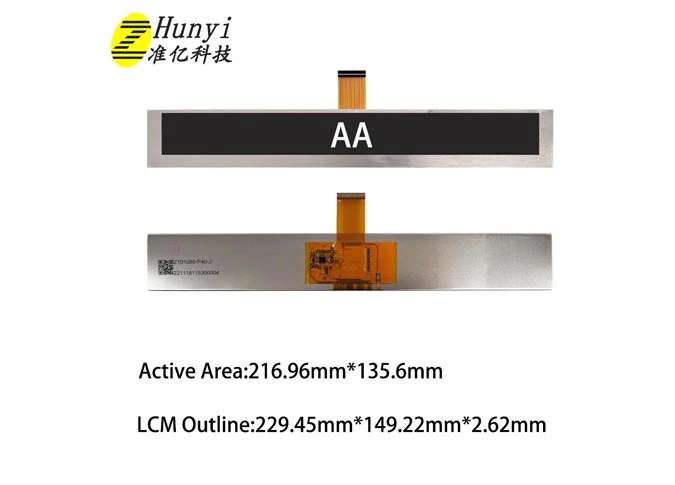

  • Active Area: 216.96*135.6mm

  • Interface: LVDS

  • View Angle: IPS

  • Brightness: 350 cd/m²

  • Touch Panel: Support CTP/RTP

  • Supply Type: Factory/Manufacturer

  • Certification: ISO9001, IATF16949, ROHS, REACH

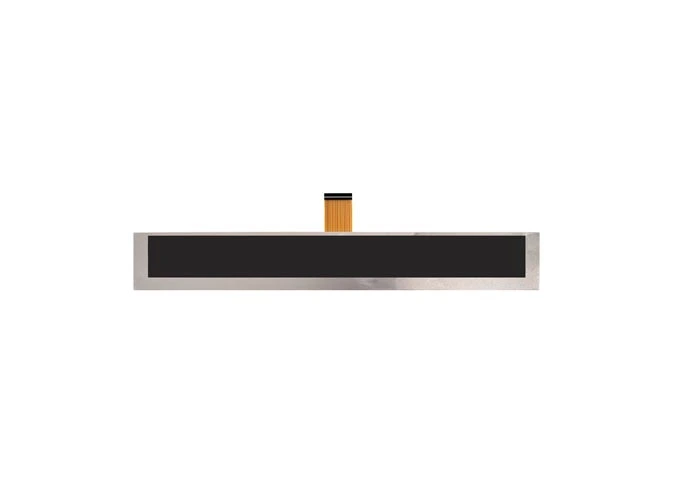

manufacturer 10.1 inch tft lcd screen
manufacturer 10.1 inch tft lcd screen

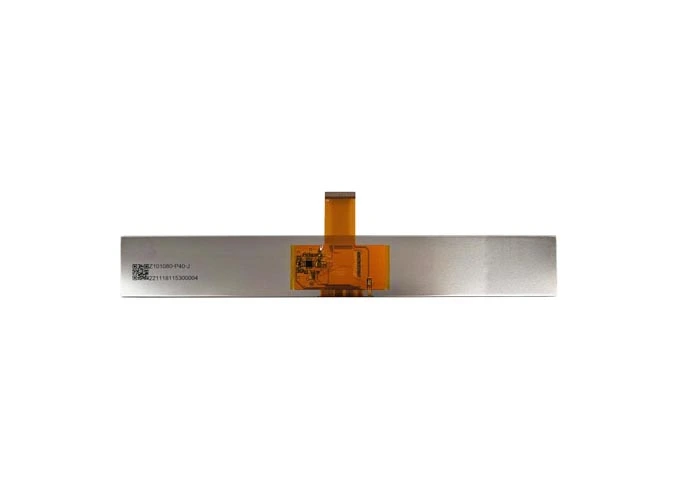

wholesale a 10.1 inch tft lcd screen

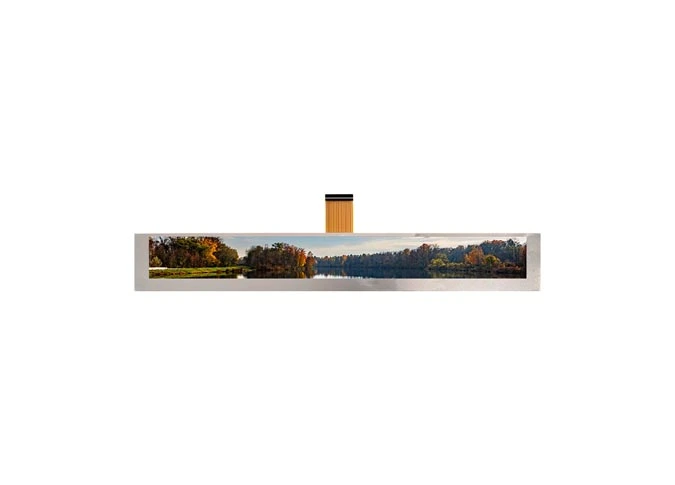

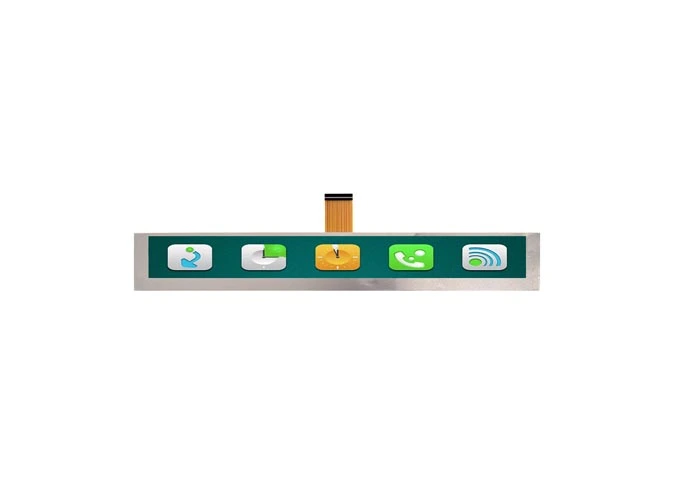

10.1 inch tft lcd screen

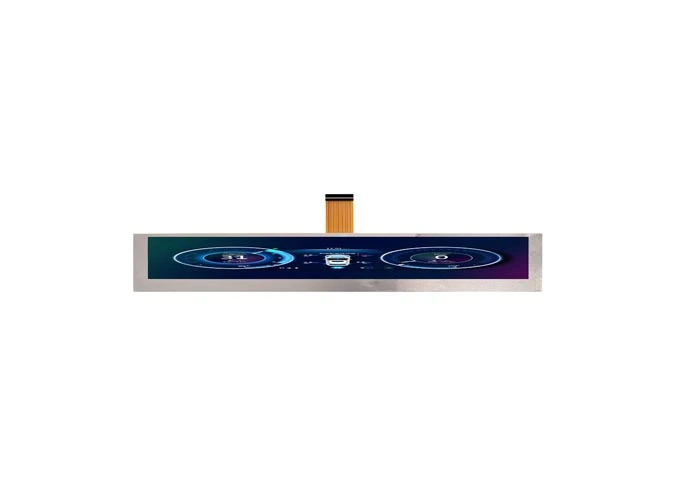

10.1 inch tft lcd screen wholesale

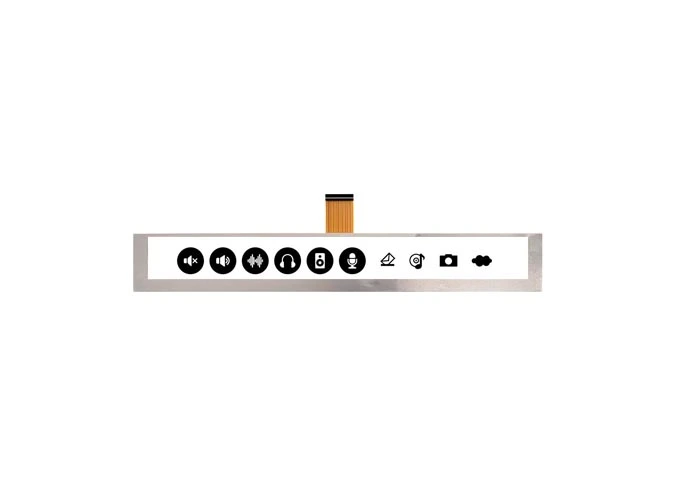

10.1 inch tft lcd screen manufacturer

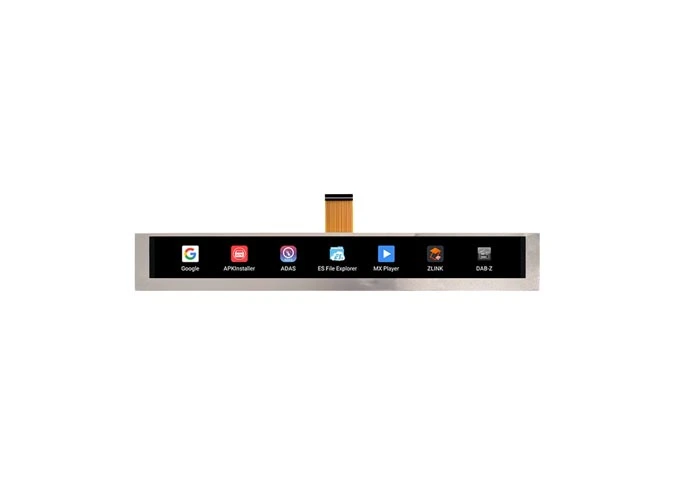

10.1 inch tft lcd screen bulk
10.1 inch tft lcd screen company
company 10.1 inch tft lcd screen

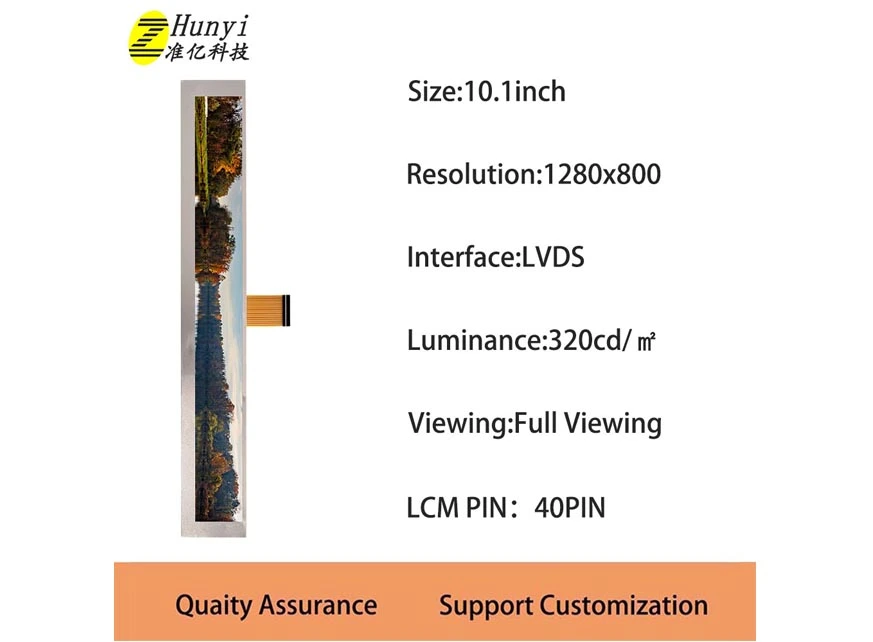

bulk a 10.1 inch tft lcd screen
bulk 10.1 inch tft lcd screen

Overview of Z101080 10.1 Inch 1280*800 TFT LCD Screen 350 Nits LVDS Interface

1

Z101080 is a color active matrix thin film transistor (TFT) liquid crystal display (LCD) with 1280*800 resolution. IPS (In-plane Switching) technique make this 10.1" IPS LCD module have a wider view angle. This LCD display is built-in NT36523 driver IC. This a-Si TFT LCD module come with LVDS interface, 350cd/m² brightness.

2

If you have special requirements, like drive IC, interface, FPC, touch panel, brightness, color, backlight, touch panel, etc, we can provide custom TFT displays for you.

3

As one of the LCD display manufacturers in China, our factory carry out ISO 9001: 2015 and IATF16949: 2016 quality standard system strictly, all the LCD display passed ROHS, REACH Certification.

4

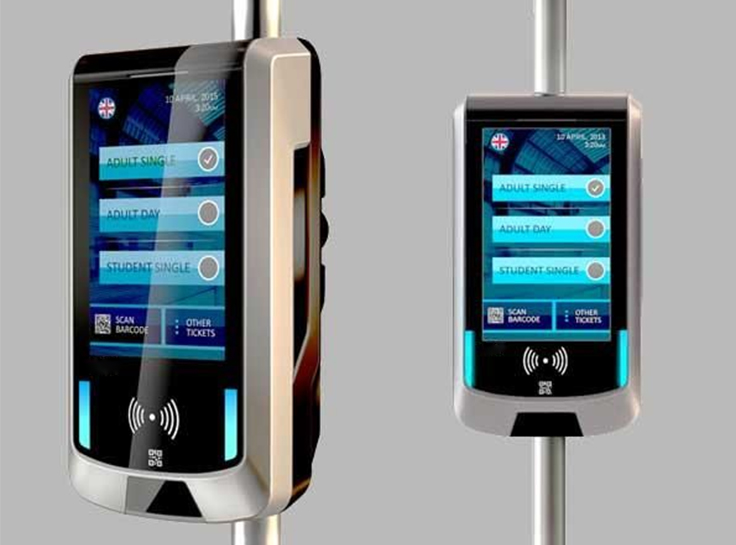

The 10.1 inch LCD screen is widely used in Medical, visual doorbell, vending, learning mechine, ventilator, oscilloscope, kitchen, household appliance, smart home, industry, handheld, outdoor, E-bike, Vehicle, projector, 3D printer, audio device, robot, electric scale, navigation, dashboard, elevator advertising, laptop, HMI, education, etc.

Specifications of 10.1 Inch 1280*800 TFT LCD Screen 350 Nits LVDS Interface


No.

Item

Specification

Unit

1

Display Size (Diagonal)

10.1

inch

2

Display Resolution

1280 (H) × RGB × 800 (V)

pixels

3

Pixel Pitch

56.5 (H) × 169.5 (V)

um

4

LCM Outline Dimension

(Without FPC)

229.45 (W) ×149.22 (H) ×2.62 (T)

mm

5

LCD Active Area

216.96 (W) ×135.6 (H)

mm

6

View Direction (Gray Inversion)

FULL VIEW

-

7

Pixel Arrangement

RGB-Stripe

-

8

Display Mode

Normal Black

-

9

Pixel Driving Element

a-Si TFT

-

10

LCD Transmittance

Typ.: TBD

-

11

LCD Contrast Ratio

Typ.: 1000

-

12

FPC Version

Z101080-P40 V1

-

13

Interface

LVDS

-

14

Operating Temperature

0°C~ 50°C

-

15

Storage Temperature

-20°C~ 60°C

-

16

Backlight Arrangement

LED/3 Series 13 Parallel (39 lights in total)

-

17

Luminance

Typ.: 320

nit

18

Weight

TBD

kg


Interface Definition Description of 10.1 Inch 1280*800 TFT LCD Screen 350 Nits LVDS Interface


PIN NO.

PIN DEF.

FUNCTION DESC.

1

NC

Non Connection

2-4

VDDIN

Power supply VDDIN=3.3V (Typ.)

5

NC

Non Connection

6-7

GND

GROUND

8

RIN0-

LVDS Negative data signal (-)

9

RIN0+

LVDS Positive data signal (+)

10

GND

GROUND

11

RIN1-

LVDS Negative data signal (-)

12

RIN1+

LVDS Positive data signal (+)

13

GND

GROUND

14

RIN2-

LVDS Negative data signal (-)

15

RIN2+

LVDS Positive data signal (+)

16

GND

GROUND

17

LVDS_CLK-

LVDS Negative CLK signal (-)

18

LVDS_CLK+

LVDS Positive CLK signal (+)

19

GND

GROUND

20

RIN3-

LVDS Negative data signal (-)

21

RIN3+

LVDS Positive data signal (+)

22

GND

GROUND

23-24

NC

Non Connection

25

GND

GROUND

26-27

NC

Non Connection

28

GND

GROUND

29-30

NC

Non Connection

31-33

LEDK

LED Cathode

34-37

NC

Non Connection

38-40

LEDA

LED Anode

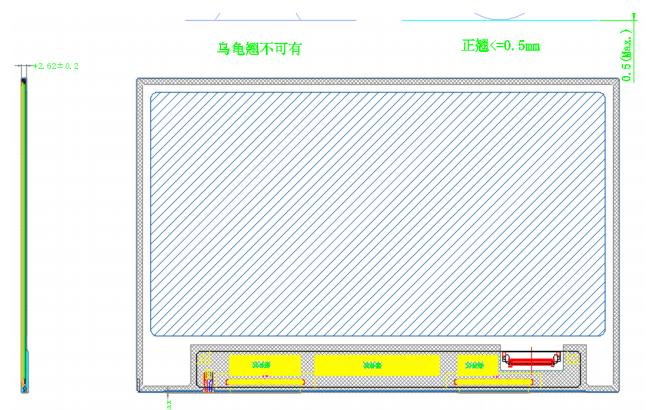

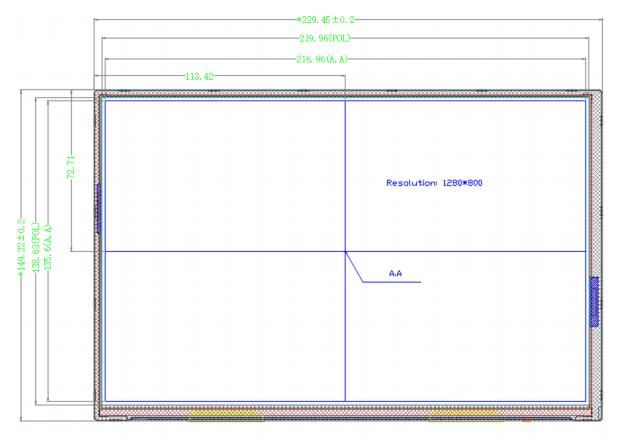

Mechanical Drawing of 10.1 Inch 1280*800 TFT LCD Screen 350 Nits LVDS Interface


Mechanical Drawing of 10.1 Inch 1280*800 TFT LCD Screen 350 Nits LVDS Interface

Mechanical Drawing of 10.1 Inch 1280*800 TFT LCD Screen 350 Nits LVDS Interface
